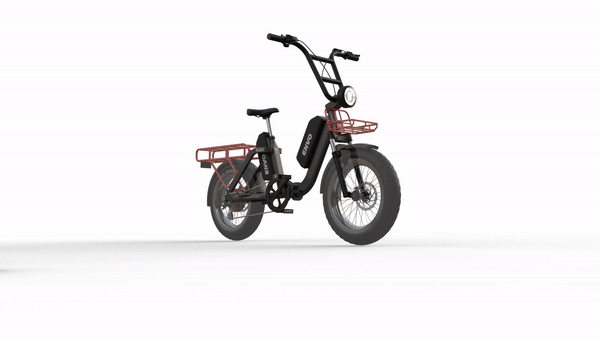

ENVO Flex Overland
Engineered in Canada, the Flex Overland is a sturdy off-roading and cargo fat tire eBike with foldable aluminum unisex and unisize step-thru design and dual battery option. The proprietary rear hub delivers the up to 1000W power, allowing you to climb the sharpest of hills and carry your cargo effortlessly.
ENVO Flex allows you the FLEXibility to upgrade and change your eBike as your requirements change over time. The Flex Overland can be easily converted into the Flex Snowbike with the help of modular design components, allowing you the utility of two products on one platform. Using ENVO Flex, you can indulge in adventures throughout the year on trails and on snow.

32KG (70.5lbs)
Total Weight
1000W
Max Power
50Km/h
Max Speed
180Kg
Payload Capacity

FRAME

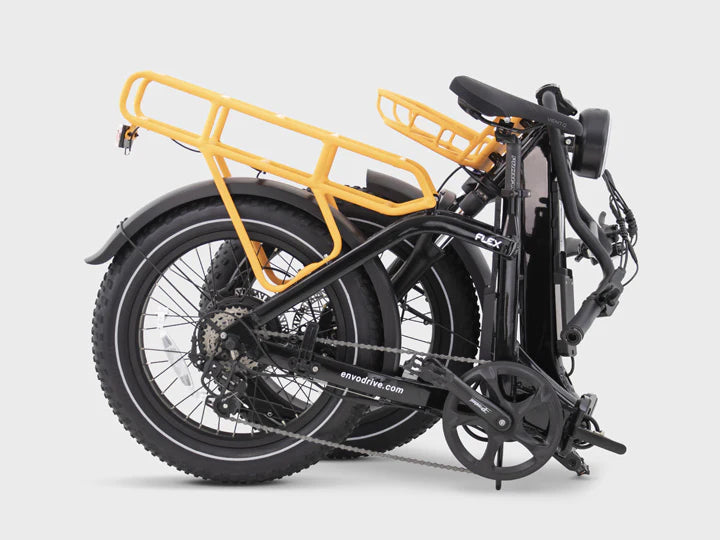

The Flex is built with a solid, lightweight, foldable and unisex hydro- formed aluminum alloy frame suitable for people from 4’11’’all the way to 6 5” rider. It is capable of supporting up to 400lbs of payload and offers astep-thru design, which makes it easy for the rider to get on and off. The frame is specially designed to minimize all the vibrations and noise from the drive-system, the right wheelbase for a high speed and a pleasurable ride on both paved and unpaved roads.

BATTERY PACK
The ENVO Battery powering the Flex Overland is a lizard styled, super lightweight, down tube mounting Li-Ion pack in a stylish thin ABS case with an auto-connect socket, a charge indicator and security lock. The battery is removable and can reach a range of up to 100 km per charge on pedal assist level 1. The battery can be charged on or off the bike frame using the little portable CC-CV smart Li-Ion battery charger. The ENVO Battery is an A-grade branded Li-Ion battery, comprising of LG or Panasonic Li-Ion cells and a BMS that avoids battery from overcharging, overloading, and other hazardous activities, thereby increasing both cyclic and calendar life of the battery. Battery cells have been selected for best operating in freezing temperatures.

E-ASSIST SYSTEM
The ENVO Flex is equipped with an advanced pedal-assist sensor with an optimized torque emulation software. The advanced torque emulating Pedal Assist Sensor (PAS) signals the controller to run the motor between 5 levels of pedal assist, providing a boost to your pedaling depending on the level of assistance you select while riding. The ENVO Flex is equipped with an on-demand thumb throttle that gives you an extra boost which activates the motor proportionally to the twist, does not matter if you are pedaling, to give you a fully electric ride in case you cannot pedal or need an instant acceleration or uphill push.

GEARED MOTOR HUB
ENVO FLEX Overland is equipped with a sealed, powerful, upkeep free, geared hub motor that offers 1000W power and 100Nm torque. Our motors are designed efficiently and hence are lighter than most powered geared hub motors in Canada, yet they deliver high torque and efficiency. These ENVO motors are developed for over 20,000Km maintenance-free ride.

ADJUSTABLE STEM
The FLEX Overland comes with an adjustable high rise handlebar, this lets the rider do the ergonomic fine tuning allowing them to choose efficient pedaling position.

TIRES
Flex Overland comes with 20inch off-road style fat tires. These fat tires are cushion enough to improve ride comfort, dynamic maneuverability, and handling in different terrains. Tires are fat and knobby enough for the best grip on wet cement, asphalt paved, dirt or gravel trails which creates minimum noise and drag for normal urban paved rides.

HYDRAULIC DISK BRAKE
Top of the line hydraulic disk brakes equipped with electric cut-off sensors provide more safety to the bike as well as the rider.

TRANSMISSION SYSTEM
Well-engineered 52T chain ring and 6 speed 11-32 teeth cassette transmission helps you overcome up to 25% grade when climbing a hill on gear 1 or 40km/h speed on gear 6 with gentle peddling.

-
Flex Overland Specifications
Electronics - Rear Hub
Battery 48V, 17.5Ah Controller 48V, 1000W Display LCD Display with speedometer, odometer, pedal-assist indicator, etc Hub Motor 1000W Lights Brake triggered Backlight Pedal Assist 5 Level Pedal assist Wiring Water Resistant Wiring
Mechanical Components
Brakes Hydraulic Disc Brake Brake Pad Material Ceramic Pad Brake Rotors 180mm Crank set 52T, 170mm crank Derailleur 8 Speed Fenders Front and Rear Frame 6061 Foldable Aluminum Frame Fork Suspension Fork Freewheel 11-32T Handlebar V Lowride Handlebar Racks Rear and Front Racks Saddle Ergonomic Saddle with suspension seat post -
Flex Overland Sizing Chart
-
Assembly Instructions and User Manual
