Front Hub Motor (350W)

Precio de venta$86.00 USD Precio normal$264.00 USD
Ahorra $178.00
Rim Size
Normalmente está listo en 24 horas

Front Hub Motor (350W)

24"

Local Pickup

Retiro disponible, normalmente está listo en 24 horas

1685 Ingleton Ave
Burnaby BC V5C 3V6
Canadá

+16044233381

Size Chart

Size Chart

Product Help

FAQs
Visit our FAQ page to find answers to eBike related questions

Customer Support
1685 Ingleton Ave, Burnaby, BC V5C 3V6
M: +1 (604) 423-3381
T: +1 (888) 229-2980

Contact
Want to get in touch with our teams? Visit our contact page to send us a message.

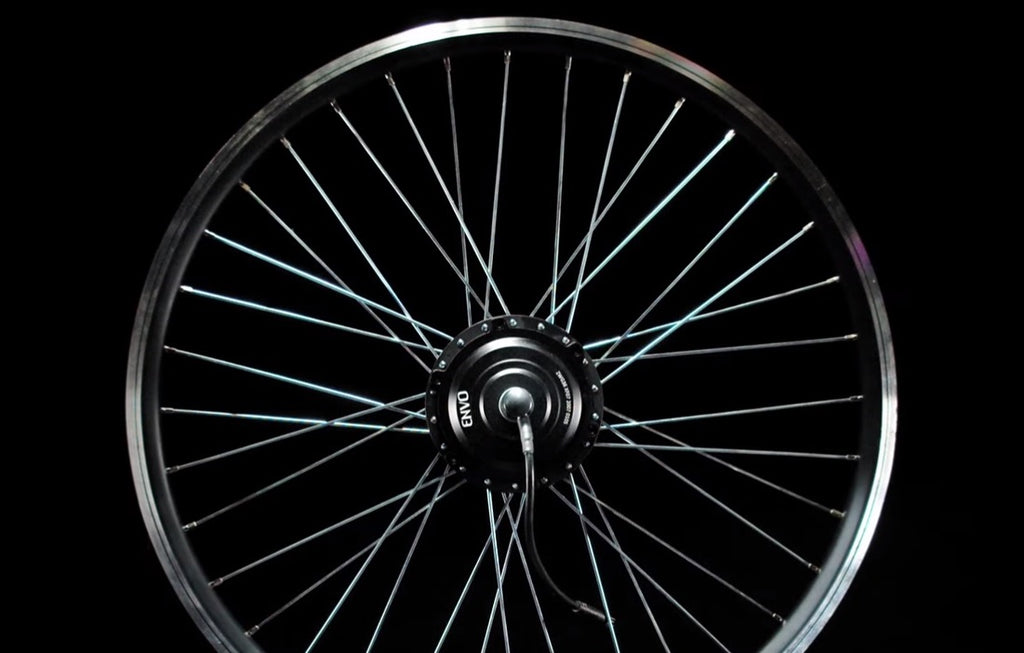

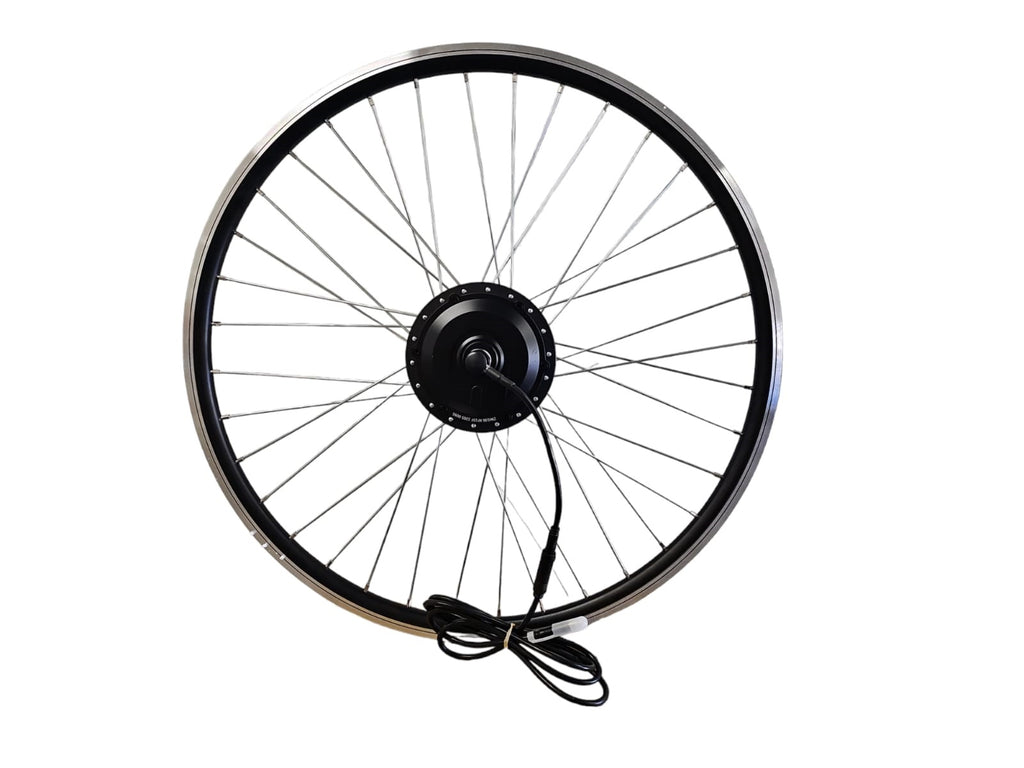

Available Rim Sizes:

  • 20''
  • 24''
  • 26''
  • 27.5''
  • 700C
  • 29''
  • 28''
  • No Rim

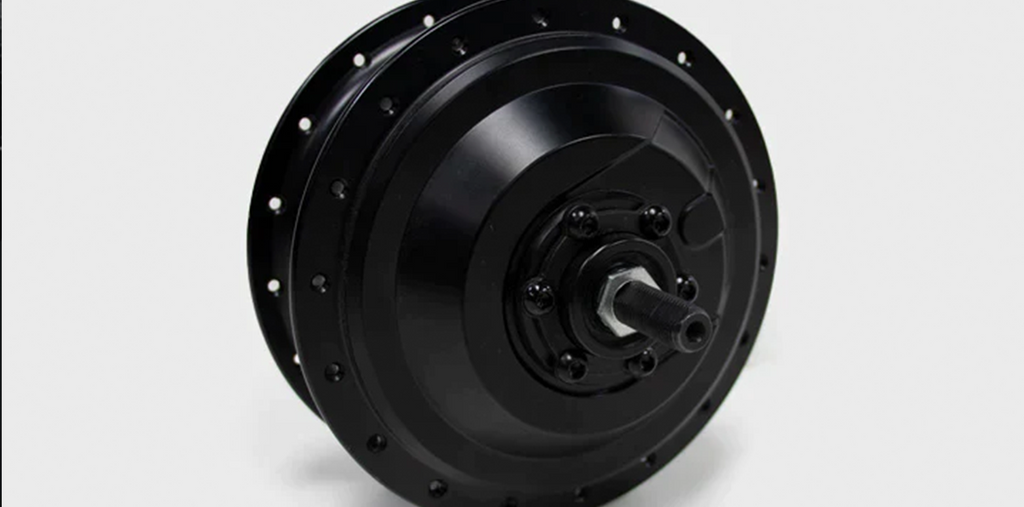

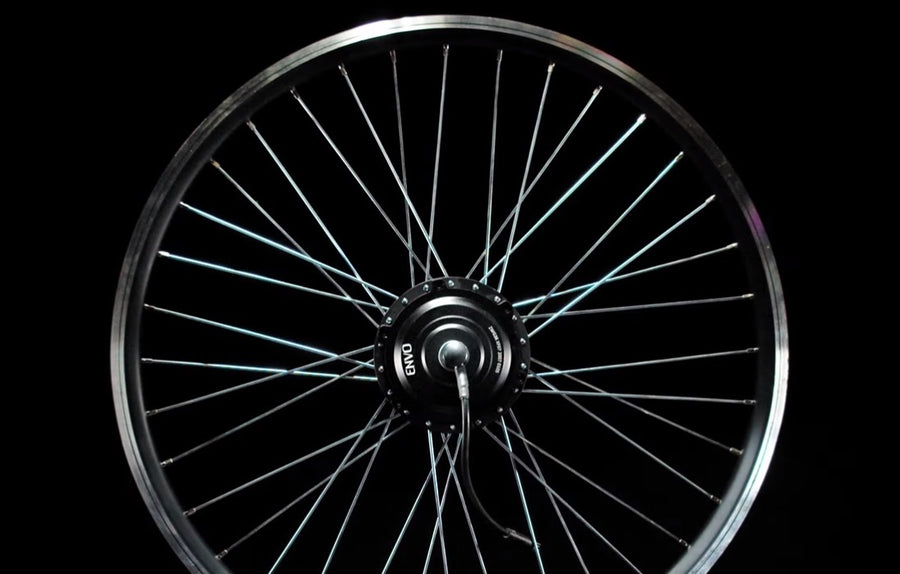

350W Nominal, 550W Max Power, 32km/h, front hub motor

350W Nominal, 550W Max Power, 32km/h, front hub motor, Small size with simple structure, light weight and long life, super power, high efficiency, beautiful, high speed motor with gear, drive is very free and fluent, best choice for Li-ion battery on e-bike.

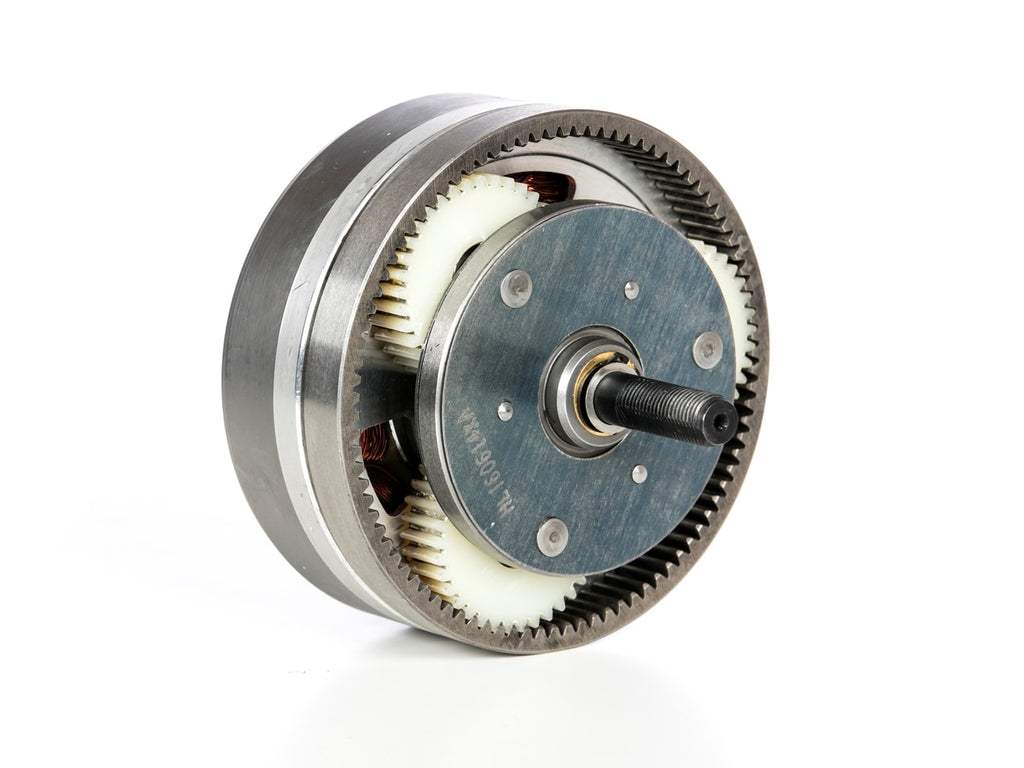

  • Motor Type: DC Brushless Geared Hub Motor
  • Motor Power: 550/350W Max/Nominal
  • Voltage: 36V
  • Max Torque: 60Nm @17A
  • Efficiency ≥80%
  • 36 Spokes
  • Flange for disc brake
  • Waterproof connector

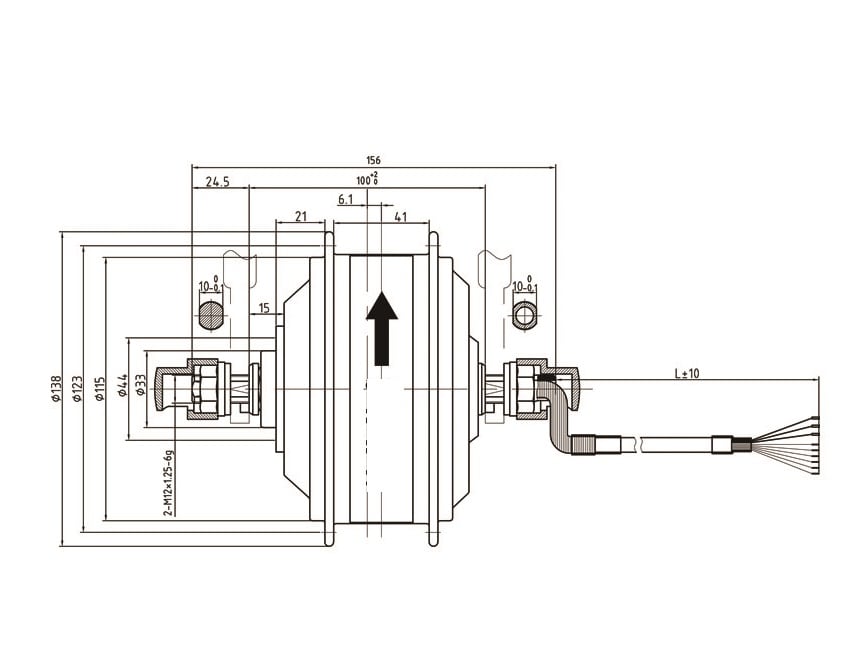

  • Axle=100mm, Diameter=128mm.
  • Weight=2.7kg
  • Phase angle 120 degree
  • Manufacturer: MXUS
  • CE, EN15194 certifications

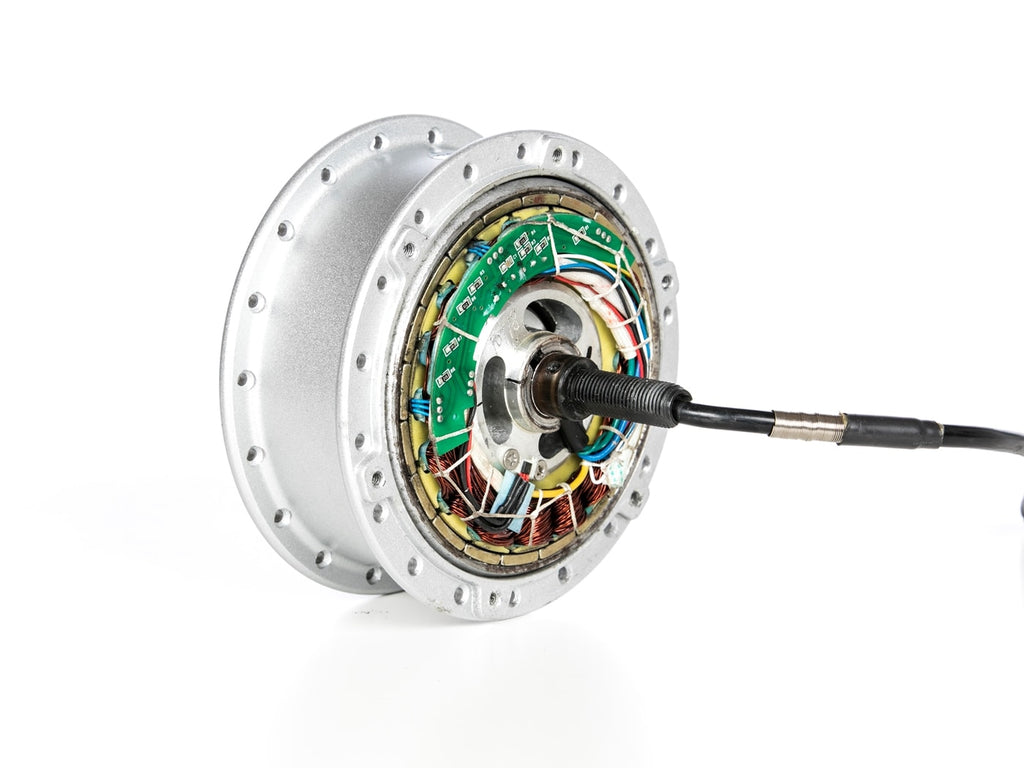

Front Hub Motor Material:

  • Wheel, A356 Aluminum
  • Magnet, 38SH
  • Wire(winding), QZ-3/155
  • Iron core, DW470
  • Bearing, C&U

    Customer Reviews

    Based on 1 review
    0%
    (0)
    100%
    (1)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    M
    MV
    If you need to get up hills get the more powerful one

    I’m 140lbs and it’s juuuuust gets me up hills. It’s good enough for me, and I’m about to move to Manitoba so I planned getting the less powerful one because I won’t need it there. Otherwise, this was a really good purchase. Communication with EBIKEBC was not great though. I left a couple messages asking for help with the pedal assist disc that doesn’t fit on my bike and haven’t been answered.
