ENVO SnowKart
Easy to Ride Snow E-Mobility for Daily Enjoyment and Family Adventure.
Please note:
- SnowKart comes with two batteries.

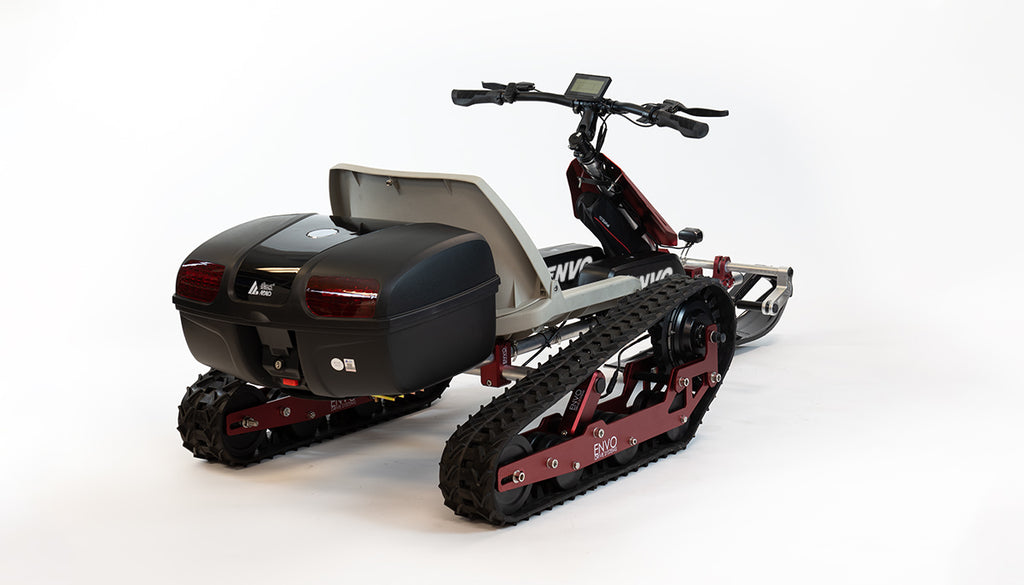

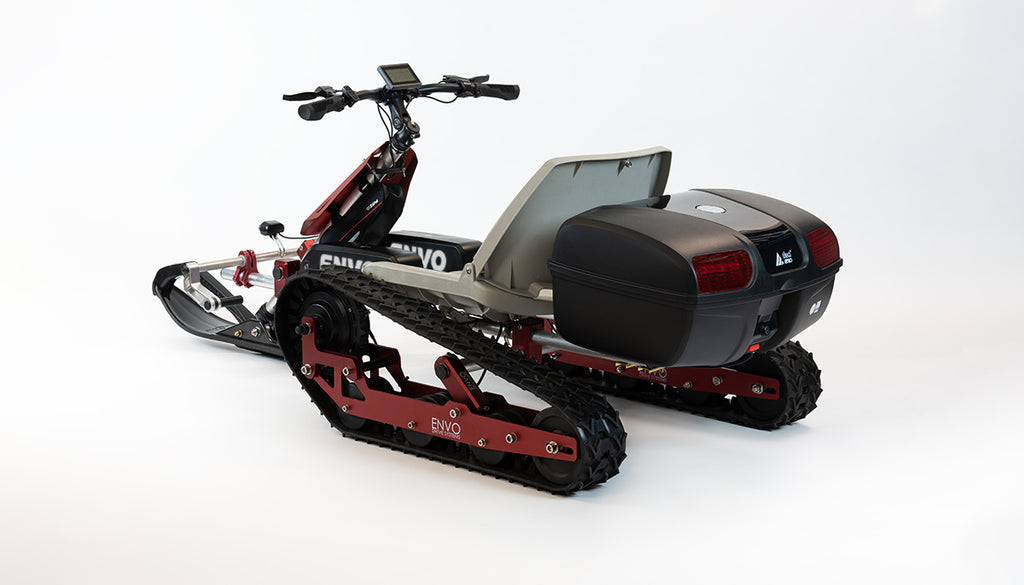

- SnowKart does not come with Tailbox. It is an add on accessory.
ENVO SnowKart
Local Pickup
1685 Ingleton Ave
Burnaby BC V5C 3V6
Canadá
Clean BC Rebate: Specialty Use Vehicle Incentive Program for BC Business Customers only*
Rebate upto $2,000.
Get Your Daily Dose of Excitement with the ENVO's High-Powered SnowKart.
The ENVO Snowkart is a workhorse that is ideal for everything from collecting firewood to full backwoods winter exploration. Very capable in all winter terrain including ice, hardpack, slush or powder. Now featuring a welded frame for added strength, torsional stiffness and better cornering performance.
2000 W
Max Power
120 Nm
Max Torque
20 Km/h
Max Speed
180 kg (400 lbs)
Towing Capacity
2 Hour
Range Per Charge
50 KG (110 lbs)
Total Weight

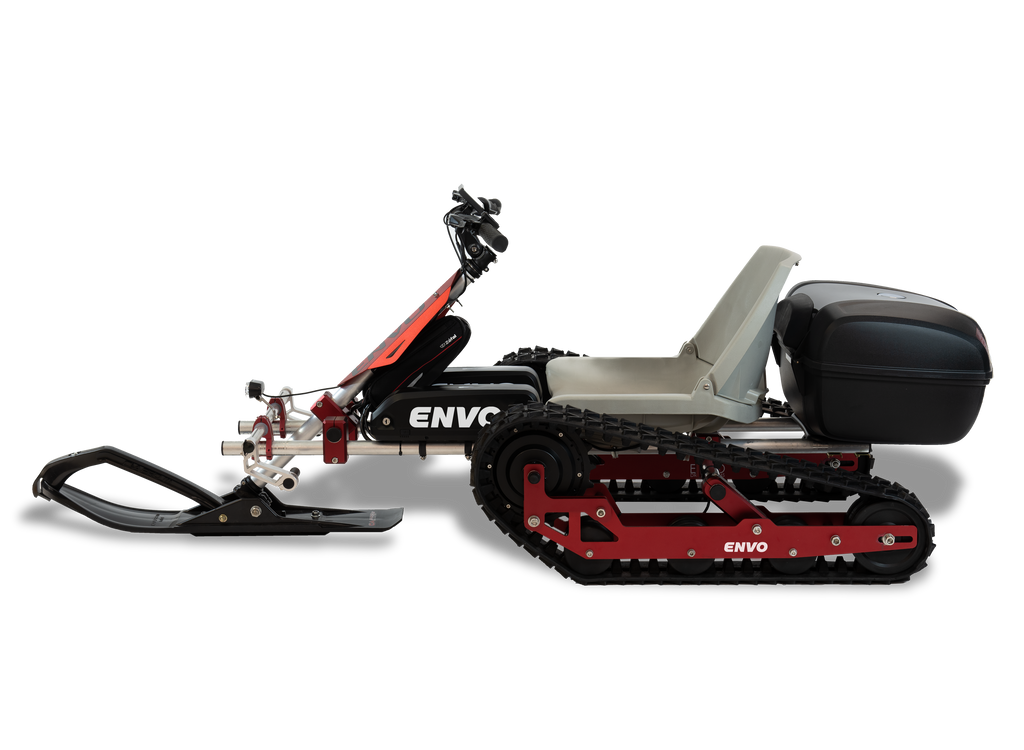

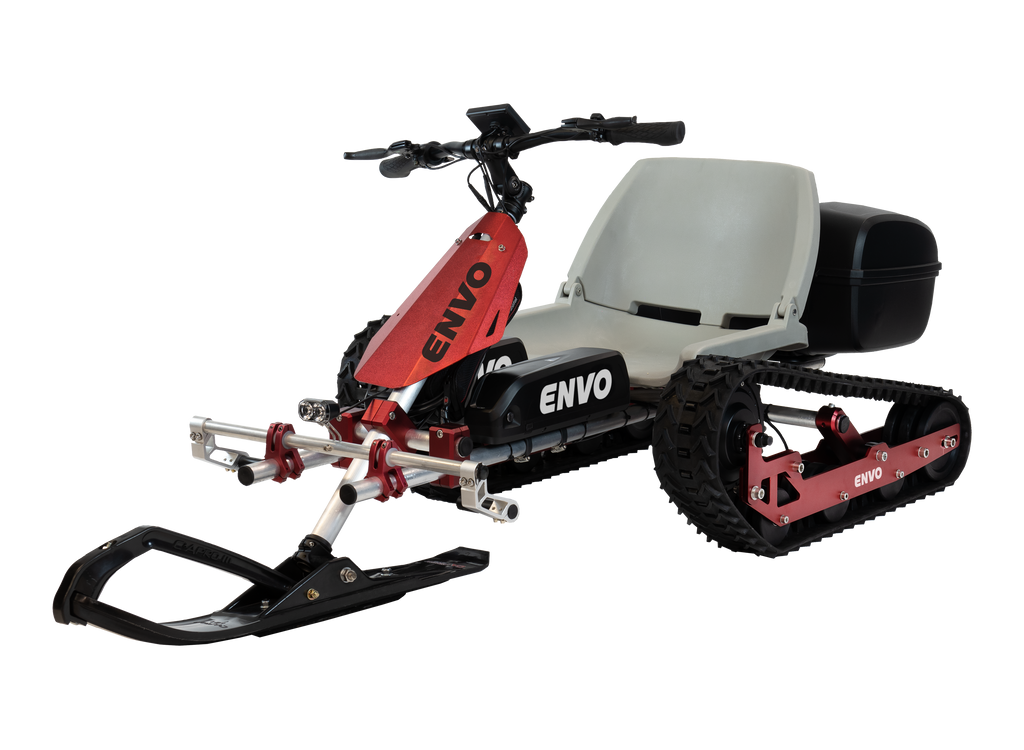

DESIGN
Compact design with easy DIY assembly practices for easy transportation or customize the build.
BOGIE
Adjustable, lockable fork with solid 30mm fork legs adds to high-speed stability and handling on trails and asphalt. It reduces the shocks to the frame and battery system and provides ultimate comfort.
SNOW TRACKS
The V shape knob rubber track creates great traction with almost any type of snow terrain, proven up to a 20% slope. It has a well-thought geometry, secure in track with minimized resistance and energy loss which can generate up to 100KGF (220lbs) of traction. Made from rubber and Kevlar reinforcement, It is relatively light, safe and easy to handle when it comes to adjustment or replacement.

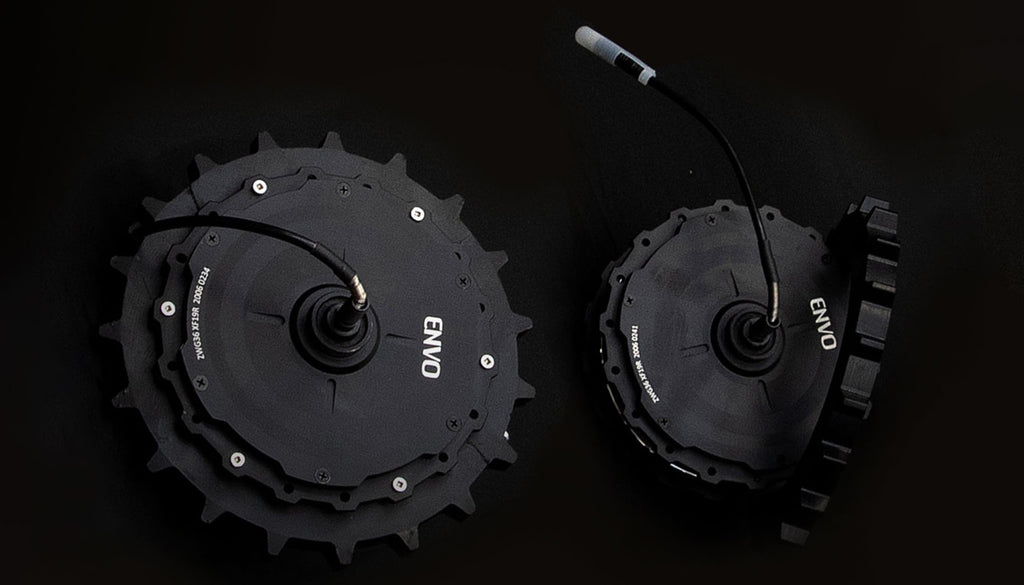

MOTOR
Adjustable, lockable fork with solid 30mm fork legs adds to high-speed stability and handling on trails and asphalt. It reduces the shocks to the frame and battery system and provides ultimate comfort. This motor is compact in size, has a straightforward design, is lightweight, and has a long lifespan. Additionally, it has a high power output, excellent efficiency, an aesthetically pleasing appearance, and can reach high speeds when used in combination with gears. Furthermore, the motor provides a smooth and unencumbered driving experience.
BATTERY
Lizard style 48V/17.5Ah Li-ion battery pack featured with Panasonic/LG cells with a working temperature range of -20 Celsius, provides up to 2000W of output power and 840Wh of energy with the option to double by using 2 packs is enough for up to 2 hours full throttle continuous ride on pedal assist.

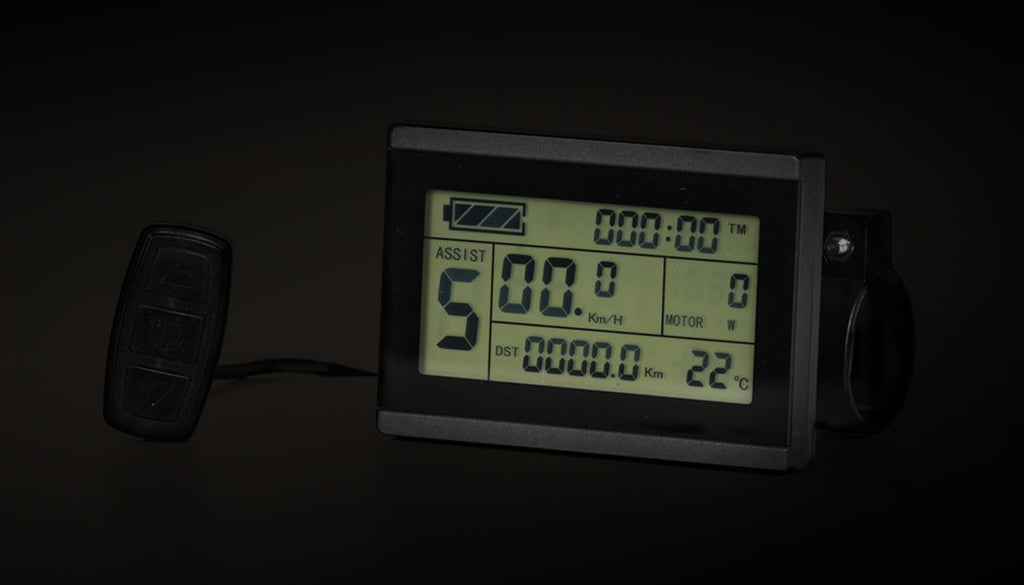

CONTROL SYSTEM

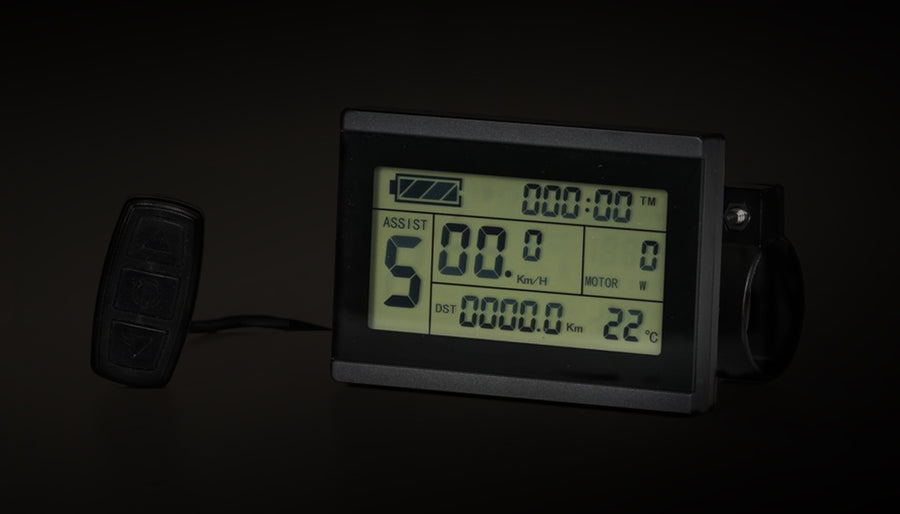

LCD3 meter provides you with a variety of functions such as vehicle controls and vehicle status digitized displays to meet the trip demands.
ENVO SnowKart Other Features

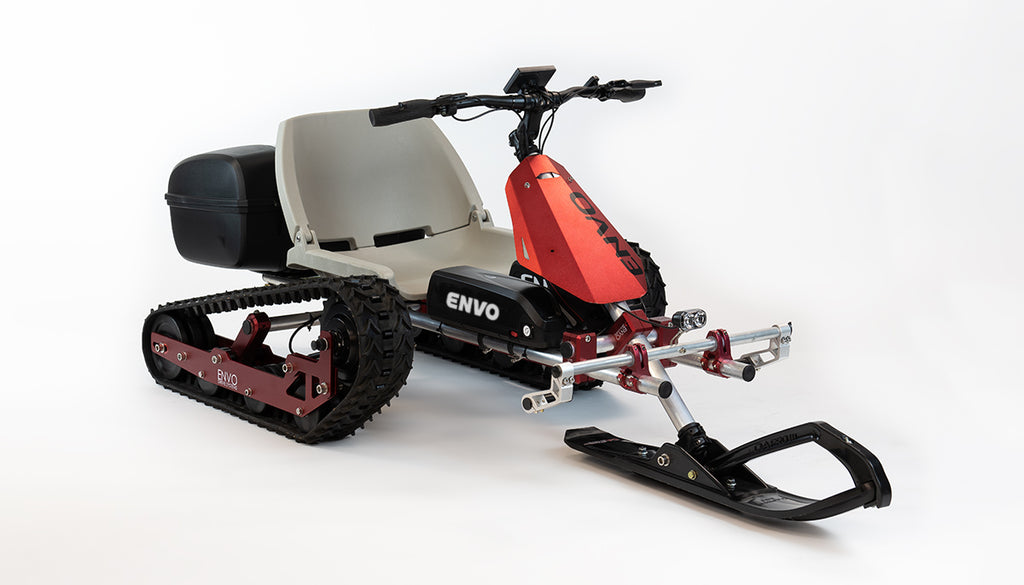

SKI
Skis and the fully customizable/ adjustable stem assembly attached to the front of the snowkart ensures easy gliding and accurate and sharp turns on snow and ice. It has great floatation on the uneven snow surface. It can be used on snow, as well as off-road on ice.

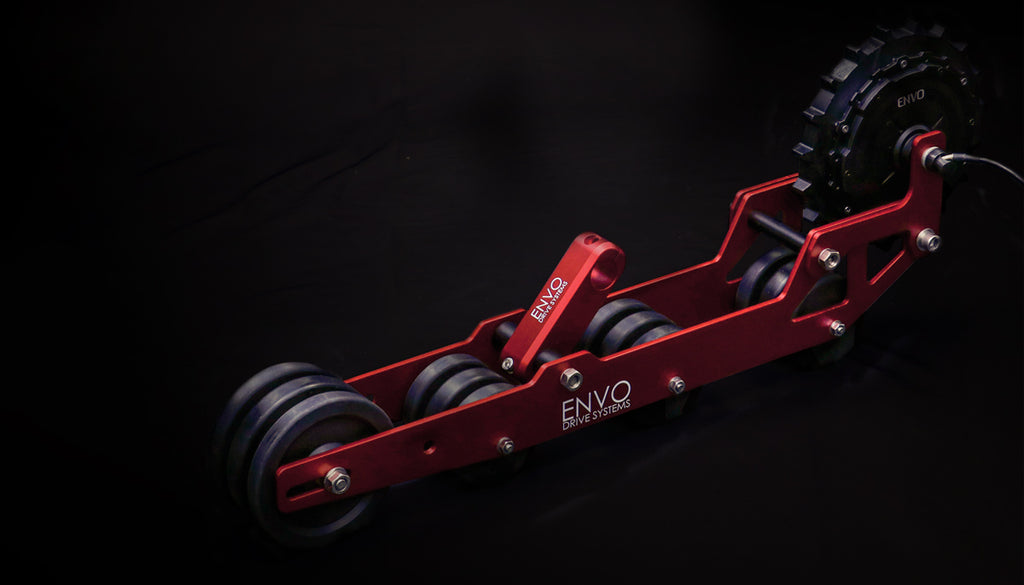

GUIDE ROLLERS
Guide rollers that are made of ultra-high molecular weight polyethylene material, which is strong, light, reliable and maintenance-free with the help of sealed high precision ball bearings.

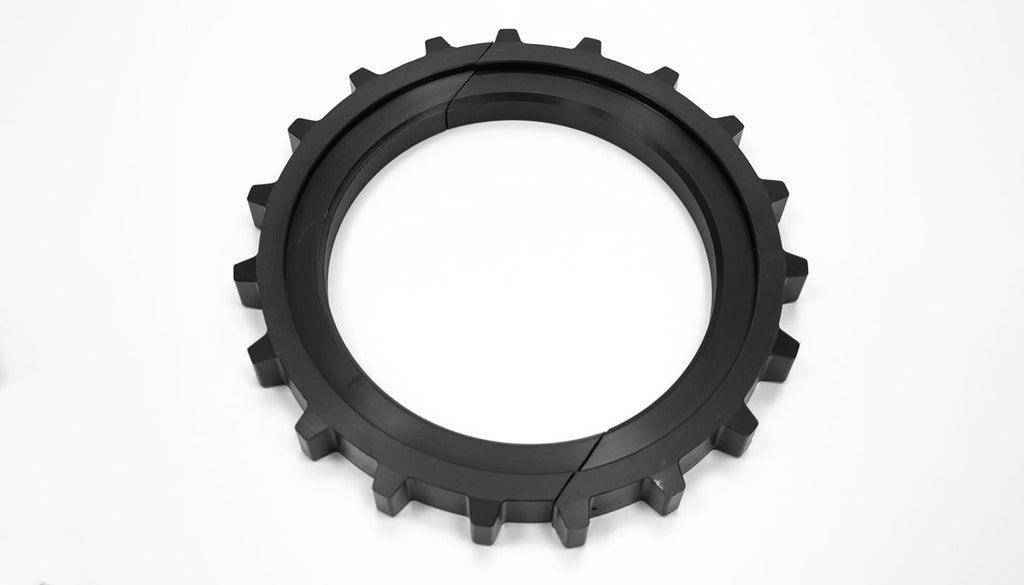

SPROCKET
Easily replaceable UHMWPE sprocket guarantees transfer of over 100KGF of traction to the rubber track with minimal friction and noise.
-
SPECIFICATIONS
Motor:
Type: DC Brushless Geared Hub Motor
Motor Power: 2000W (2x1000W)
Motor Voltage: 48V
Motor Max Torque: 120Nm @25A
Motor Efficiency: ≥80%
Sun-planetary reduction gears with regenerative braking option
36 Spokes, Flange for disc brake, Waterproof connector
Axle=135 mm, Diameter=177 mm
Weight= 4 kg
The phase angle of 120 degreeMotor Manufacturer: MXUS Waterproof and protection grade: IP54 Noise level 55 dB CE, EN15194 certifications
Motor Controller: Brushless Motor Controller
Display Computer: LCD3 meter provides you with a variety of functions such as vehicle controls and vehicle status digitized displays to meet the trip demands. Trip time display (with displays of a single trip time (TM) and total trip time (TTM)); Trip speed display (with displays of real-time speed (Km/H or MPH) and a single maximum speed (MXS) and a single average speed (AVS)); Trip distance display (with displays of a single trip distance (DST) and total trip distance (ODO)); Display of turned on the handlebar; Display of power-assist startup; 6Km/H power assistant push function; Cruise function (CRUISE); Battery capacity indicator; Real-time battery voltage (VOL) display; Motor power and temperature (MOTOR) display; Brake display; Turn on backlighting and lights; Environment temperature display; Data clearing; Fault code display; User parameter setting 5′ large screen Rubber clamp spacer is provided for 3 handlebars bore sizes: 22.5mm, 25.4mm, 31.5mm Easy key button, easy control, Waterproof housing with good appearance
Battery:
The Lizard battery is a battery you can mount on a frame tube using special clamp nuts. The battery can be locked to its support or un-lock and slide out to remove.
Li-Ion 48V 17.5Ah
Battery energy: 840Wh
Battery max power: 1700W
Standard recharge time 8 hours
Battery Pack Specification:
PVC covered 18650Cells and BMS pack
SANYO GA 3500
Charging Model CC/CV
Charge Temperature 0-45 °C
Discharge Temperature -20-55 °C
Battery Charger Voltage:
54.6V
4.5 kg
Battery dimensions:
370 x 110 x 90 mmMaterial:Wheel A356 Aluminum, Magnet 38SH, Wire(winding) QZ-3/155, Iron core DW470, Bearing C&UBlack glove box not included
Motor Voltage: 48V Min Voltage: 42+-0.5V Max Current: 25+-1A Speed Set: 1-4.2V Angle: 120 Brake Input: Low-Level
Brake cut-off magnetic switches:Just stick the magnet sensors, no need to disassemble the brake levers. It cuts-off the motor when you brake. Electric regenerative braking
Thumb Throttle: Haul effect sensor, Analogue linear increasing torque
Other: Rainproof Controller and tools bag
-
DIMENSIONS AND WEIGHT
LxWxH = 200cm x 85cm x 80cm
Weight = 45kg
-
FAQ
Does SnowKart ship fully assemble?
- Yes, SnowKarts are shipped on a pallet and it is fully assembled and ready to go.
How long does it take to ship the product to the customer?
-
7-15 Business Days
How many extra batteries, do I need to buy to use the Snowkart?
- SnowKart comes with 2 batteries and you do not need any extra batteries, although if you would like to extend your range or run a business and need multiple batteries you can buy it from EbikeBC.
What tools do I need to assemble the Snowkart?
- You do not need any tools to assemble the SnowKart as it comes fully assembled, but it is good to have an Allen Key Set and Wrench Set on hand for torquing fasteners as they may get loose over time as you use the products.
How long does it take you to process an order before it is dispatched?
-
1-3 Days
Do you ship packages internationally?
- Yes, we ship all over North America. If you are placing an order from Europe/Asia get in touch with our team to finalize shipping details.
How do you price your postage?
- We charge $250 for shipping regardless of the destination. For remote and far regions we cover the extra cost.
When are tracking details shared?
- Tracking details will be emailed to you as soon as the package is dispatched.
What payment methods do you accept?
- We accept all major Credit/Debit Cards, e-Transfer, Cash.
What kind of payment plans you would offer?
- We offer Buy now, Pay later payment plan with Affirm
-
MANUALS
Gallery
IMPORTANT NOTE TO BUYERS
This is a DIY product preliminary launch for early adopters. This concept has gone through all major engineering, prototyping, limited production, testing, revisions, and approval to be released for marketing. However, there might be multiple unknown failure scenarios in the actual use of this product as mobility means in various terrains which are assumed the risk by the users. That means the buyer, assembler and users must be mechanically inclined and fully understand the product details and instructions as well as all probable risks of using. Customized DIY assembling of Snow track and its accessories requires creativity and a technical mind. Failure to a proper installation may cause serious damage to the parts and or hazard of severe injuries. The buyer assumes the liability for the safe installation and use of this product by signing the Liability Waiver. Before ordering, if you have any questions or need further details, do not hesitate to contact us.
Customer Reviews
I recently purchased the ENVO SnowKart and it has brought endless joy to my family and I. We live around Toronto and finding fun winter activities can be a challenge, but with the SnowKart, we can now enjoy the snow to the fullest. The build quality is outstanding and the design is simply stunning, making it a showstopper wherever we go. The handling is smooth and the ride is comfortable, making it perfect for both kids and adults. We have so much fun using it for family outings, sledding down hills, and exploring the snow-covered trails. I highly recommend the ENVO SnowKart to anyone looking for a fun and thrilling way to experience winter with their loved ones. It has quickly become a staple in our winter adventures and we couldn't be happier with our purchase. Five stars, hands down!
Through our deep partnership with one of our winery partners Meadow Vista Honey Wines we have secured
a solid location to operate a Snow E-Biking experience over 5.5 acres of farm and woodlands just 15 minutes
drive from downtown Kelowna.
During the winter season most tourism related business “hibernate” with the obvious exception of local ski
hills.
Our winter offering will comprise of a 1-hour Snow E-Biking experience and seasonal food and beverage
elements provided by Meadow Vista including lunch, mulled spiced honey wine, s’mores and VIP honey wine
tastings with the ability for customers to add on a tasting session of organic artisan natural and infused
honeys from our award winning winery partner.
The Snow E-Biking will be in the format of a custom route clearly marked lap track, where all under-snow
hazards have been removed to ensure safe operation. Each lap is approximately 1km taking riders along
farmland, through woodlands and along snow capped Christmas tree lined terrain.
We purchased two of your Karts last year. While we have had significant issues with getting them to run correctly they are amazingly fun machines. Riding them on sand has been our best experience so far.
We have done several modifications to them to make them more user friendly for us
1. Removed red metal shield
2. Repositioned controller bag to steering post. Tidied up wires
3. Removed battery mounts and re-located them to the steering post.
4. Re-orientated batteries so each had charging port and key at the top
5. Removed seat and put a block of wood to remount the seat using a swivel to clear the rubber tracks when the seat is rotated for easier access.
6. Added a carabiner to easily add a tow rope.
Can I give 6 stars? I ordered a SnowKart from ENVO unseen, they shipped it across the country during very difficult meteorological times and transportation challenges, provided top notch customer service. Excellent product, you can't go wrong by choosing an ENVO products.
Can I give 6 stars? I ordered a SnowKart from ENVO unseen, they shipped it across the country during very difficult meteorological times and transportation challenges, provided top notch customer service. Excellent product, you can't go wrong by choosing an ENVO products.
