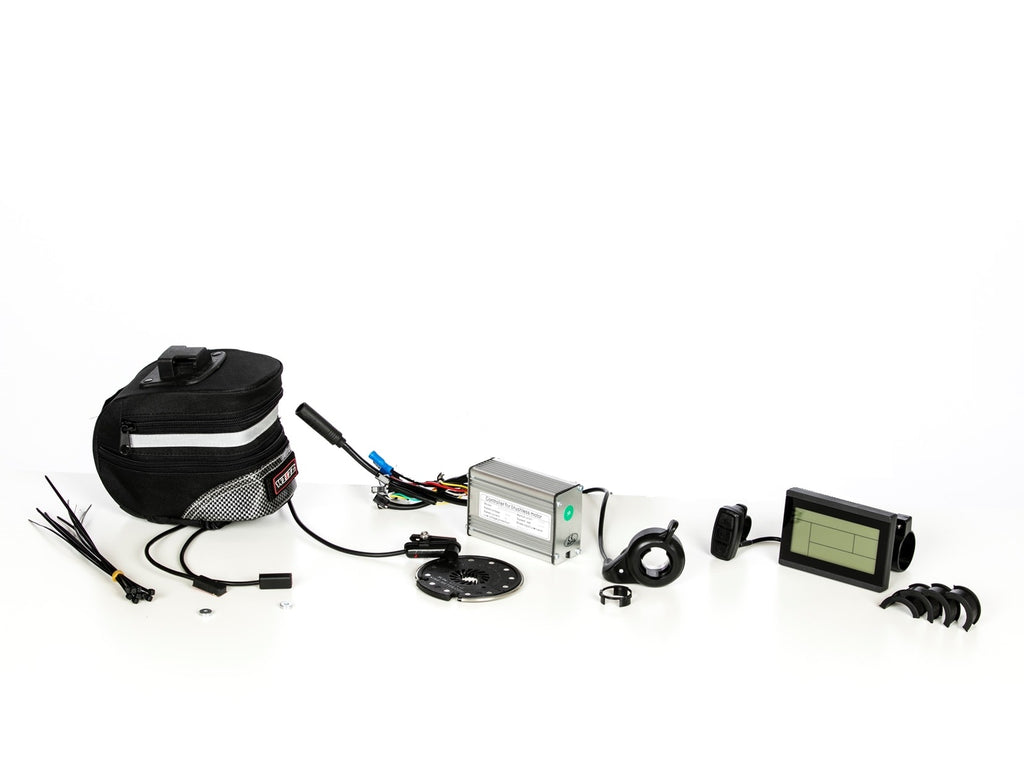

LCD3 17A Controller System (in Controller Bag)

Comes inside controller bag

LCD display and computer,

• Motor Controller 36V 17A,
• Thumb Throttle,
• Pedal Assist Sensor,
• Brake cut-off magnetic switches,
• Rainproof Controller and tools bag,
• Zip ties, cable shield, and installation accessories

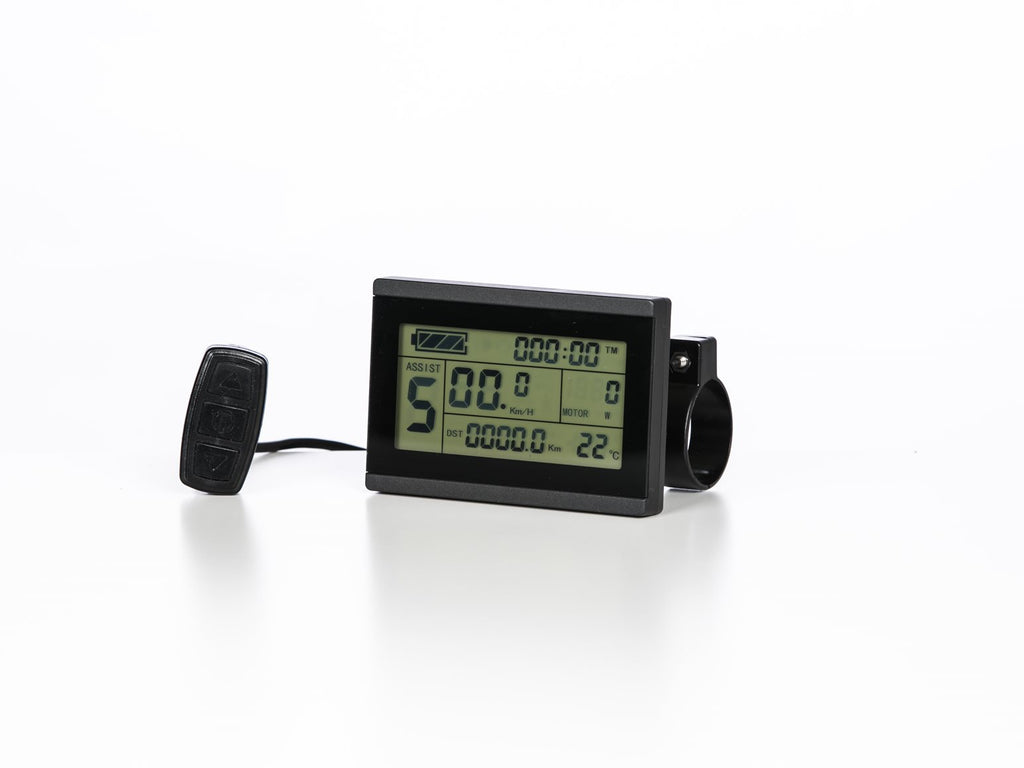

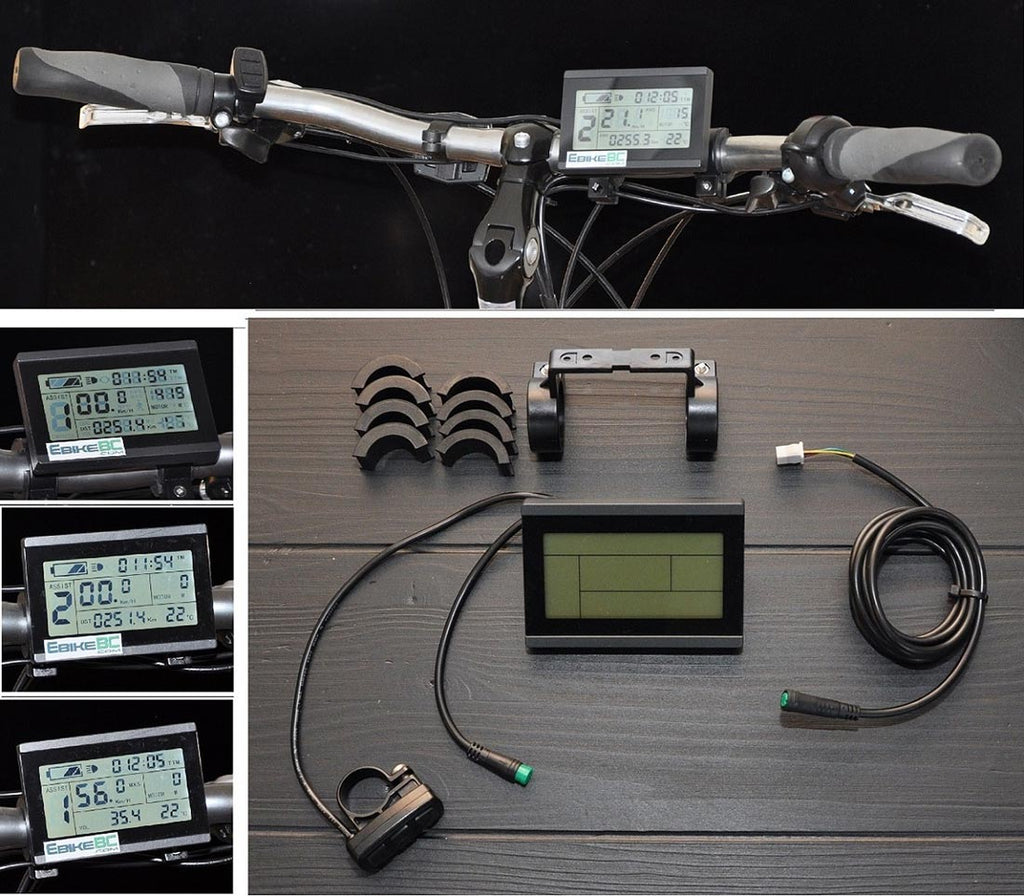

LCD3 17A Controller System Interface:

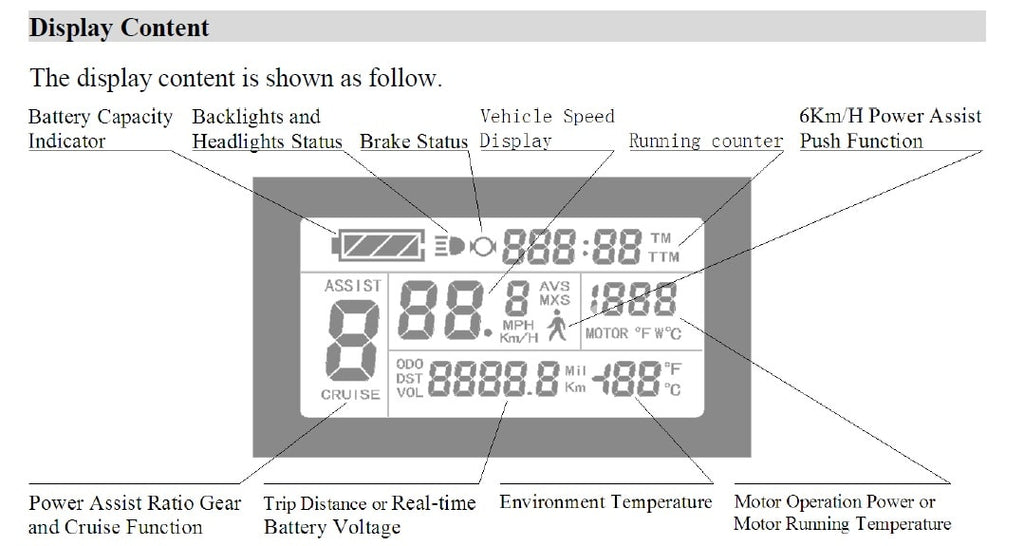

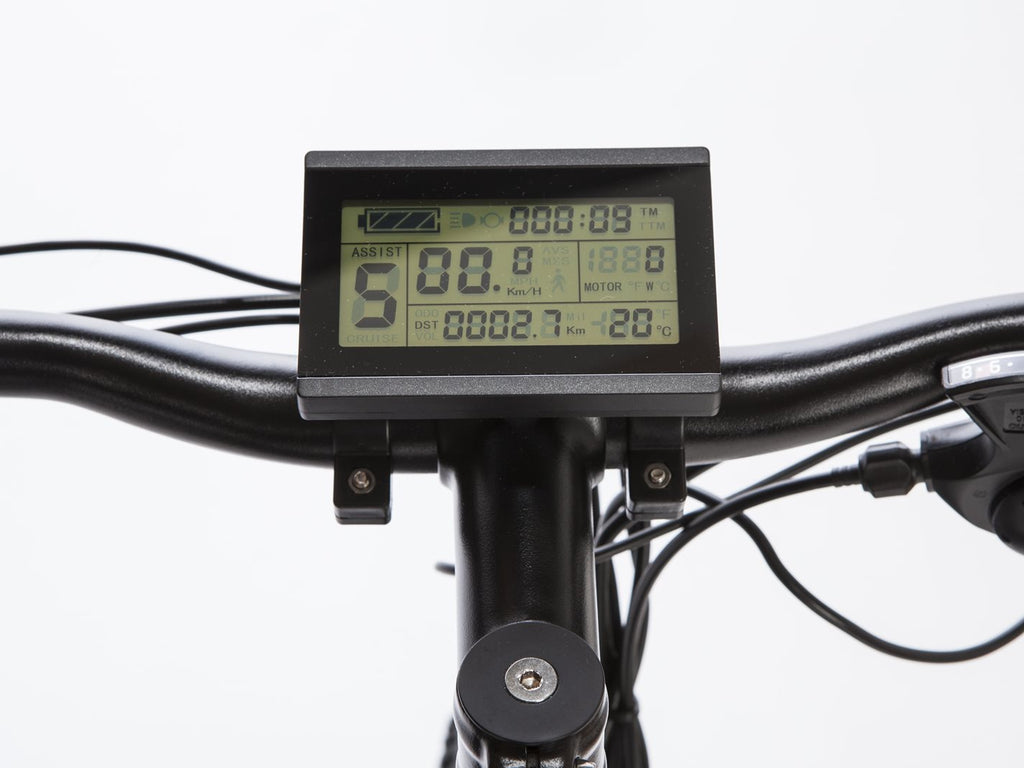

• LCD3 meter provide you with a variety of functions such as vehicle controls and vehicle status digitized displays to meet the trip demands.
• Pedal Assist System (PAS) optimized to simulate the torque sensor. This computing system provides Speed limit PAS or Torque limit PAS levels from 0 to 5.
• Trip time display (with displays of a single trip time (TM) and total trip time (TTM));
• Trip speed display (with displays of real-time speed (Km/H or MPH) and a single maximum speed (MXS) and a single average speed (AVS));
• Trip distance display (with displays of a single trip distance (DST) and total trip distance (ODO));
• Display of turned on the handlebar;
• Display of power-assist startup;
• Power assistant ratio (or handlebar) gear (ASSIST) switch;
• 6Km/H power assistant push function;
• Cruise function (CRUISE);
• Battery capacity indicator;
• Real-time battery voltage (VOL) display;
• Motor power and temperature (MOTOR) display;Brake display;
• Turn on backlighting and lights ;
• Environment temperature display;
• Data clearing;
• Fault code display;
• User parameter setting

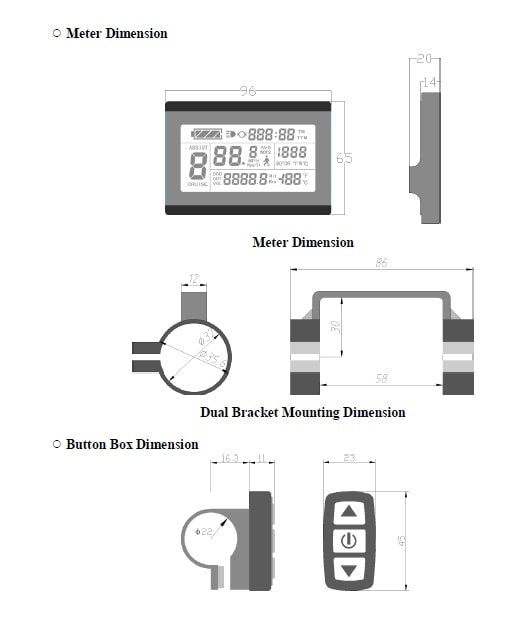

• 5' large screen

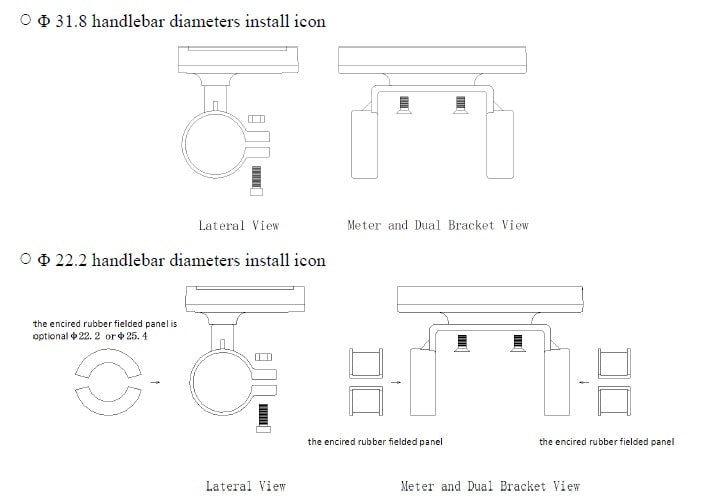

• Rubber clamp spacer is provided for 3 handlebars bore sizes: 22.5mm, 25.4mm, 31.5mm
• easy key button, easy control,
• waterproof housing with a good appearance

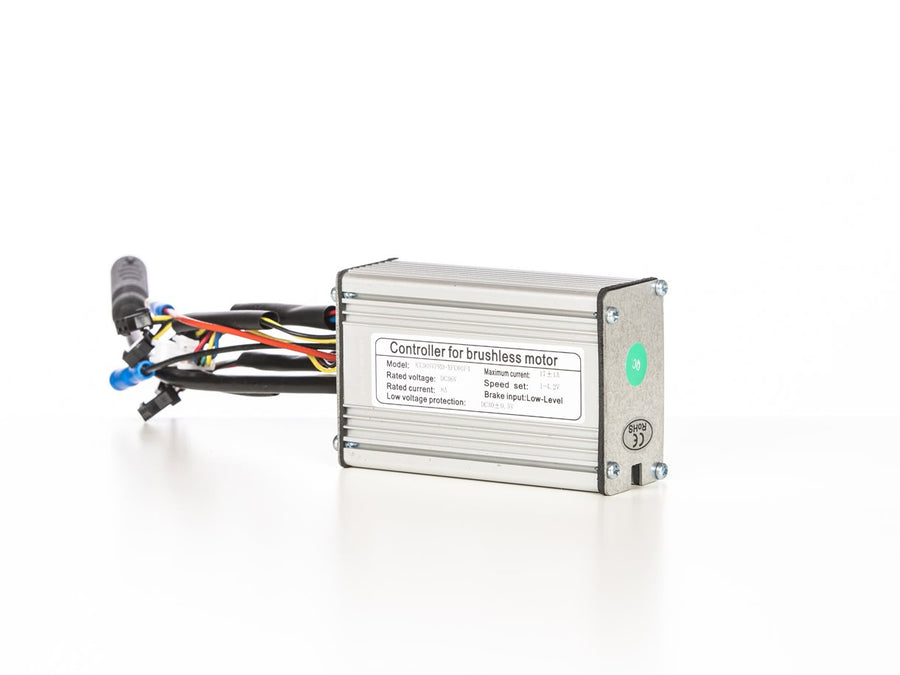

LCD3 17A Motor Controller:

• Brushless Motor Controller

• Voltage: 36V

• Min Voltage: 30+-0.5V

• Max Current: 17+-1A

• Speed Set: 1-4.2V

• Angle: 120

• Brake Input: Low-Level

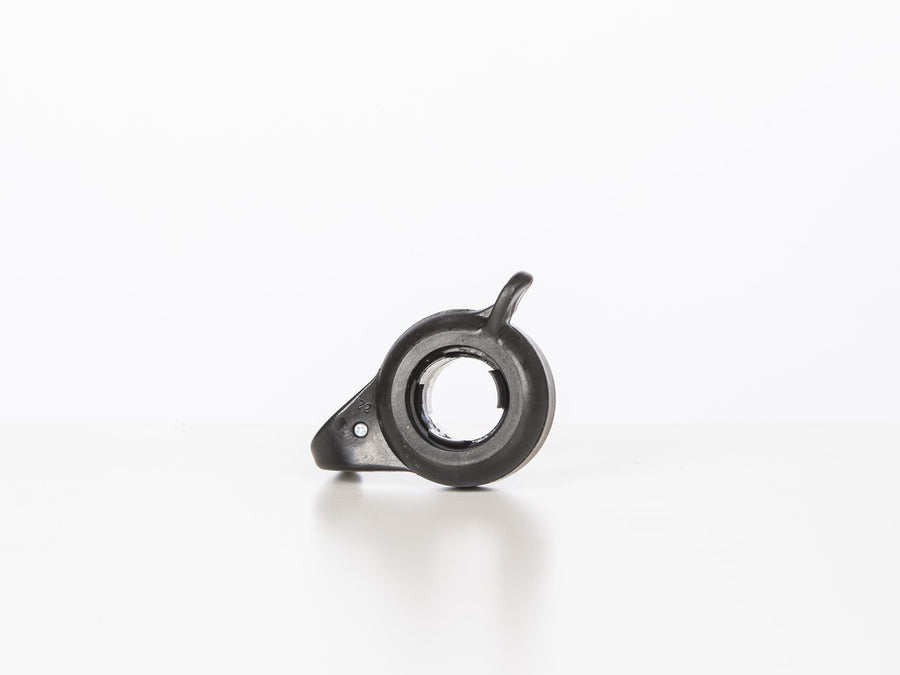

Thumb Throttle:

• Haul effect sensor, Analogue linear increasing torque

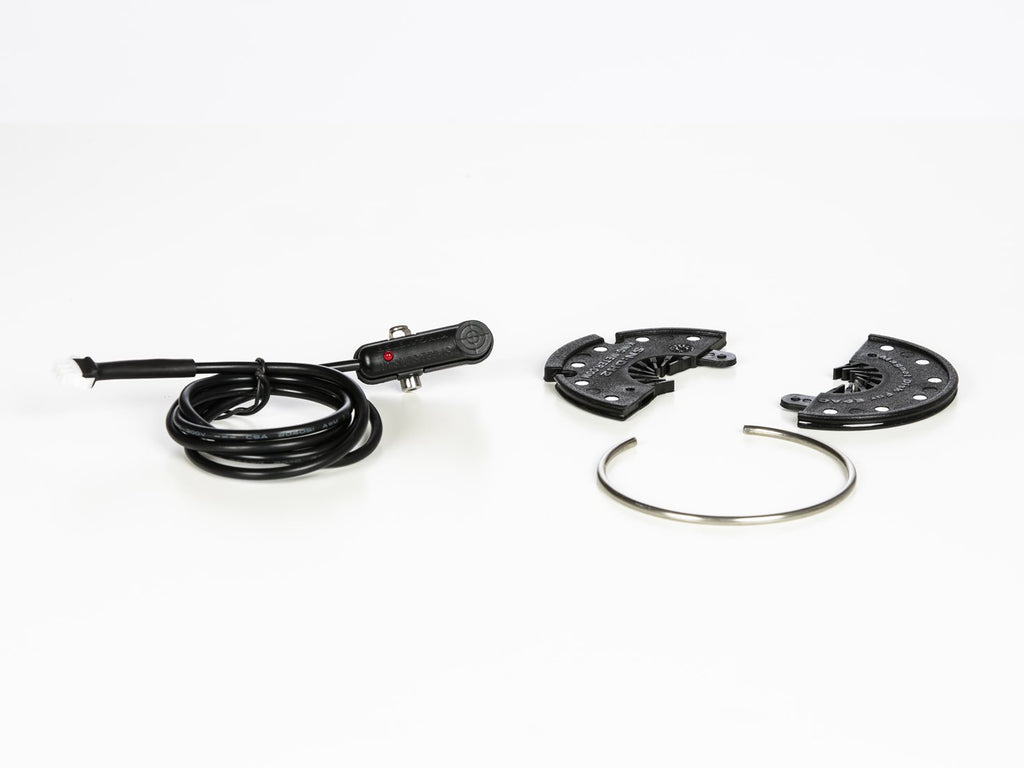

• Pedal Assist Sensor

• 2 pieces 12 Magnet easy assemble Pedal Assist Sensor,

• Just stick the sensor, no need to disassemble the crank.

• this sensor is compatible with optimized PAS controlling systems and provide the best pedal assist performance, rapid response and torque sensor simulation.

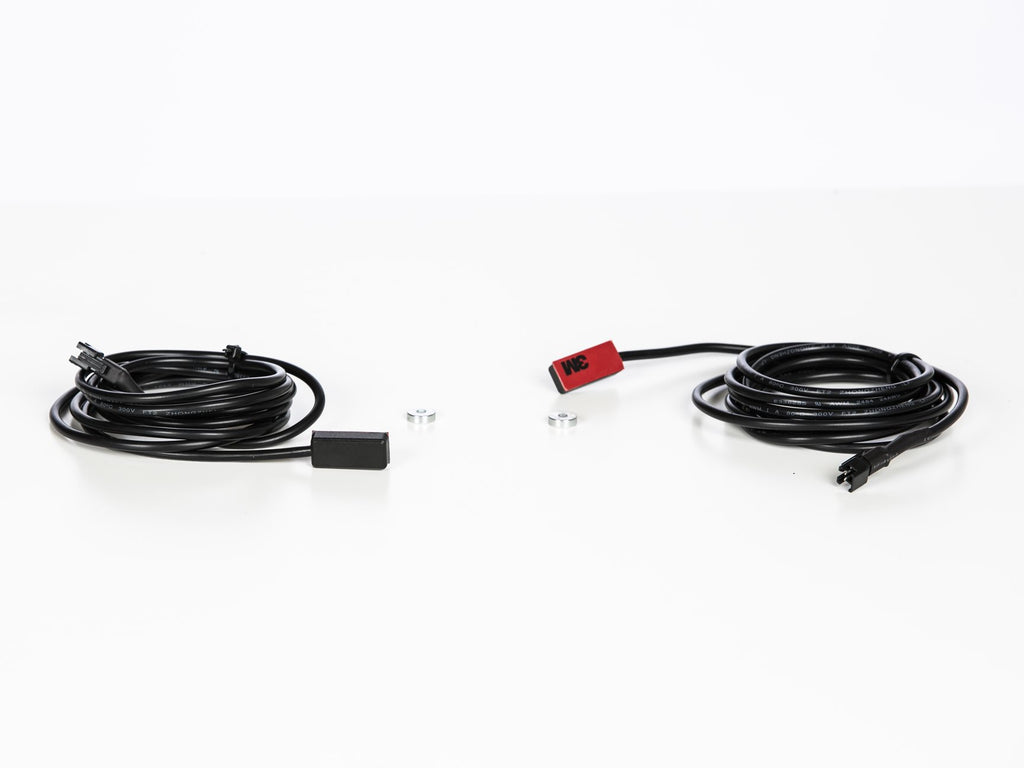

• Brack cut-off magnetic switches

• Just stick the magnet sensors, no need to disassemble the brake levers.

• it cuts-off the motor when you brake

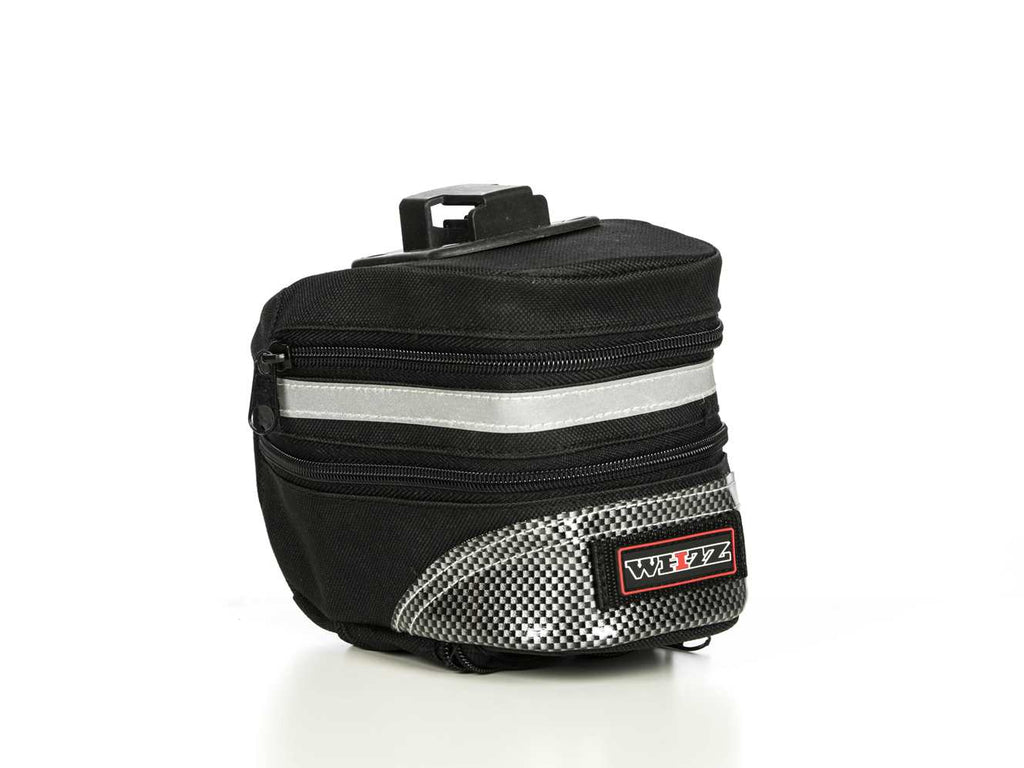

• Rain proof Controller and tools bag,
