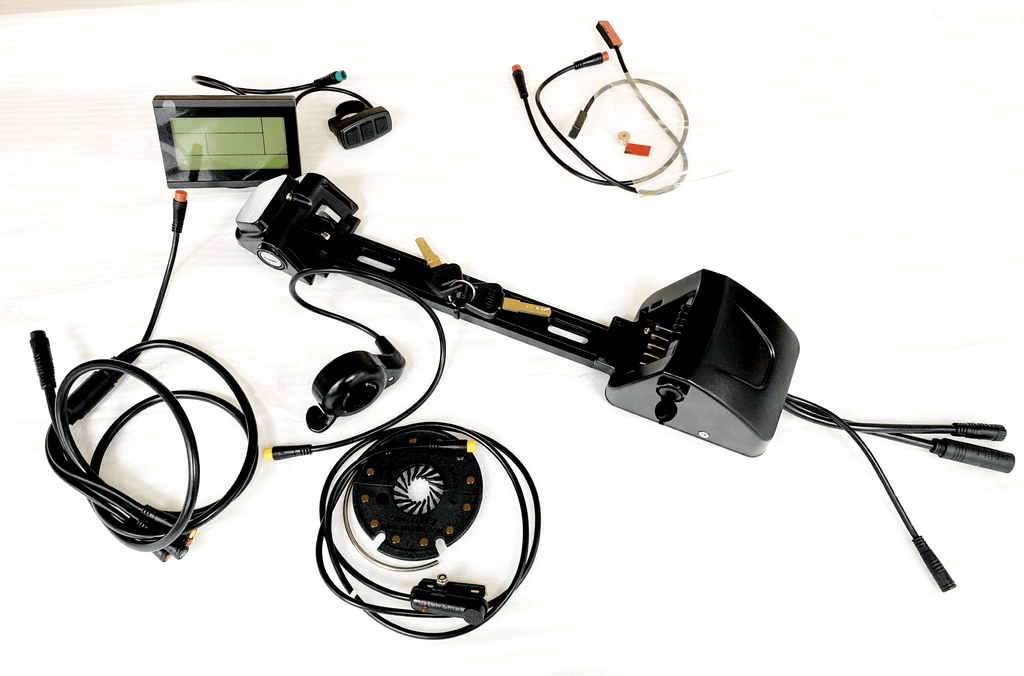

ENVO LCD3 Controller System (Inside Battery Rack)



Comes inside the black box (integrated) below the battery pack.

• DC Sensored Brushless Motor Controller

• Rated Voltage: 36V

• Rated Current: 8A

• Min Voltage: 31V

• Max Current: 17A

• Speed Set: 1.2-4.2V

• Waterproof housing

• LCD display and computer,

• Motor Controller 36V 17A,

• Thumb Throttle,

• Pedal Assist Sensor,

• Brake cut-off magnetic switches,

• Waterproof Controller and tools bag,

• Zip ties, cable shield and installation accessories


--

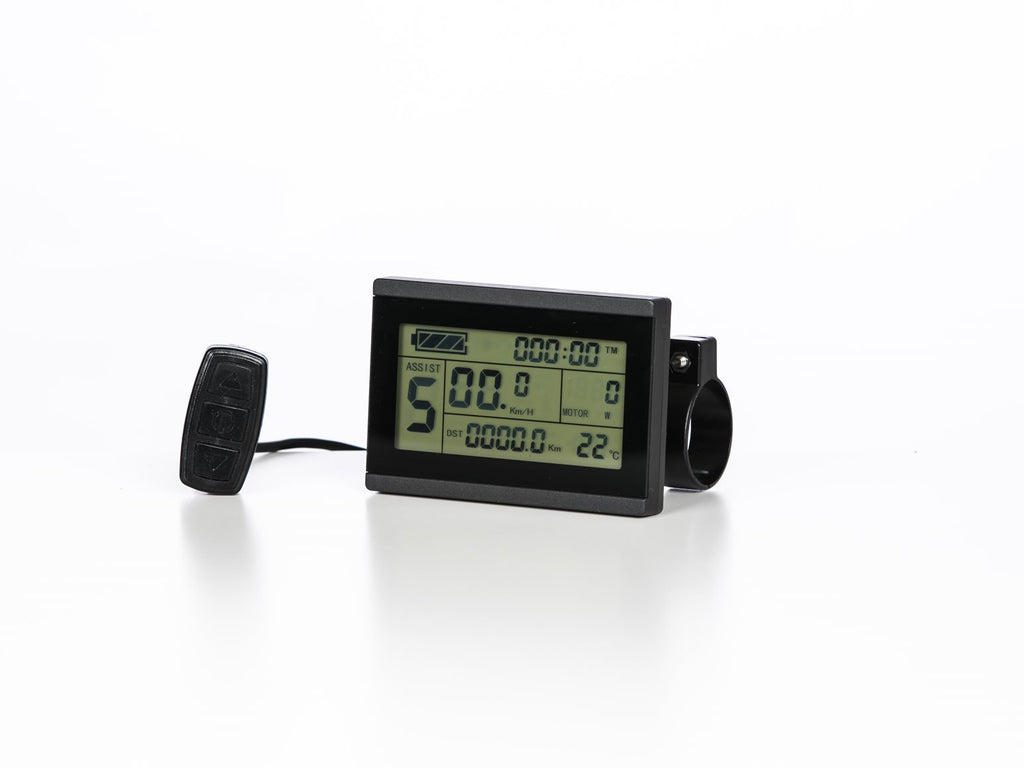

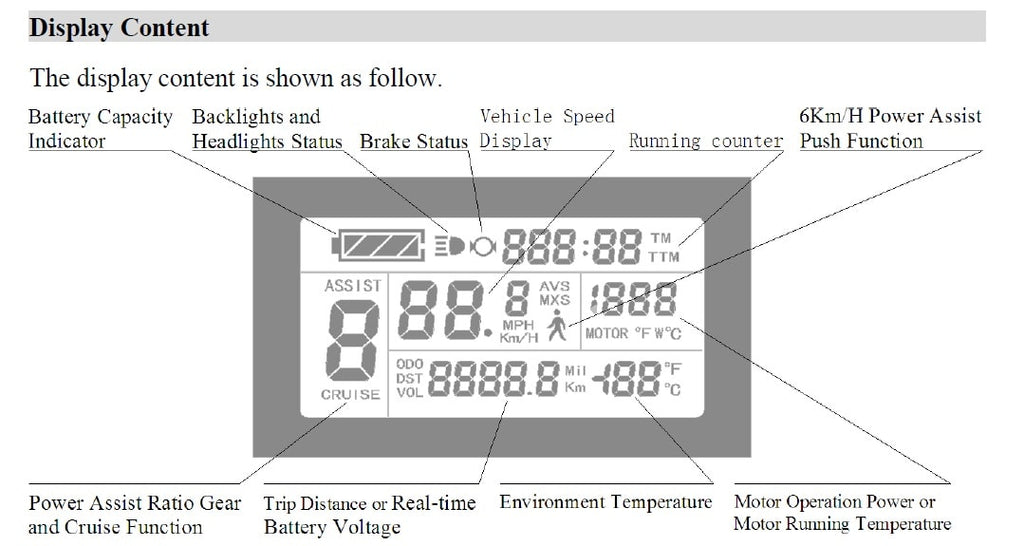

Interface:

• LCD3 meter provide you with a variety of functions such as vehicle controls and vehicle status digitized displays to meet the trip demands.

• Pedal Assist System (PAS) optimized to simulate the torque sensor. This computing system provides Speed limit PAS or Torque limit PAS levels from 0 to 5.

• Trip time display (with displays of a single trip time (TM) and total trip time (TTM));

• Trip speed display (with displays of real-time speed (Km/H or MPH) and a single maximum speed (MXS) and a single average speed (AVS));

• Trip distance display (with displays of a single trip distance (DST) and total trip distance (ODO));

• Display of turned on handlebar;

• Display of power-assist startup;

• Power assistant ratio (or handlebar) gear (ASSIST) switch;

• 6Km/H power assistant push function;

• Cruise function (CRUISE);

• Battery capacity indicator;

• Real-time battery voltage (VOL) display;

• Motor power and temperature (MOTOR) display;

• Brake display;

• Turn on backlighting and lights ;

• Environment temperature display;

• Data clearing;

• Fault code display;

• User parameter setting

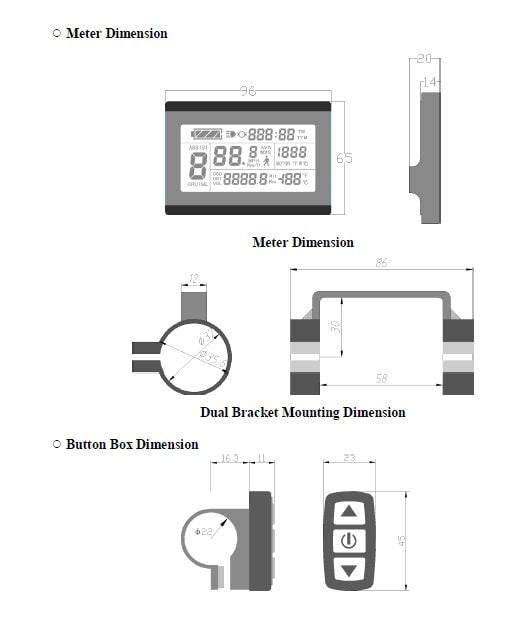

• 5' large screen

• Rubber clamp spacer is provided for 3 handlebar bore sizes: 22.5mm, 25.4mm, 31.5mm

• easy key button, easy control,

• waterproof housing with good appearance



Motor Controller:

• Brushless Motor Controller

• Voltage: 36V

• Min Voltage: 30+-0.5V

• Max Current: 17+-1A

• Speed Set: 1-4.2V

• Angle: 120

• Brake Input: Low-Level

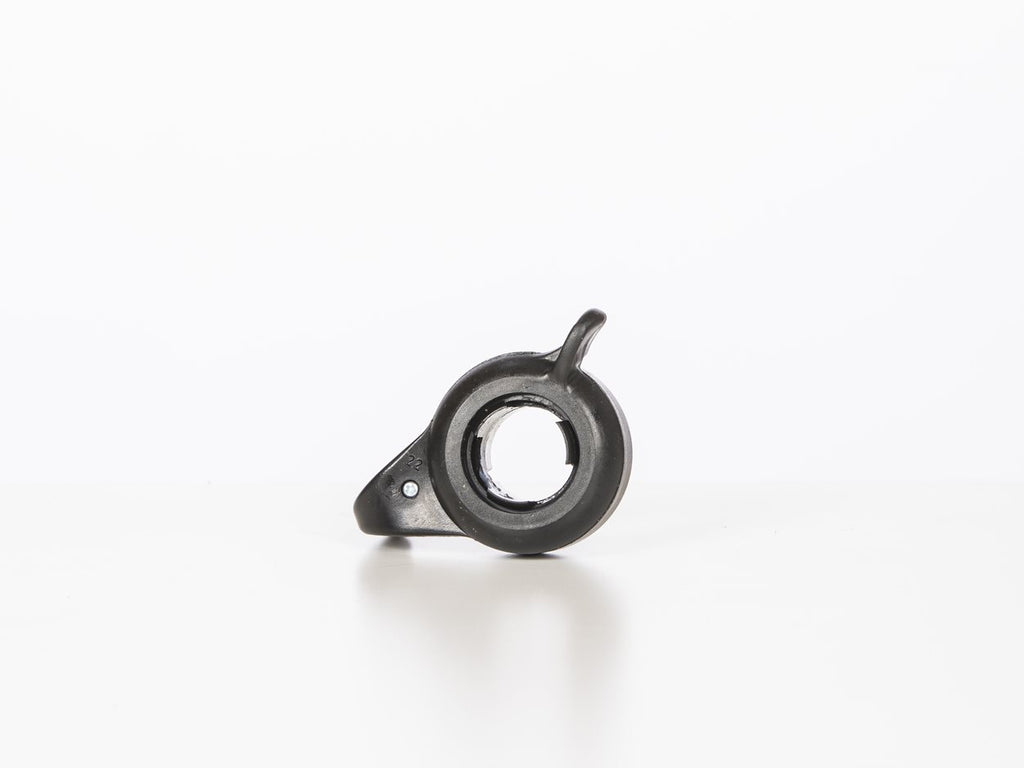

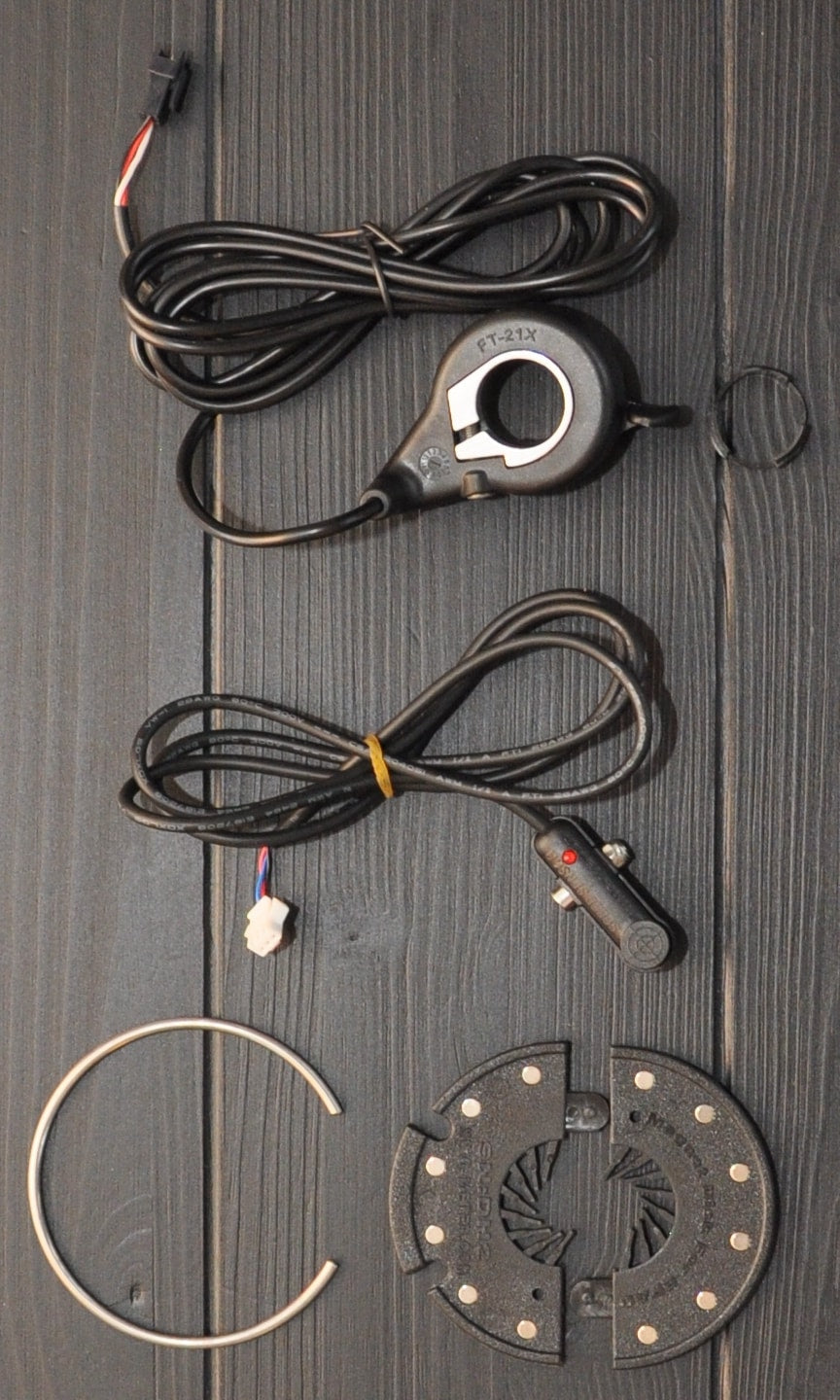

Thumb Throttle:

• Haul effect sensor, Analogue linear increasing torque

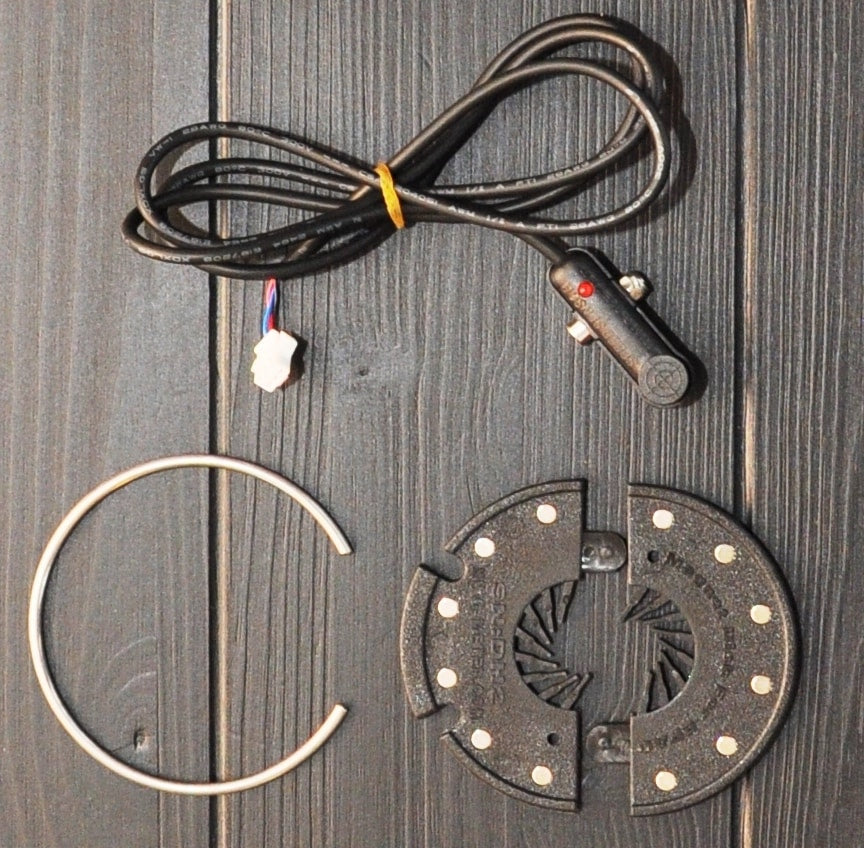

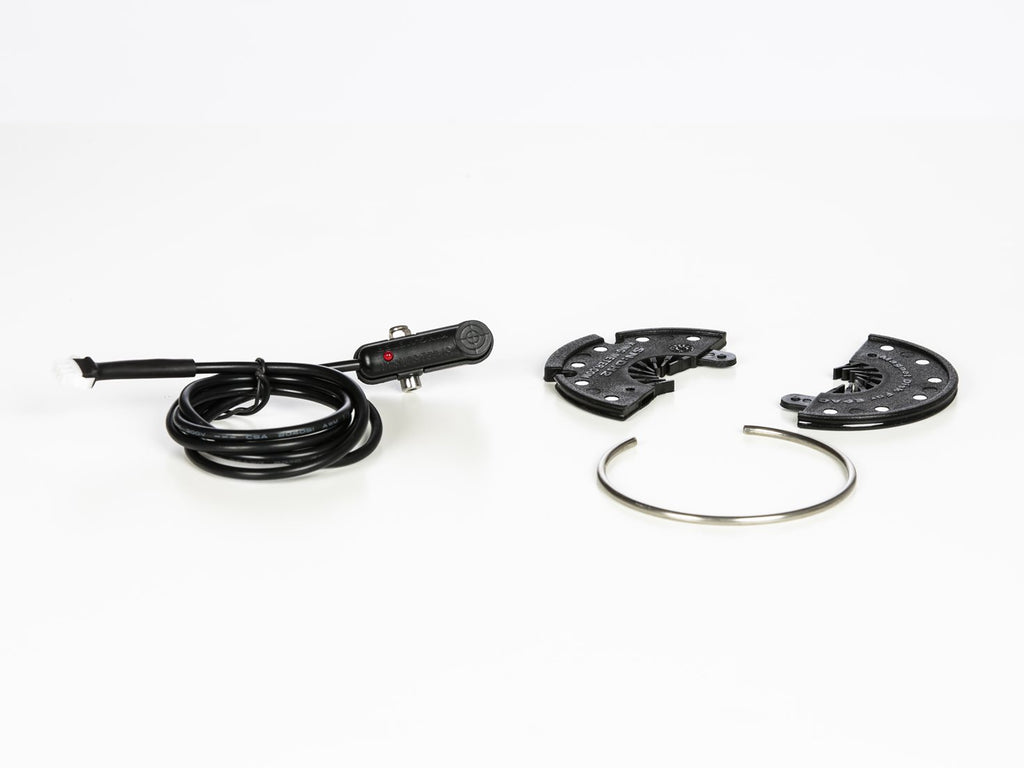

Pedal Assist Sensor

• 2 pieces 12 Magnet easy assemble Pedal Assist Sensor,

• Just stick the sensor, no need to disassemble the crank.

• this sensor is compatible with optimized PAS controlling systems and provide the best pedal assist performance, rapid response and torque sensor simulation.

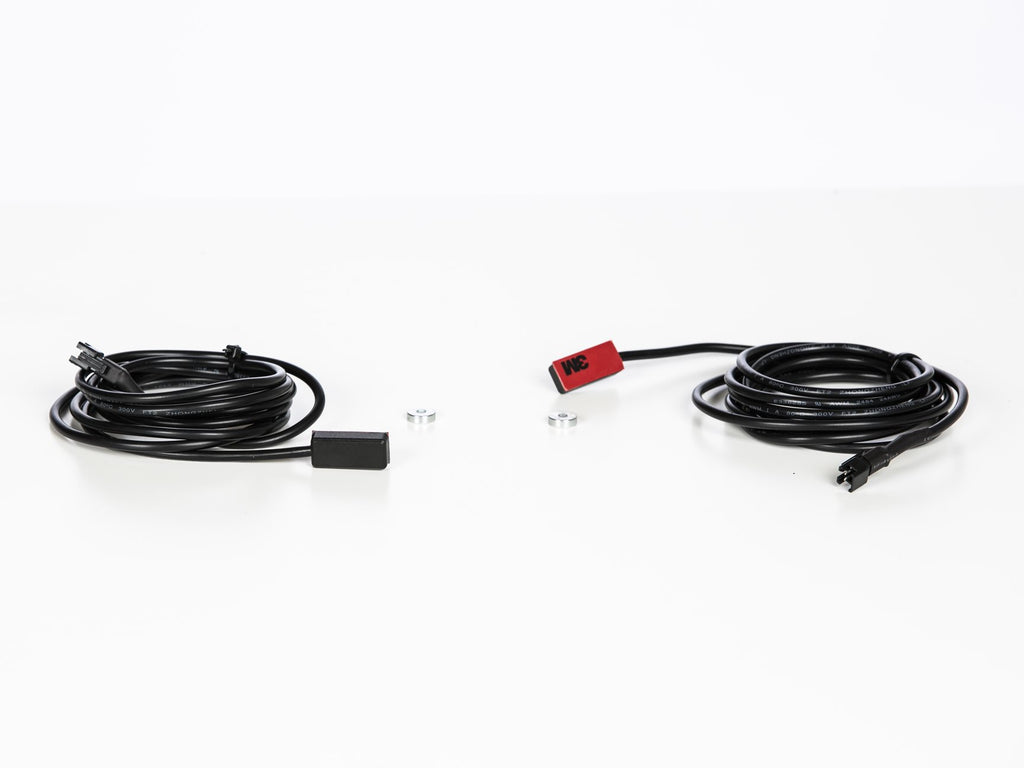

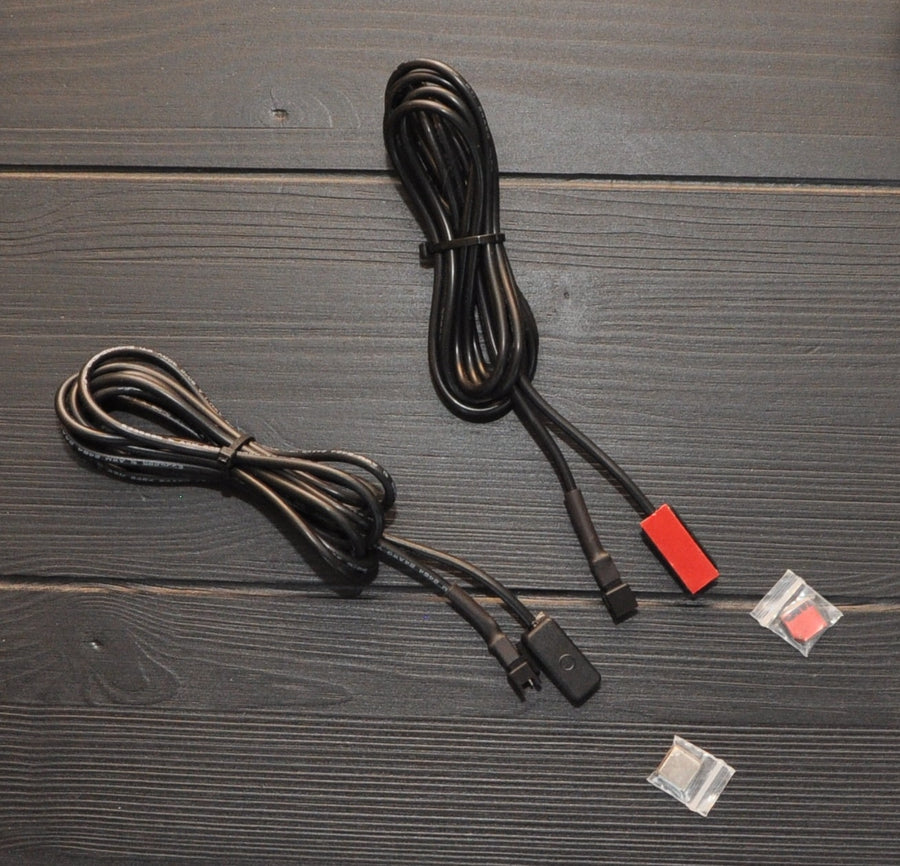

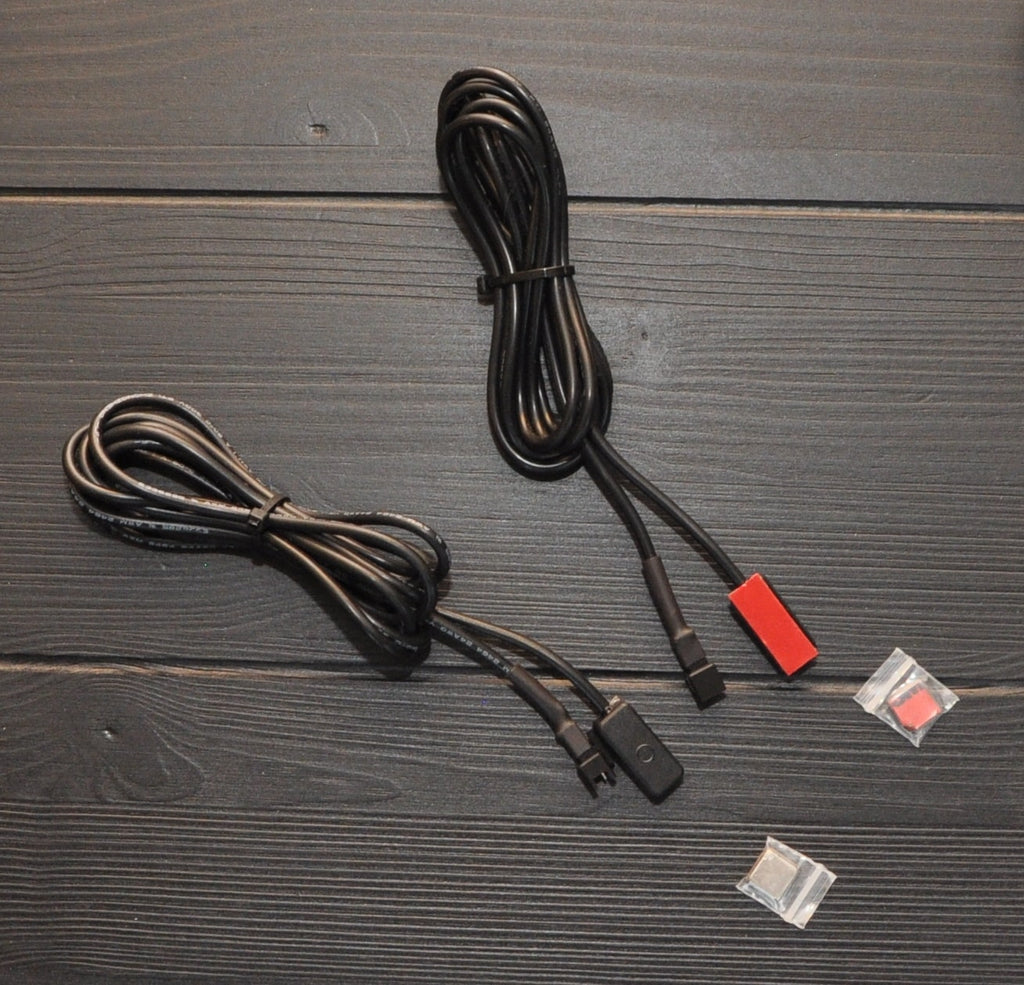

Brack cut-off magnetic switches

• Just stick the magnet sensors, no need to disassemble the brake levers.

• it cuts-off the motor when you brake

Rain proof Controller and tools bag,
