Rides and Feels like a traditional bike.
Envo STAX Electric Bike
ENVO stax is an electric bicycle that is designed to provide a natural and familiar riding experience akin to a traditional bicycle, it is designed for a crowd looking for a sporty ride. A crowd looking for the lightest bike possible that can easily be carried around in condo staircases, public transits and more; yet looks and behave like a regular bike in order to whip around the city. ENVO Stax puts aesthetic and pleasure first, yet does not sacrifice on motor performance and our beloved torque emulation software. The battery being inside the seatpost, it made it much easier to disguise this eBike has a regular bike. Top Speed 32km/h (20mph)
19KG (42lbs)
Total Weight
500W
Max Power
32km/h | 20mph
Top Speed
100km
Max Range
HYDRAULIC DISK BRAKE
PEDAL ASSIST
Race Inspired Geometry
The geometry has been optimized to offer a sporty position and maximize power output from the rider. The rigid fork brings agile steering and increased road feel compared to our D35 suspension fork. The frame has also been designed around 40mm wide tires, which have little rolling resistance, but enough traction and puncture resistance. All this makes it a perfect bike to use on any road.
Premium, Yet Affordable
The ENVO Stax is an electric bicycle that offers premium features and specifications, yet is priced affordably, making it accessible to a wider range of riders. Despite its affordable price point, the ENVO Stax boasts a high-quality build, advanced components, and exceptional performance. It provides riders with a comfortable, efficient, and enjoyable riding experience that rivals that of much more expensive e-bikes.
Streamlined Design
Stax is designed to stylish and streamlined, all the welds are smoothened, headlight is directly integrated in the bike frame, and all the cables are hidden and routed internally.
42 lbs! That's it.
The ENVO Stax is the lightest bike in its category, boasting a cutting-edge design and premium materials. Our engineers optimized every aspect of the bike, creating an unparalleled ride that's fast, responsive, and efficient.
500W! Twice as much as an Olympic cyclist
The ENVO Stax electric bike is capable of generating a whopping 500W of power, which is twice the output of an Olympic cyclist. This allows the rider to accelerate faster, tackle steeper hills, and travel longer distances with less effort.
Proudly Canadian
Discover the best in electric micromobility with ENVO, a Canadian company specializing in locally designed products providing you with convenience, affordability, and sustainability for all your needs.
FEATURED IN
"fairly lightweight design at just 19 kg (42 lb.). I know that seems heavy compared to your beater Huffy, but that’s pretty darn lightweight by e-bike standards."
"The whole thing tips the scales at a pretty decent 19 kg (42 lb)."
"I particularly enjoy how the Stax shows up to the game with a geometry inherent to gravel bikes"
"The Stax is the latest tool added to ENVO’s micro-mobility kit as it looks to innovate the personal transportation industry and empower electric passengers."
"the Stax impresses with its minimalist lines, making the fact it's an electric bicycle nearly imperceptible"
Stax Reviews
OTHER FEATURES
What Makes ENVO STAX the Best Electric Road Bike

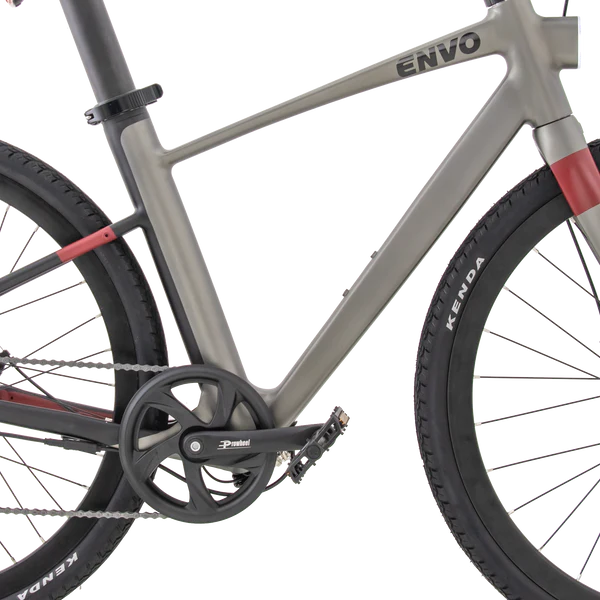

LIGHT SPORTY FRAME
Stax features a solid, super lightweight, and stylish frame. This frame is made of 6061Aluminum Alloy which is treated with T6 heat treatment. ENVO uses atechnique called hydroforming to get the beautiful curve and ergonomicgeometry.

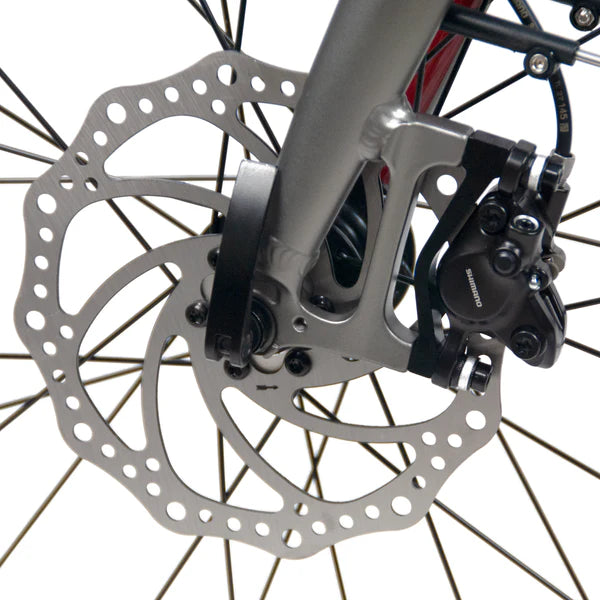

HYDRAULIC DISK BRAKE
Top of the line hydraulic disk brakes equipped with electric cut-off sensors provide more safety to the bike as well as the rider.
BATTERY PACK
The battery is removable and can reach a range of up to 100 km per charge on pedal assist level 1. The battery can be charged on or off the bike frame using the little portable CC-CV smart Li-Ion battery charger. The ENVO Battery contains a BMS that avoids battery from overcharging, overloading and other hazardous activities, thereby increasing both cyclic and calendar life of the battery. Battery cells have been selected for best operating in freezing temperatures

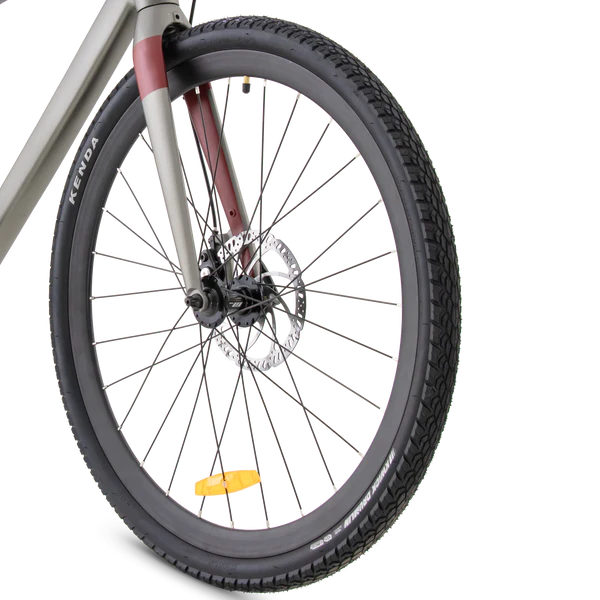

TIRES
Stax features 700C tires that have a width of 40mm, this helps to reduce rolling resistance and allows riders to achieve high speeds with ease providing unmatched performance and efficiency. This means you can cover longer distances in a shorter amount of time without sacrificing comfort.

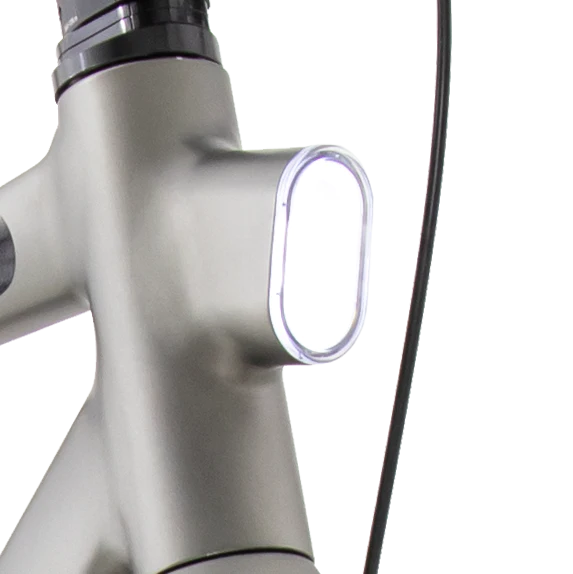

HEADLIGHT
The Stax is fitted with high efficiency and bright integrated LED 40 LUX headlight powered by the main battery and controlled by a keypad on the handlebar.

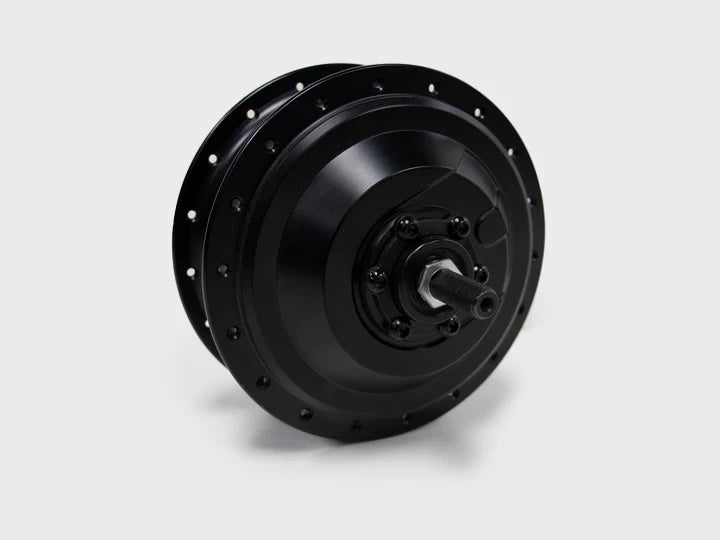

GEARED HUB MOTOR
ENVO Stax is equipped with a sealed, powerful, geared hub motor that offers 500W power and 60Nm torque. The bike is a street-legal bike with legalized speed, torque and power all over Canada and most parts of the US. Our motors are 50% lighter than all the rest powered geared hub motors in Canada, yet they deliver 50% more torque and 25% more battery efficiency. These ENVO motors are developed for over 20,000Km maintenance-free ride.

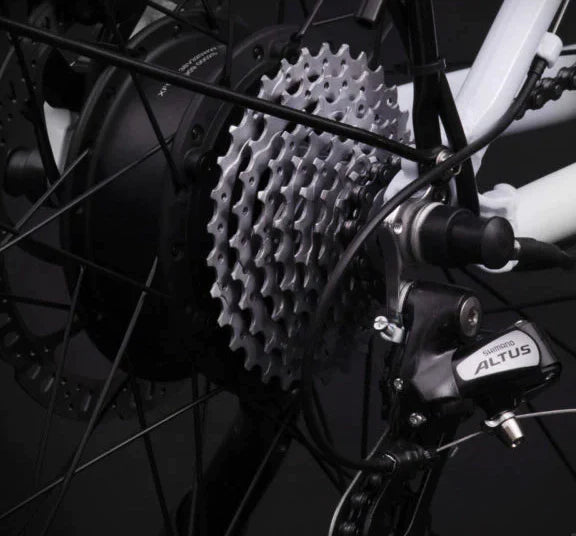

TRANSMISSION SYSTEM
Well-engineered 8 speed 48T chain ring and 11-32 cassette transmission help you overcome up to 25% grade when climbing a hill on gear 1 or 40km/h speed on gear 8 with gentle pedaling.
E-ASSIST SYSTEM
Stax is equipped with an advanced pedal assist sensor with optimized torque emulation software. The advanced torque emulating Pedal Assist Sensor (PAS) signals the controller to run the motor between 5 levels of pedal assist, providing a boost to your pedalling depending on the level of assistance you select while riding. Stax also supports an optional on-demand thumb throttle that gives you an extra boost which activates the motor proportionally to the twist regardless of pedalling to give you a fully electric ride in case you cannot pedal or need an instant acceleration or uphill push.
-
SPECIFICATIONS
Frame
Hydro-formed Alloy 6061 TIG welded
Fork
Aluminum Rigid Fork, tapered from 1-1/8"to 1-1/2",with internal cable routing
Battery
36V12.8A
Motor
Brushless 36V/ rear motor
Brake Set
Shimano Hydraulic Disk brakes BR-MT200,with 180mm Rotr
Charger
Charger 36V/2A
Transmission
SHIMANO Altus SL-M315 - 8Speed
Tire
700C Kenda,K192
-
