Lynx 20" - Folding Electric Bike

Sale price$999.00 CAD Regular price$2,259.00 CAD
Save $1,260.00
Frame Options
Color
Buying Options

Pickup available at Local Pickup Usually ready in 24 hours

Lynx 20" - Folding Electric Bike

Black / Pre Owned

Local Pickup

Pickup available, usually ready in 24 hours

1685 Ingleton Ave
Burnaby BC V5C 3V6
Canada

+16044233381

Size Chart

Size Chart

Product Help

FAQs
Visit our FAQ page to find answers to eBike related questions

Customer Support
1685 Ingleton Ave, Burnaby, BC V5C 3V6
M: +1 (604) 423-3381
T: +1 (888) 229-2980

Contact
Want to get in touch with our teams? Visit our contact page to send us a message.

Ebike Lynx 20

The Best Folding Pedal Assist Urban Ebike in North America

Powerful, Foldable, Light, Compact and the most Reliable!

The ENVO LYNX 20" is a compact, super-light and powerful foldable electric bike. Capable of supporting riders up to 130 kg (300lbs) / 6’4”, the Lynx 20" is proudly the most reliable, safe and excellent choice for anyone who needs a bike that is fully featured and easy to transport. To have the most safety, the bike is UL-2849 certified.

Open Box models will have 3 months of Warranty. Pre-owned ones don't have warranty. You can add 1 year of warranty to each for $60 by adding extended year of warranty to the cart. Top Speed 32Km/h (20mph).

22.5Kg (49.5lbs)

Total Weight

500W

Max Power

32Km/h (20mph)

Max Speed

100Km (63 miles)

Max Range

ULTRA-LIGHT FOLDABLE FRAME

The ENVO Lynx 20" has a sturdy, lightweight, sleek, and unisex aluminum alloy frame. The frame and seat post are designed to support different height riders. It can support a rider weighing up to 300 pounds and has an ergonomic form that makes it easier for the rider to get on and off. The frame is brilliantly engineered to reduce all drive-system vibrations and noise, and the wheelbase is tuned for the most compact foldable size while giving a smooth and stable high speed, delightful riding on paved and uneven roads.

UL-2849 Certified

Envo Drive Systems prioritises customer safety above all else by designing the incredible Lynx 20" that has been granted the UL 2849 electric bike safety standard, which is a significant boost to the quality guarantee of this bike. The UL 2849 certification procedure evaluates a wide range of features of an electric bike's electrical system, including battery management systems, controllers, chargers, and electric batteries. Envo's passion is for sustainably engineered, future-proof mobility solutions that are industry leaders in safety, and this bike's certification demonstrates that dedication.

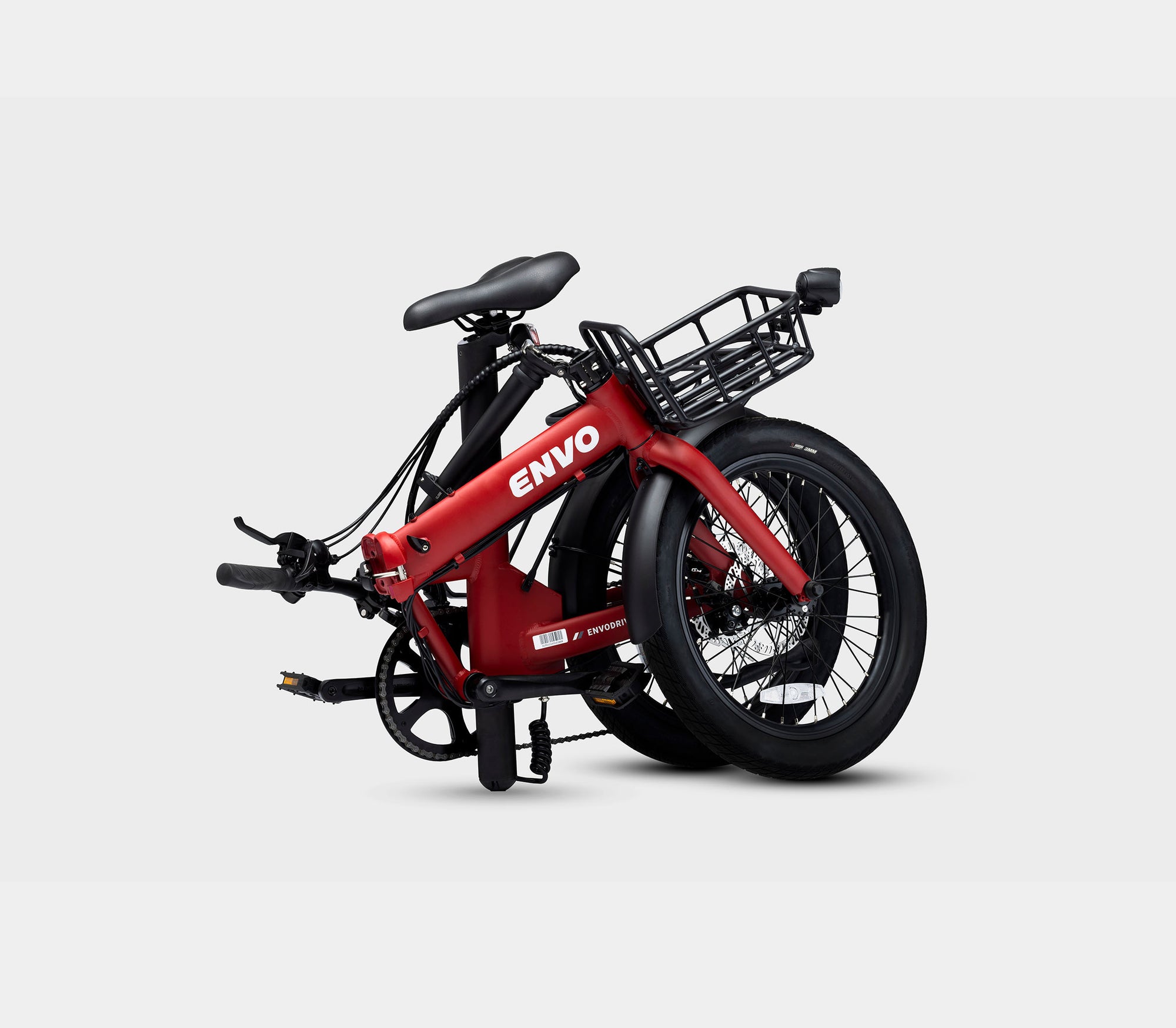

Easily Carried - Fits Everywhere

The lynx 20" is the lightest in the market, with all of the features and the ability to fold the frame, handlebar stem, and pedals to fit in any tiny area. They are compact enough to fit within the trunk of a car and can be taken on any bus, train, or metro.

OTHER FEATURES

What Makes ENVO Lynx 20", The Best In Its Class

INTEGRATED BATTERY PACK

The elegant, replaceable, high-performance, and ultra-reliable A-grade 36V 12.8Ah Li-Ion battery pack provides an average round-trip range of 50km on level 4-5 assist or more than 100km on level 1-2 assist. While this UN 38.3 certified battery is disguised in a structural component (the seat post), it is easily accessible for replacement, transit, and charging while is or not connected to the bike.

OPTIMIZED GEARED MOTOR HUB

ENVO Lynx is equipped with a sealed, powerful, geared hub motor which offers 500W power and 60Nm torque. The bike is a street legal bike with legalized speed, torque and power all over Canada and US. Our motors are 50% lighter than all the rest powered geared hub motors in Canada, yet they deliver 50% more torque and 25% more battery efficiency. These ENVO motors are developed for over 20,000Km maintenance free ride.

E-ASSIST SYSTEM

The Lynx is equipped with an advanced pedal assist sensor with an optimized torque emulation software. The advanced torque emulating Pedal Assist Sensor (PAS) signals the controller to run the motor between 5 levels of pedal assist, providing a boost to your pedaling depending on the level of assist you select while riding. The Lynx is equipped with an on-demand thumb throttle that gives you an extra boost which activates the motor proportionally to the twist regardless of pedaling to give you a fully electric ride in case you cannot pedal or need an instant acceleration or uphill push.

RELIABLE TRANSMISSION

Top of the line 7 speed derailleur and shifter with 52 to 11 gear ratio lets you accompany pedaling gently up to 35km/h. Well-engineered 7 speed 28T chain ring and 11-32 cassette Shimano transmission helps you overcome up to 25% grade when climbing a hill on gear 1 or 40km/h speed on last with gentle pedaling.

COMFORTABLE CUSHION TIRES

The 20′′x2.35" tires are cushion enough to increase riding comfort, dynamic maneuverability, and handling in a variety of terrains. Tires are fat and knobby enough to provide excellent traction on wet cement, asphalt, dirt, or gravel trails while producing minimal noise and drag on routine urban surface rides.

TELESCOPIC FOLDABLE HANDLEBAR STEM

When folded, the telescopic adjustable height and QR detachable handlebar provide the optimum compactness without affecting the ergonomic riding position.

HEADLIGHT & TAILLIGHT

The ENVO Lynx is fitted with high efficiency and bright LED 40 LUX headlight powered by the main battery and controlled by a keypad on the handlebar. Taillight and reflector provide more safety riding in the dark. It powers up once the headlight is switched on.

FRONT & REAR CARRIER RACK

More Cargo and Box space with the 2 racks on the frame.

ELECTRIC CUT-OFF BRAKES

For added safety, top-tier 160mm disc brakes include electronic cut-off sensors.

  • EBIKE SPECIFICATIONS



    Weight:
    21KG

    Battery:
    36V 12.8Ah/Panasonic

    Motor:
    Geared hub motor, 500W, 60 Nm torque

    Controller:
    5 levels of assist + Thumb throttle

    Frame:
    Custom Drawn T6-Aluminum Foldable e-bike

    Tires:
    City 20″ x2.35″

    Cassette/Freewheel:
    11-28, 7-Speed Freewheel

    Seat post:
    50mm Battery container telescopic adjustable

    Stem:
    QR folding, with telescopic height adjustment

    Brake Levers:
    3-Finger

    Brake Levers:
    3-Finger with cut-off switch

    Brakes:
    Mechanical Disk-Brake

    Color:
    Black, Light Blue, Red

    Unfolded dimensions:
    168 x 59 x 112 cm (66″ x 23″ x 44″)

    Folded dimensions:
    93 x 48 x 70 cm (37″ x 19″ x 28″)

    Charger:
    CC-CV 42V 2A

    Max power:
    500W

    Max Speed:
    32 km/h

    Range per single charge (average):
    70 km

    Max Torque:
    60 Nm

    Available Options:

    Black
    Blue
    Red


  • SIZING CHART



    The top tube of the bicycle and the ground plane: 22″ (55.84 cm)

    Note: This is a non-traditional bike so minimum leg length does not necessarily guide the bike sizing. We suggest minimum height of the rider to be 5 feet and maximum height to be 6’2’’

  • FAQ



    Ordering questions

    Technical and Installation

      Electric Bikes

        • All you ever wanted to know about eBikes is right here! – Electric Bikes

        eBike Frequently Asked Questions

          Installation & Repairs

            • We have many replacement parts for direct or geared hub motors as well as mid-drive motors; however, before replacement, you should consider how much it will cost. Read more here!

            Technology

              Technical Questions & Answers

              Assembly Instructions & Unboxing



            • MANUALS



                English
                        French

                            Customer Reviews

                            Based on 28 reviews
                            82%
                            (23)
                            18%
                            (5)
                            0%
                            (0)
                            0%
                            (0)
                            0%
                            (0)
                            K
                            Keith

                            Love this bike. Lightweight and very easy to handle.

                            M
                            Mitch Bailey
                            Game Changer

                            My partner and I each have a Lynx 20". We pack them in the bed of the truck for camping trips or stuff them into our older Rav4 to hit the trails. We have also gone island hopping on BC Ferries as it is free to take them.
                            My only desire is that it would be great if it had shocks on the front forks for a smoother ride. Would the forks on the FLEX model fit???

                            K
                            Ken Roberton
                            So far, so good!

                            I've only gone out on a couple of test rides, but so far the Lynx 20 has surpassed my expectations. Easy to setup (I bought a demo model with superficial blemishes) the bike itself rides like a dream. The battery charged up fairly quickly, and since I had operating experience after purchasing a Lynx 16, was familiar with the way the bike works. The powerful rear motor is fairly quiet, delivering ample torque, and I found the seat and handlebars to be comfy. The bike rides high, and I'm used to mounting bicycles that are not step through. Takes a bit of getting used to :-). [4 stars instead of 5 because no-one listens to 5 stars :-)] Oh, and the staff at EBike BC are super nice and reactive when there are questions. BTW Canpar delivers broken boxes, so be careful...I'm in Montreal, and the delivery box had a huge hole in the end...and I ended up with a missing cover bag. Ebike BC told me they'd send me a replacement - FAB!

                            E
                            Eugene

                            its a very good commuter ebike..

                            C
                            Cliff McGrath
                            Lynx 20" folding bike

                            A very versatile and convenient bike, the pedal assist is a life saver for the hills. Looking forward to using it on our trip this summer.

                            You may also like

                            Save $400.00

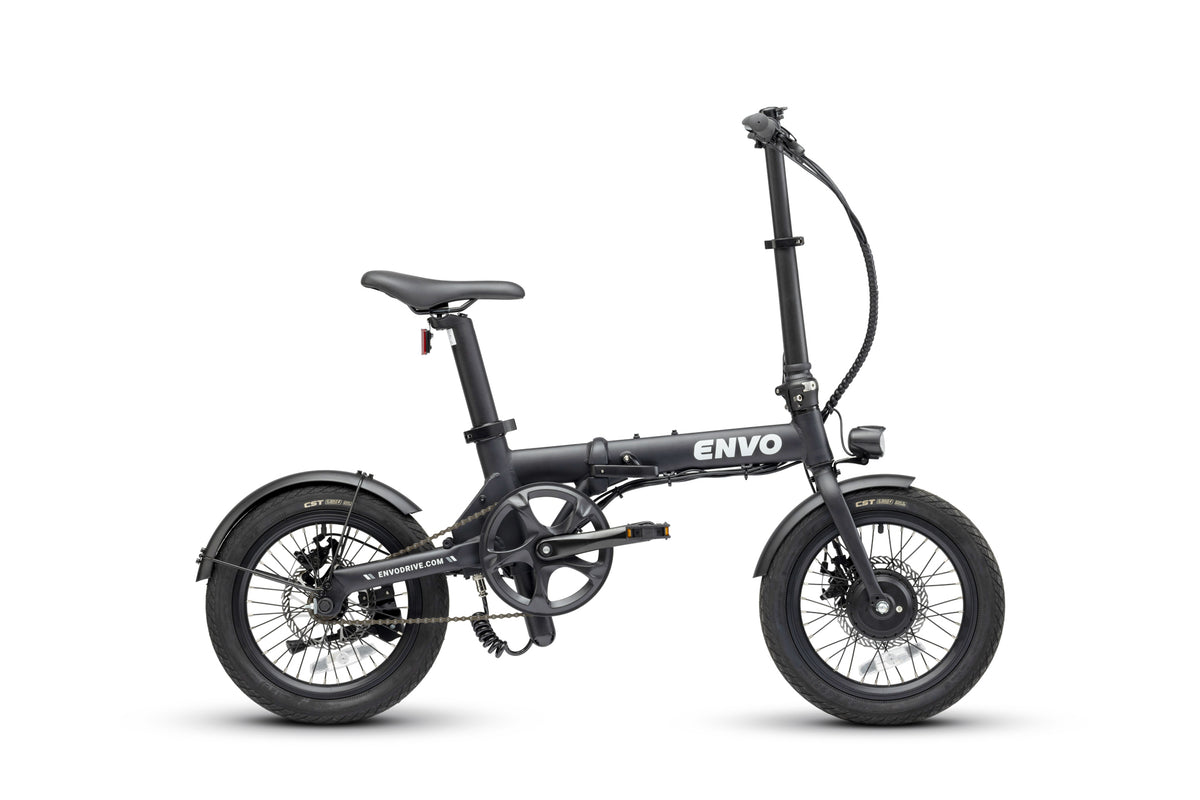

                            envo lynx 16 ebike side viewenvo lynx 16 electric bike front view
                            Lynx 16" - Black
                            Sale priceFrom $999.00 CAD Regular price$1,399.00 CAD
                            Fat tire electric bike - flex overlandFat tire electric bike - flex overland - front view
                            ENVO Flex Overland
                            Sale priceFrom $3,429.00 CAD
                            ENVO Flex UrbanENVO Flex Urban
                            ENVO Flex Urban
                            Sale priceFrom $2,799.00 CAD
                            Save $200.00
                            ENVO D35 Electric BikeENVO D35 Electric Bike

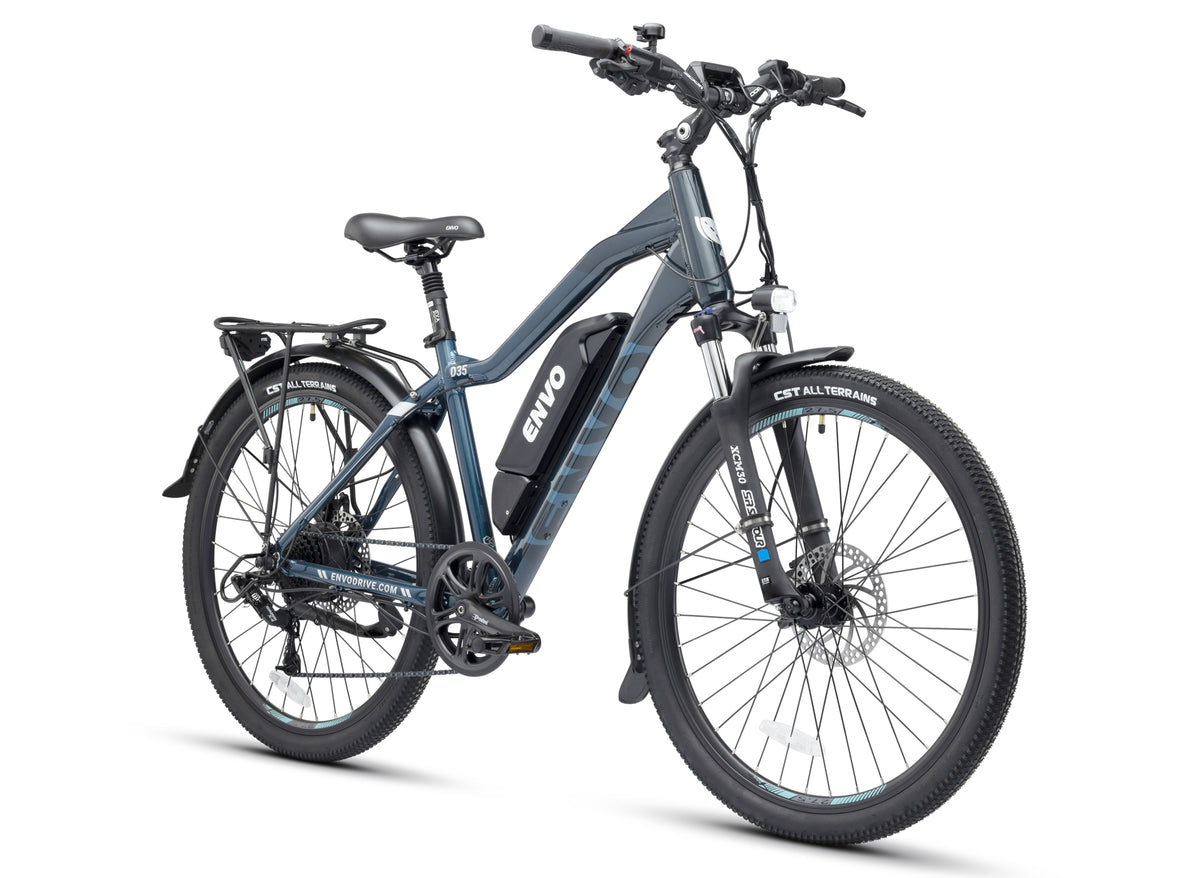

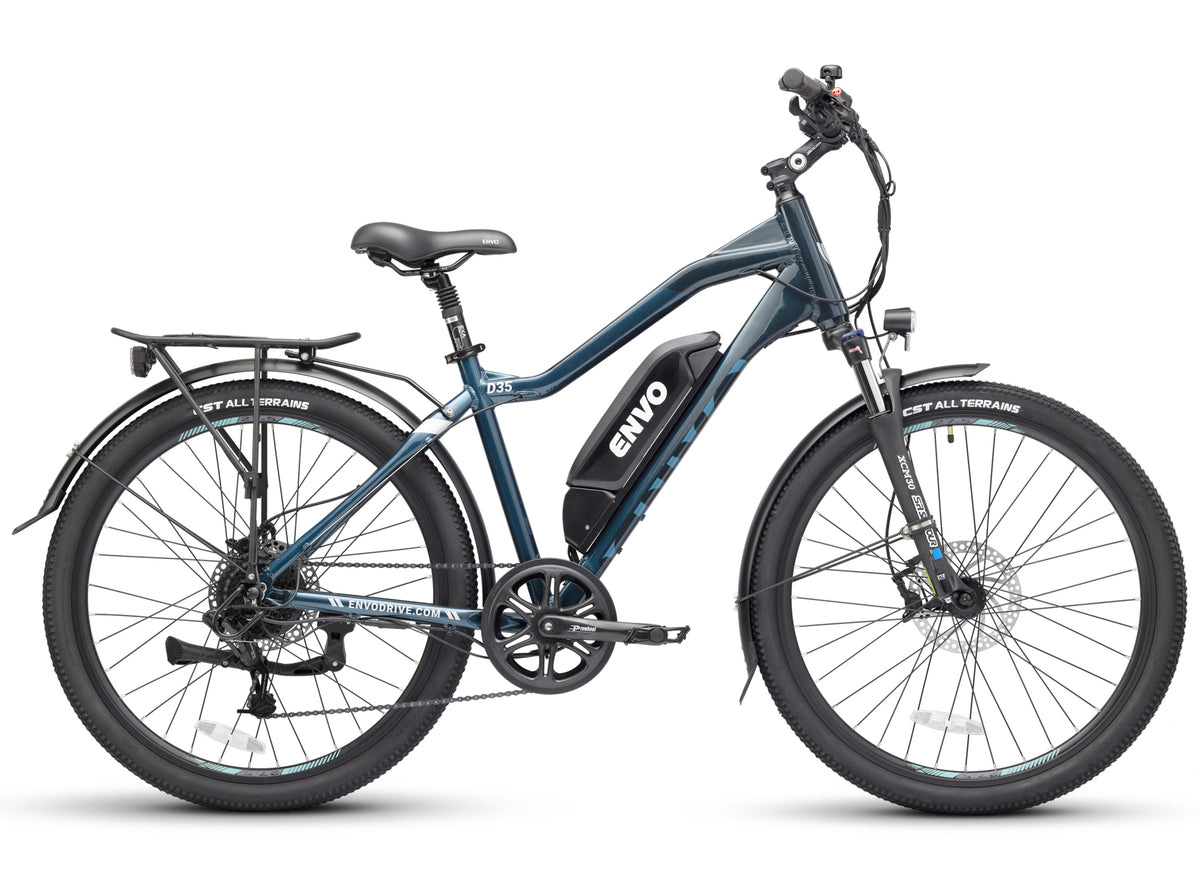

                            ENVO D35 Electric Bike
