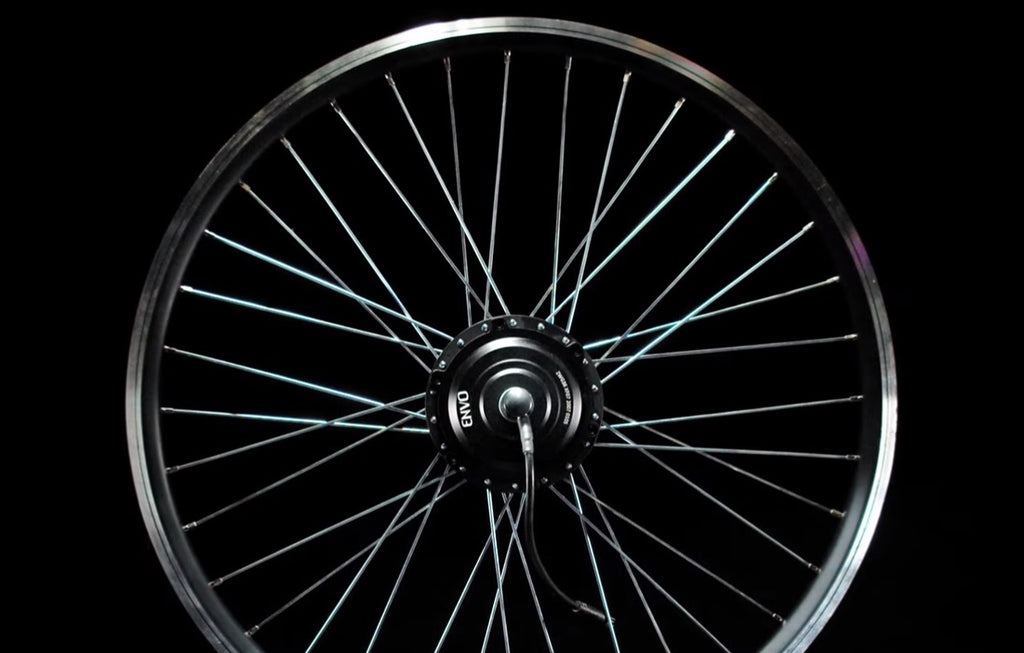

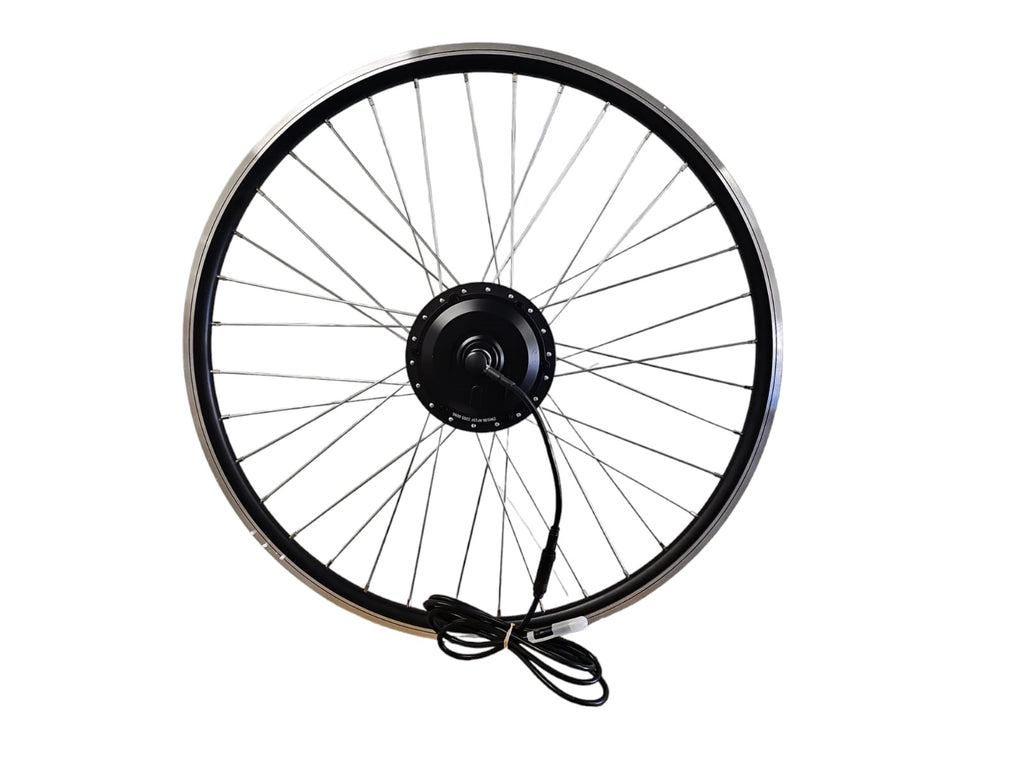

Front Hub Motor (500W)
Rim Size
Usually ready in 24 hours
Front Hub Motor (500W)
26''
Local Pickup
Pickup available, usually ready in 24 hours
1685 Ingleton Ave
Burnaby BC V5C 3V6
Canada
Available Rim Sizes:
- 20''
- 26''
- 27.5''
- 700C
- 29''
- 28''

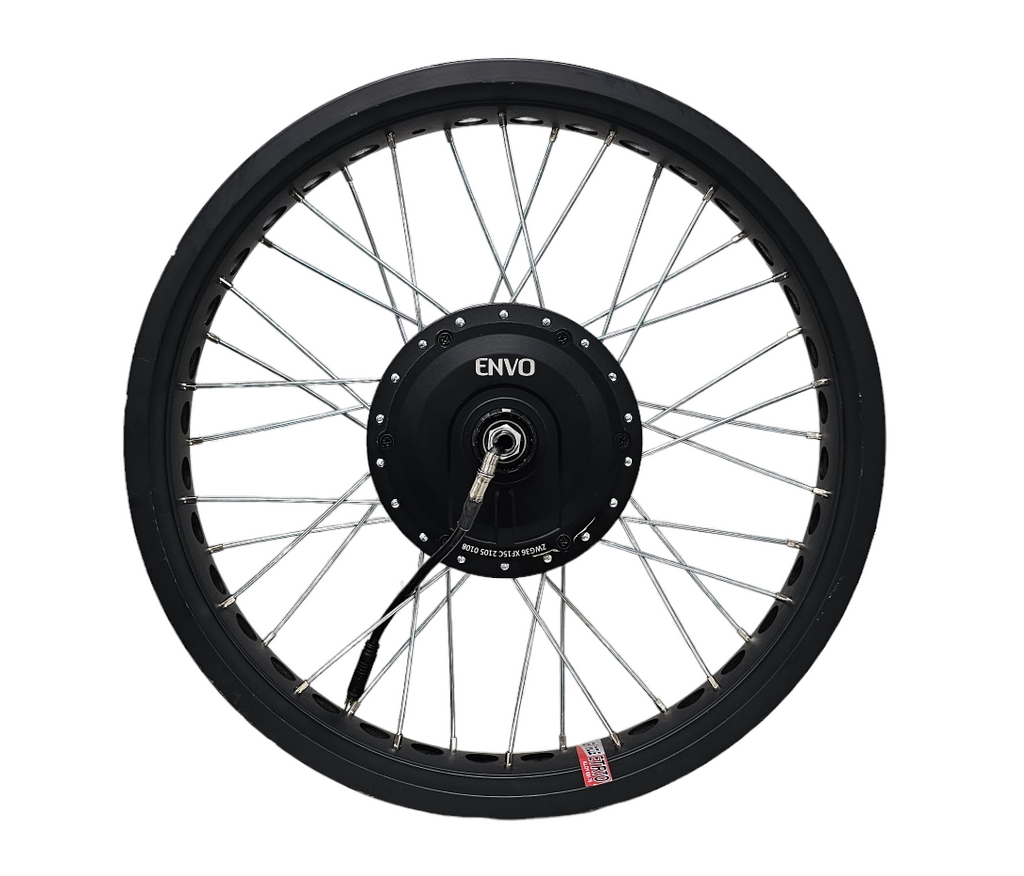

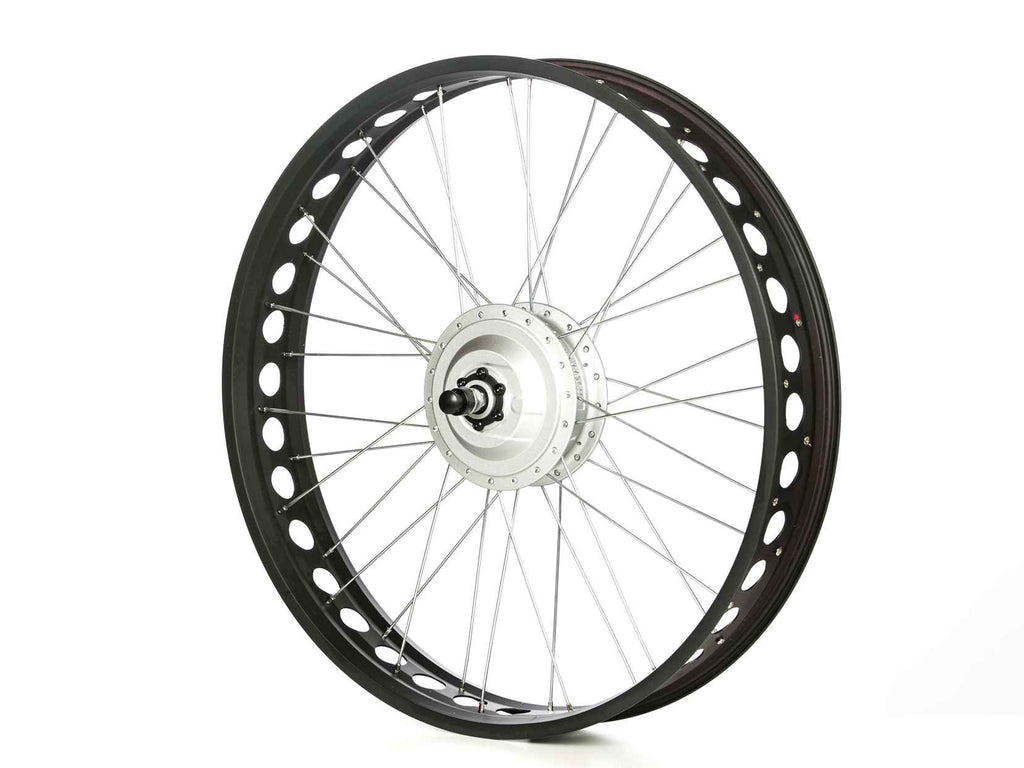

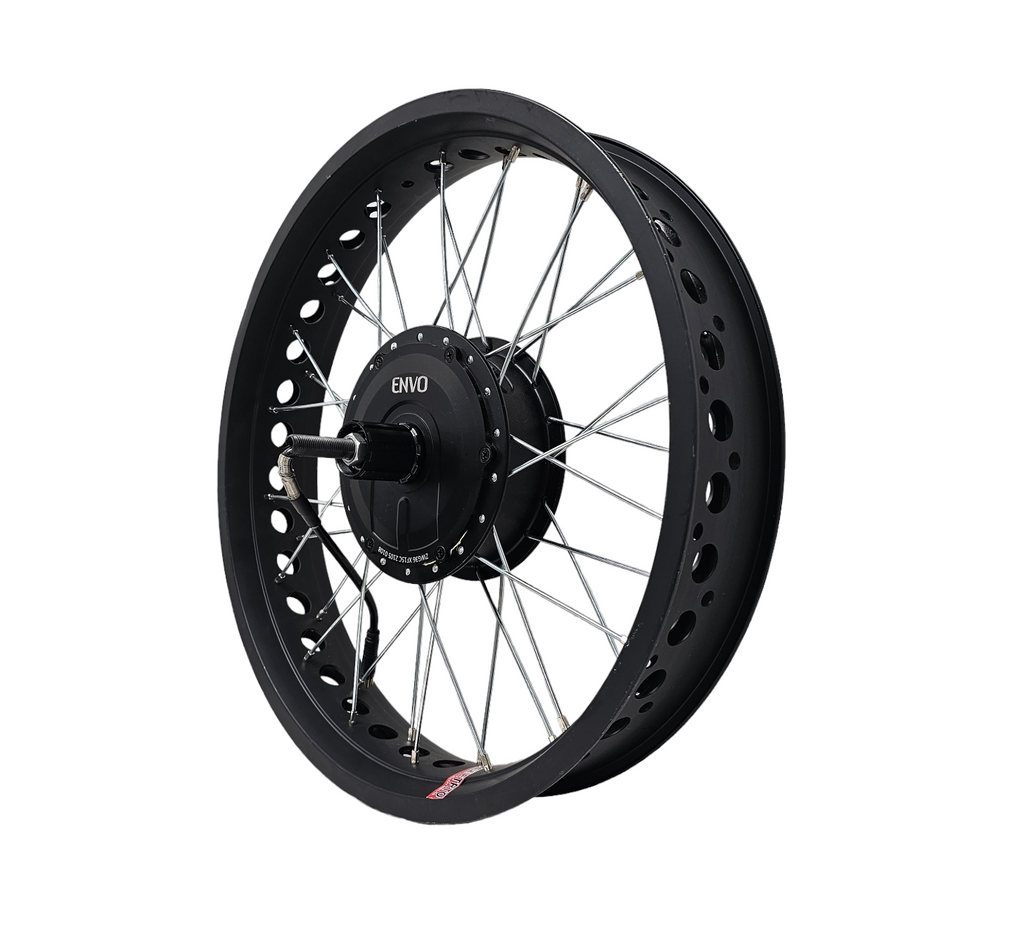

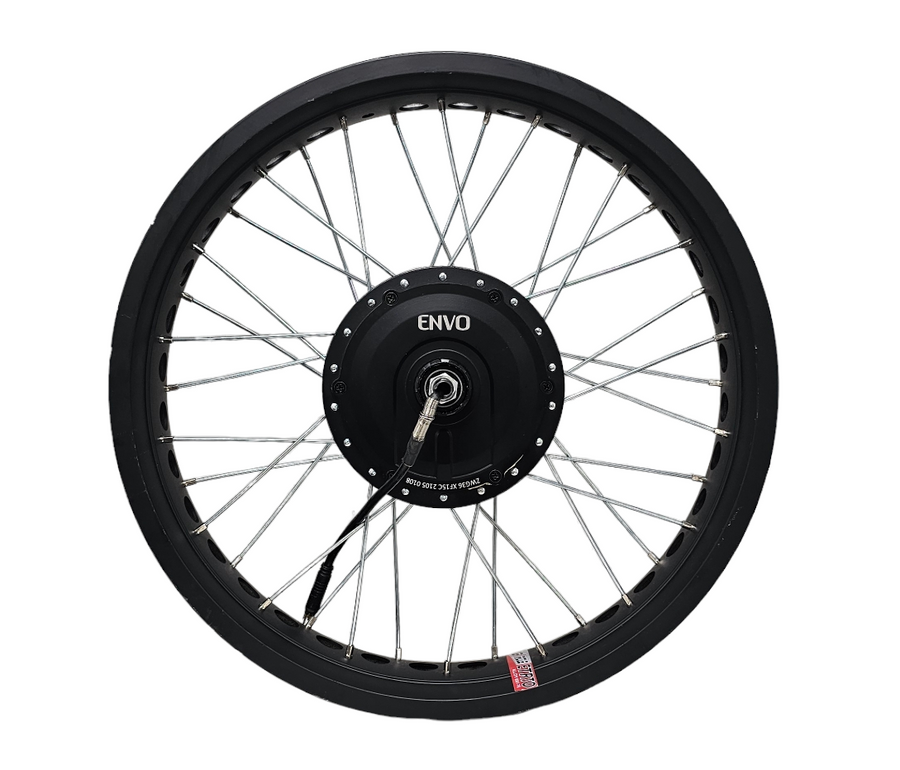

- 20'' - Fat
- 24'' - Fat
- 26'' - Fat

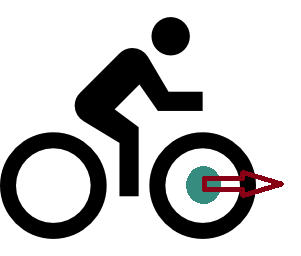

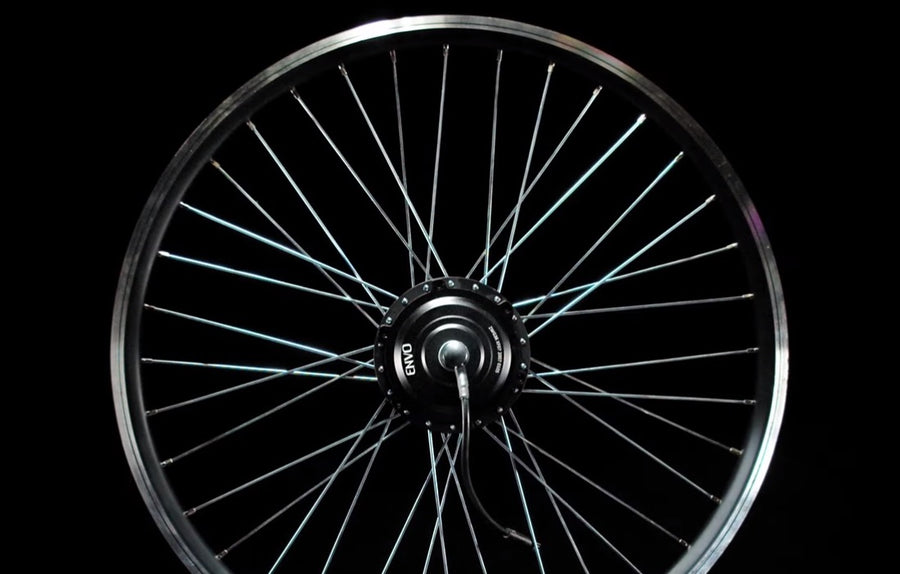

500W Nominal 750W Max Power, 40km/h (limited to 32km/h), front hub motor
--500W Nominal 750W Max Power, 40km/h (limited to 32km/h), front hub motor, small size with simple structure, light weight and long life, super power, high efficiency, beautiful, high speed motor with gear, drive is very free and fluent, best choice for Li-ion battery on e-bike for rough road, higher weights and higher grade-ability.

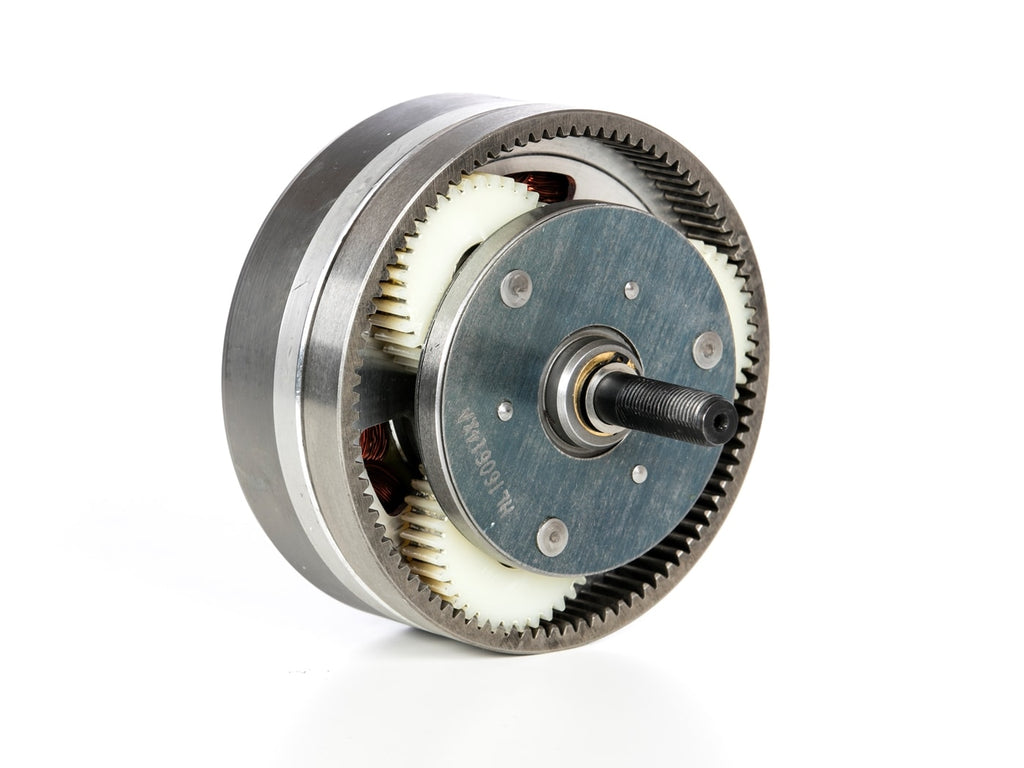

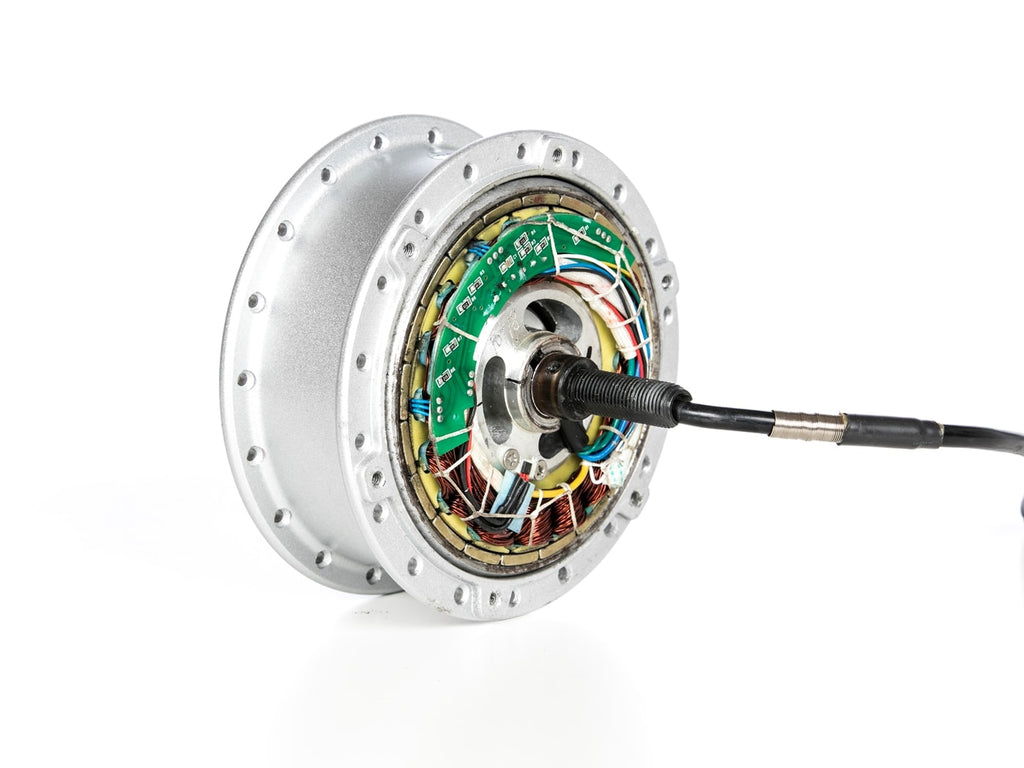

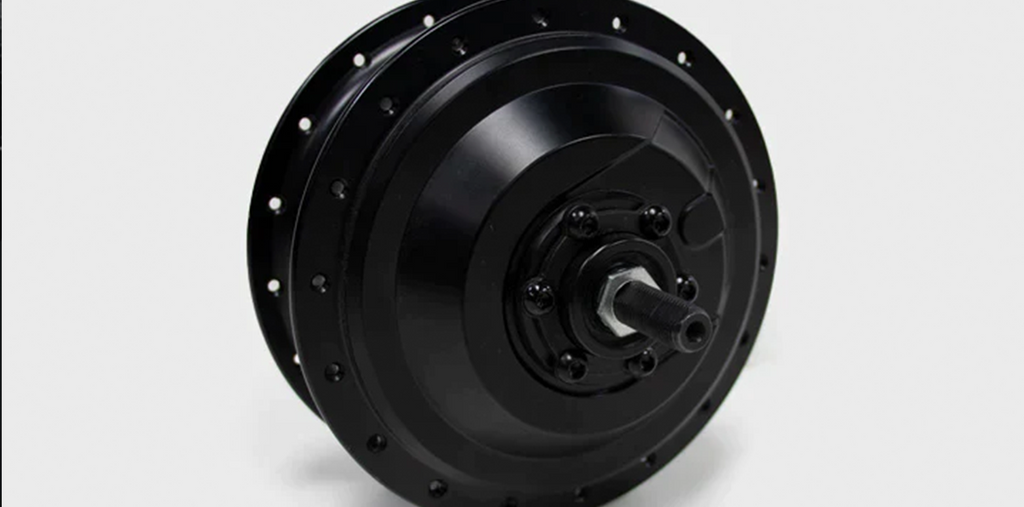

- Motor Type: DC Brushless Geared Hub Motor
- Motor Power: 750/500W Max/Nominal
- Voltage: 36V
- Max Torque: 80Nm @20A
- Efficiency ≥80%
- 36 Spokes
- Flange for disc brake
- Waterproof connector

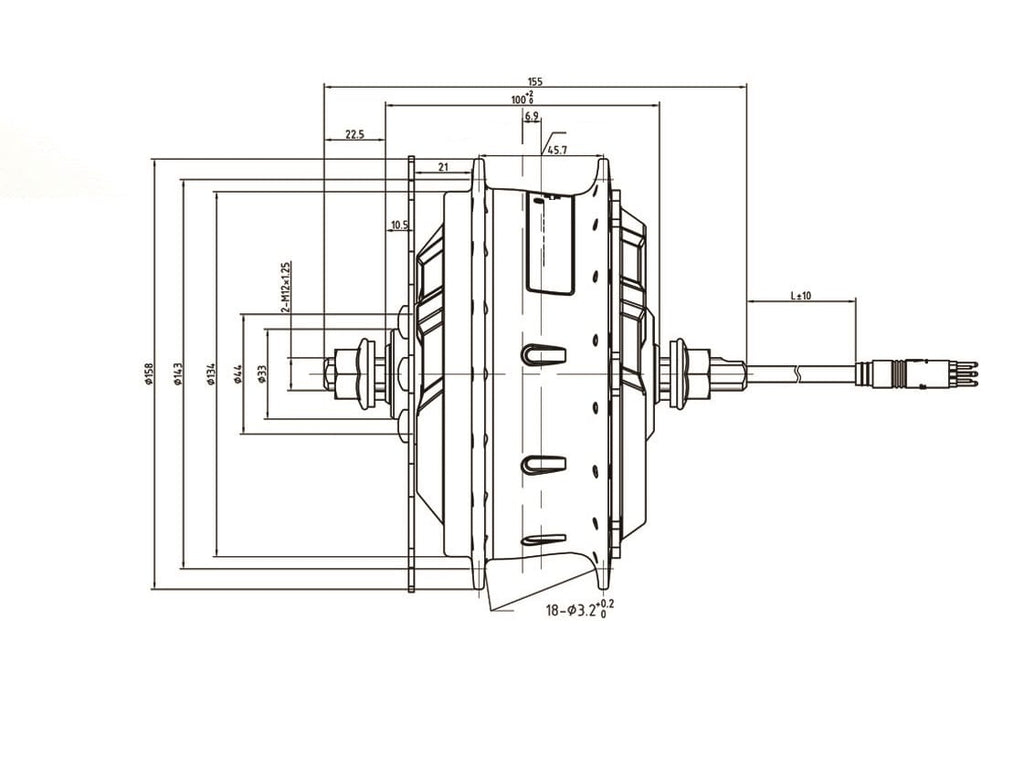

- Axle=100mm, Diameter=158mm.
- Weight=3.5kg
- Phase angle 120 degree
- Manufacturer: MXUS
- Waterproof and protection grade: IP54
- Noise level 55dB
- CE, EN15194 certifications
Material:
- Wheel, A356 Aluminum
- Magnet, 38SH
- Wire(winding), QZ-3/155
- Iron core, DW470
- Bearing, C&U
