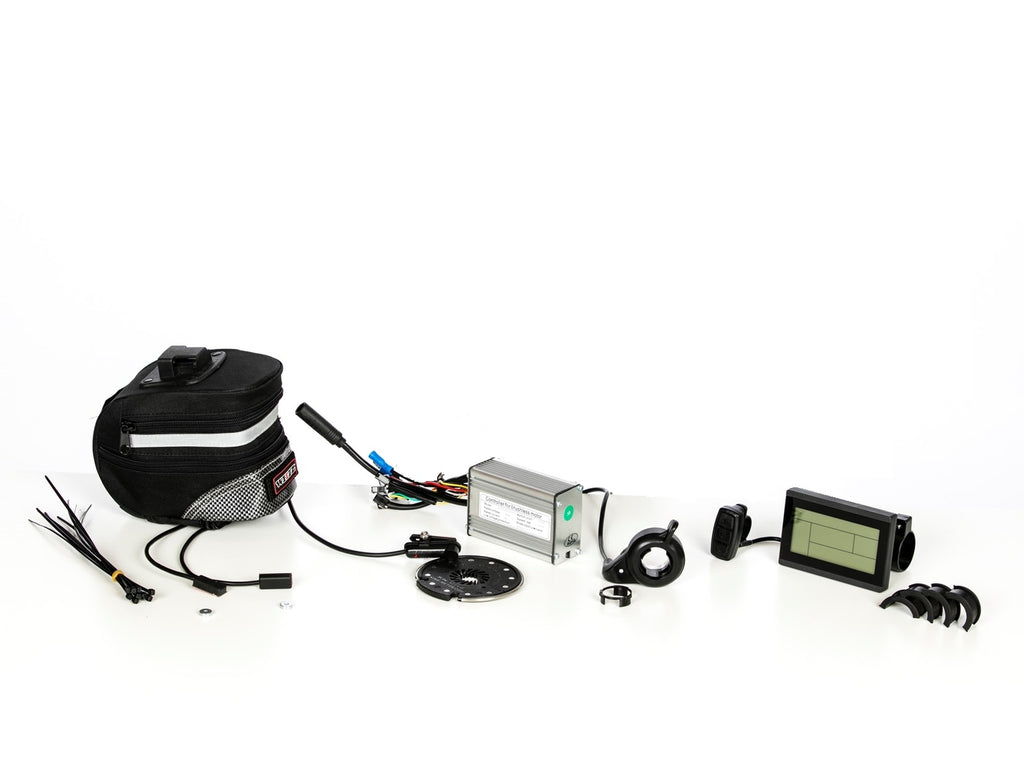

LCD3 20A Controller System

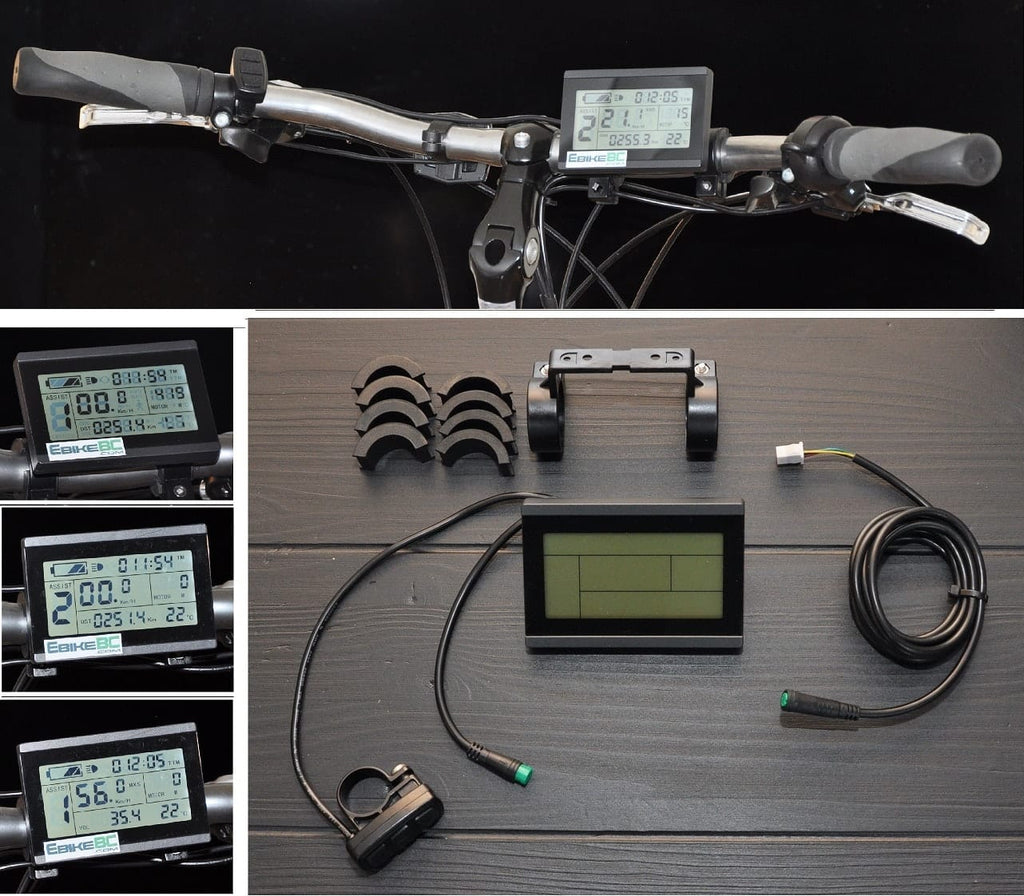

• LCD display and computer,


• Motor Controller 36V 20A,

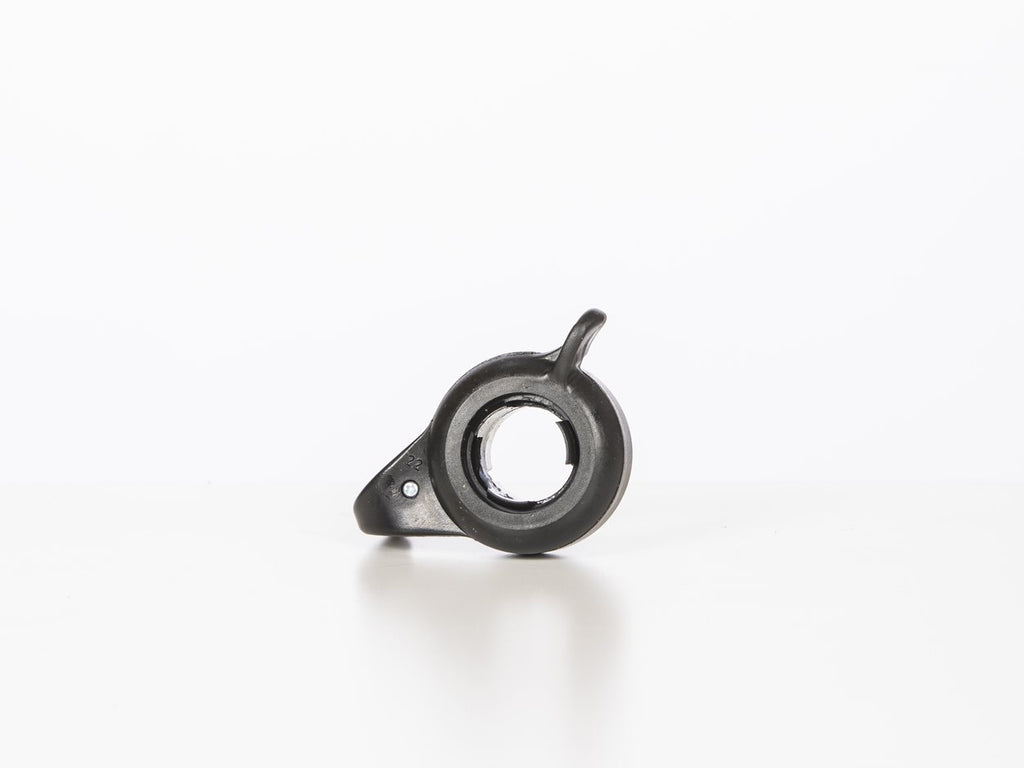

• Thumb Throttle,


• Pedal Assist Sensor,


• Brake cut-off magnetic switches,

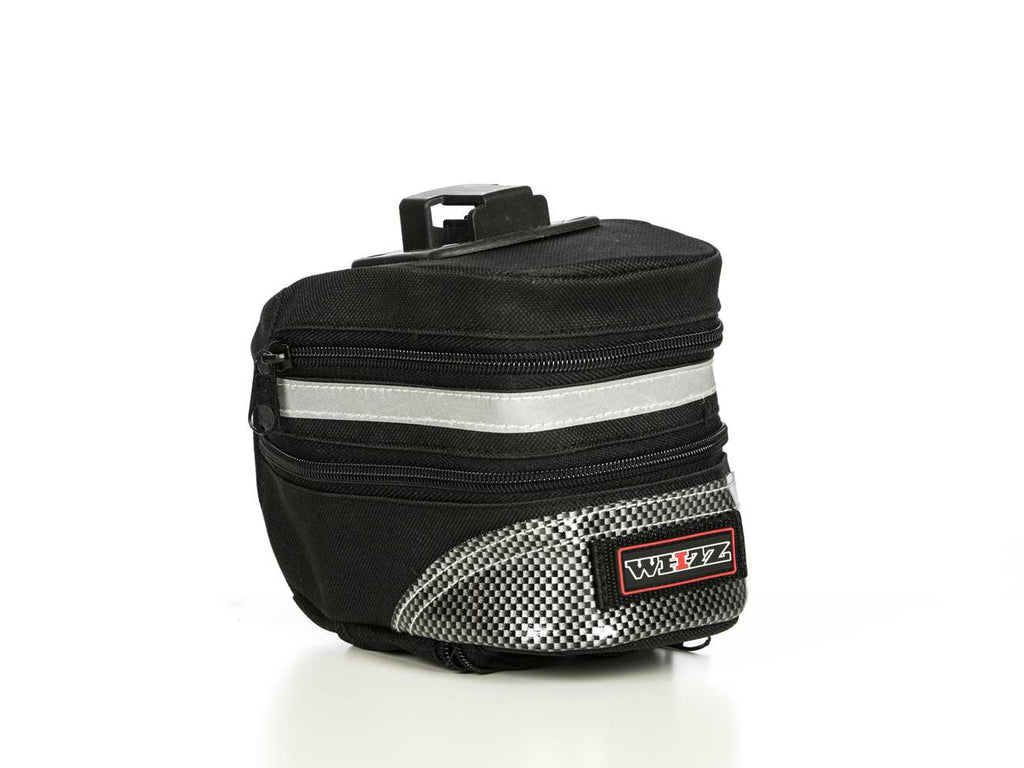

• Rain proof Controller and tools bag,


• Zip ties, cable shield and installation accessories

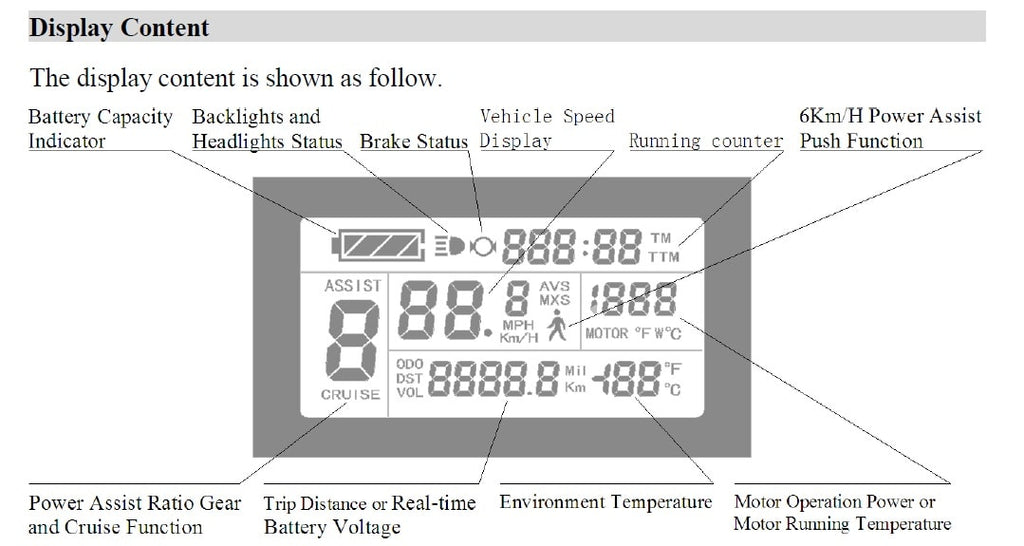

Interface:

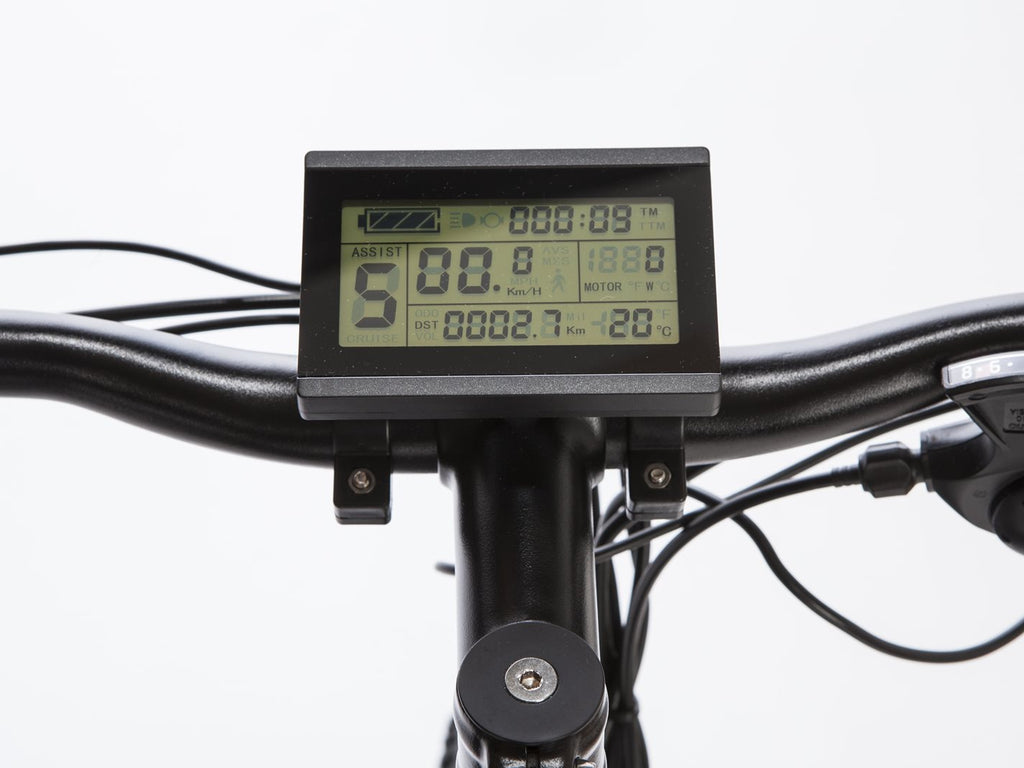

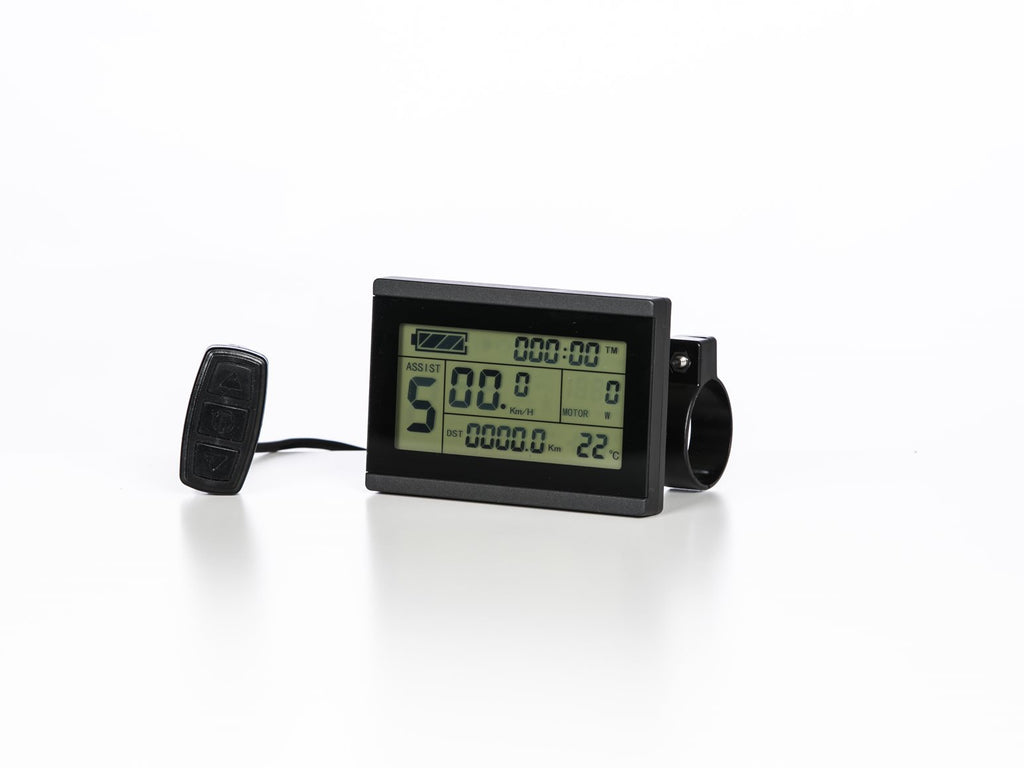

• LCD3 meter provide you with a variety of functions such as vehicle controls and vehicle status digitized displays to meet the trip demands.


• Pedal Assist System (PAS) optimized to simulate the torque sensor. This computing system provides Speed limit PAS or Torque limit PAS levels from 0 to 5.


• Trip time display (with displays of a single trip time (TM) and total trip time (TTM));


• Trip speed display (with displays of real-time speed (Km/H or MPH) and a single maximum speed (MXS) and a single average speed (AVS));


• Trip distance display (with displays of a single trip distance (DST) and total trip distance (ODO));


• Display of turned on handlebar;


• Display of power-assist startup;


• Power assistant ratio (or handlebar) gear (ASSIST) switch;


• 6Km/H power assistant push function;


• Cruise function (CRUISE);


• Battery capacity indicator;


• Real-time battery voltage (VOL) display;


• Motor power and temperature (MOTOR) display;


• Brake display;


• Turn on backlighting and lights ;


• Environment temperature display;


• Data clearing;


• Fault code display;


• User parameter setting

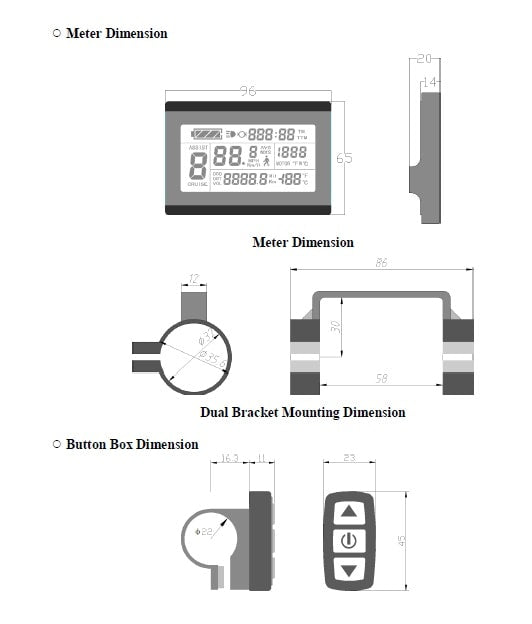

• 5' large screen

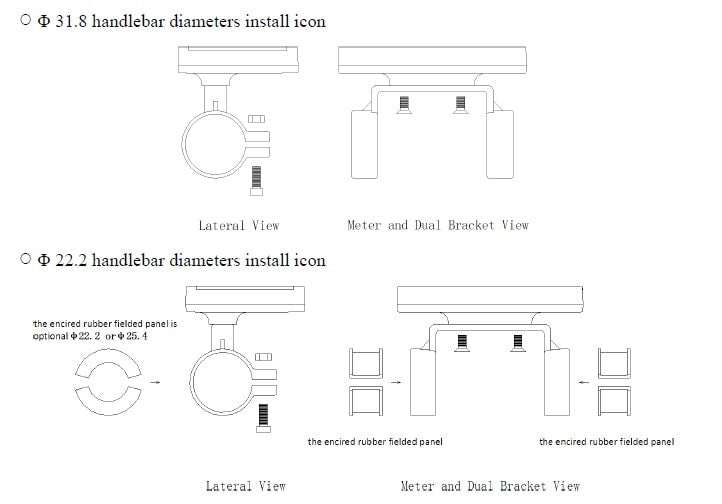

• Rubber clamp spacer is provided for 3 handlebar bore sizes: 22.5mm, 25.4mm, 31.5mm


• easy key button, easy control,


• waterproof housing with good appearance

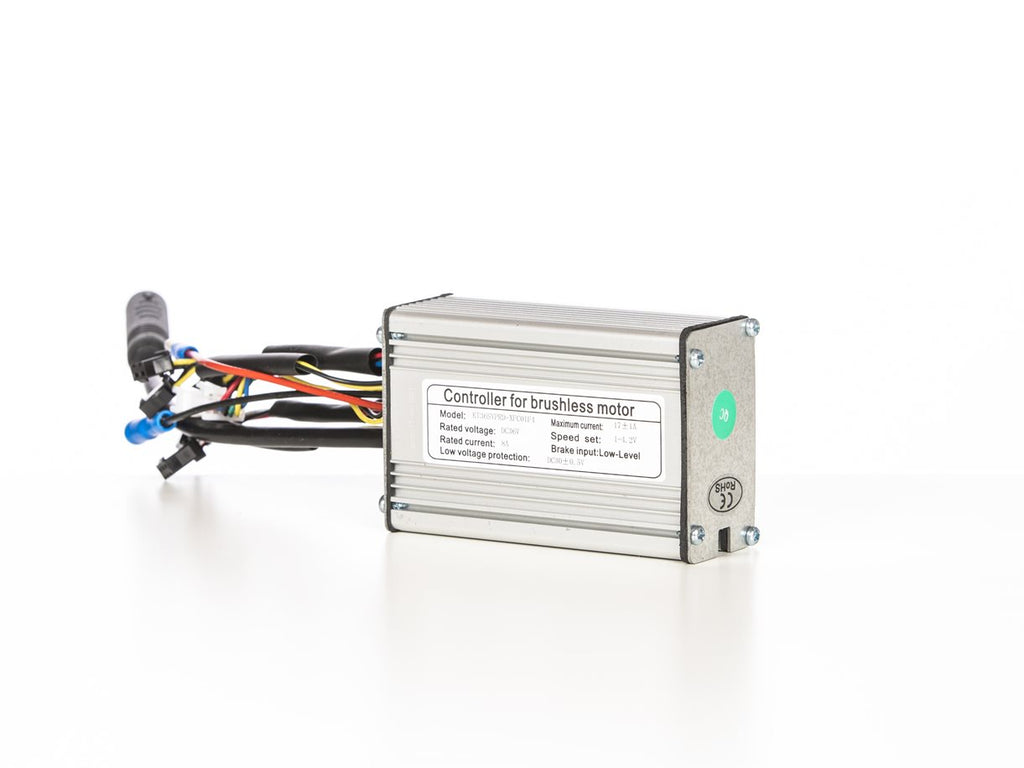

Motor Controller:

• Brushless Motor Controller


• Voltage: 36V


• Min Voltage: 30+-0.5V


• Max Current: 20+-1A


• Speed Set: 1-4.2V


• Angle: 120


• Brake Input: Low-Level

• Haul effect sensor, Analogue linear increasing torque

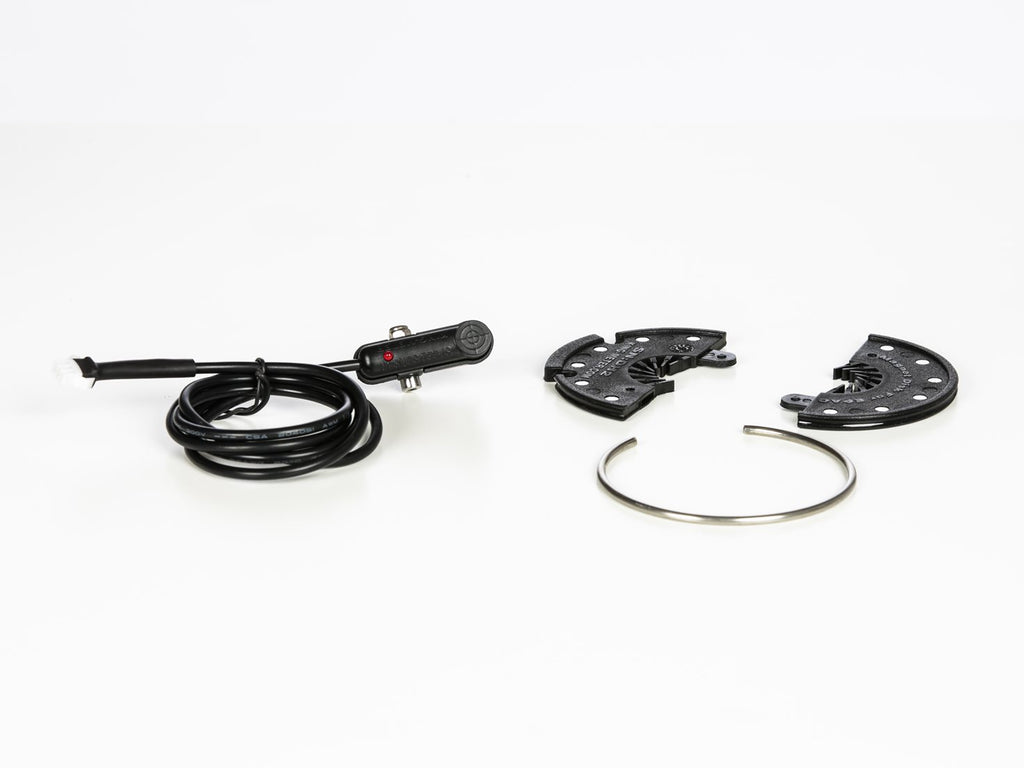

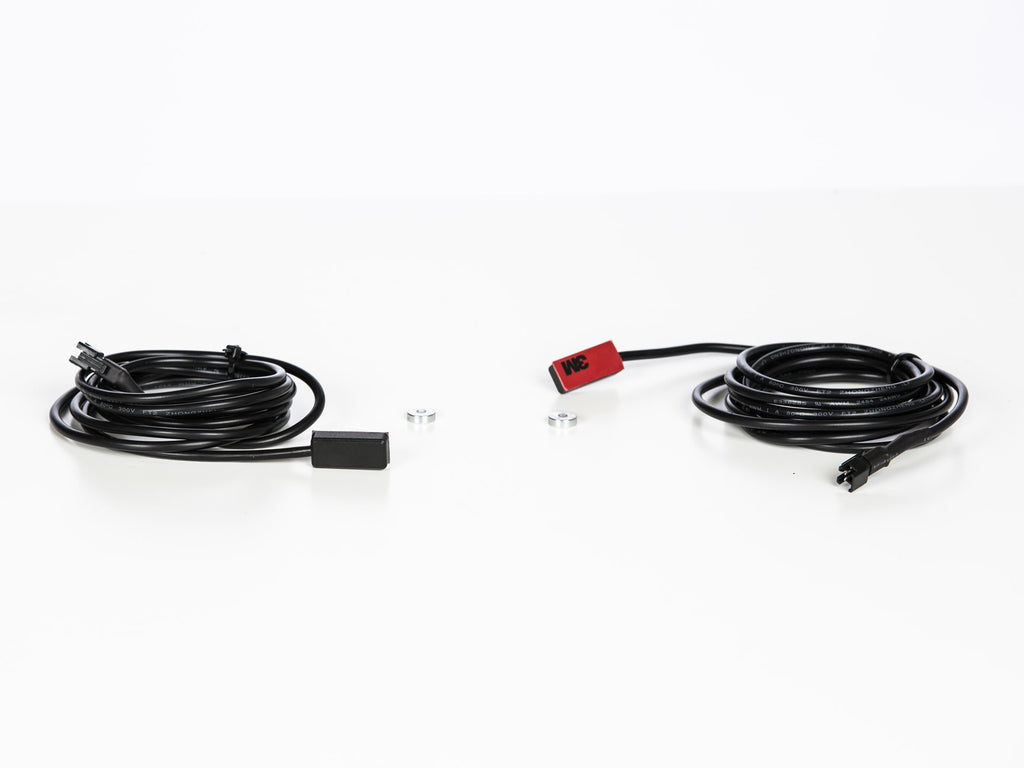

• 2 pieces 12 Magnet easy assemble Pedal Assist Sensor,


• Just stick the sensor, no need to disassemble the crank.


• this sensor is compatible with optimized PAS controlling systems and provide the best pedal assist performance, rapid response and torque sensor simulation.

• Just stick the magnet sensors, no need to disassemble the brake levers.


• it cuts-off the motor when you brake
