S75 Complete Conversion Kit (Max 1200W, 120Nm)
S75 Complete Conversion Kit (Max 1200W, 120Nm)
S75 Complete Conversion Kit (Max 1200W, 120Nm)
S75 Complete Conversion Kit (Max 1200W, 120Nm)
S75 Complete Conversion Kit (Max 1200W, 120Nm)
S75 Complete Conversion Kit (Max 1200W, 120Nm)
S75 Complete Conversion Kit (Max 1200W, 120Nm)
S75 Complete Conversion Kit (Max 1200W, 120Nm)
S75 Complete Conversion Kit (Max 1200W, 120Nm)

Deal Active For You

S75 Complete Conversion Kit (Max 1200W, 120Nm)

Sale price$854.00 CAD Regular price$1,700.00 CAD
Save $846.00
Battery
Wheel
  • Small and Compact
  • Universal fit - installs easily on most bicycles
  • Range upto 100km

Size Chart

Size Chart

What are the Possibilities?

750W

Rated Power

1200W

Max Power

120Nm

Torque

100km

Max Range

Whats Included?

Long Range Battery

Long Range Battery

The ENVO Battery powering the conversion kit is a lizard style, super lightweight, down tube mounting Li-Ion pack in a stylish thin ABS case with auto-connect socket, with a charge indicator, security lock and accessories. The battery is removable and can reach a range of up to 100 km / 62 miles per charge on pedal assist level 1.

Controller System

Controller System

The controller comes with an optimized torque emulation software. The advanced torque emulating Pedal Assist Sensor (PAS) signals the controller to run the motor between 5 levels of pedal assist, providing a boost to your pedaling depending on the level of assistance you select while riding.

Pedal Assist Sensor

Pedal Assist Sensor

A pedal assist sensor is the brains behind your e-bike's motor activation. It detects your pedaling and tells the motor how much assistance to provide.

Motor Wheel

Motor Wheel

ENVO kit is equipped with a sealed, powerful, geared hub motor that offers 500W power and 60Nm torque. The bike is a street-legal bike with legalized speed, torque and power all over Canada and most parts of the US. Our motors are 50% lighter than all the rest powered geared hub motors in Canada, yet they deliver 50% more torque and 25% more battery efficiency. These ENVO motors are developed for over 20,000Km (12,500 miles) maintenance-free ride.

Charger

Charger

The included CC-CV smart Li-Ion battery charger is portable and UL certified for safety. You can charge the battery on or off the bike frame, giving you flexibility for your needs.

Throttle

Throttle

The ebike throttle is your on-demand power control. Twist it like a motorcycle grip to instantly adjust your electric assist level. The more you twist, the faster the motor kicks in, giving you effortless speed control.

Will it fit my bike?

Our conversion kit is designed to fit most bikes! To double-check compatibility, take a look at your bike's front/rear dropout (where the wheel attaches) and downtube (the main tube) to ensure there's space for the motor and battery.

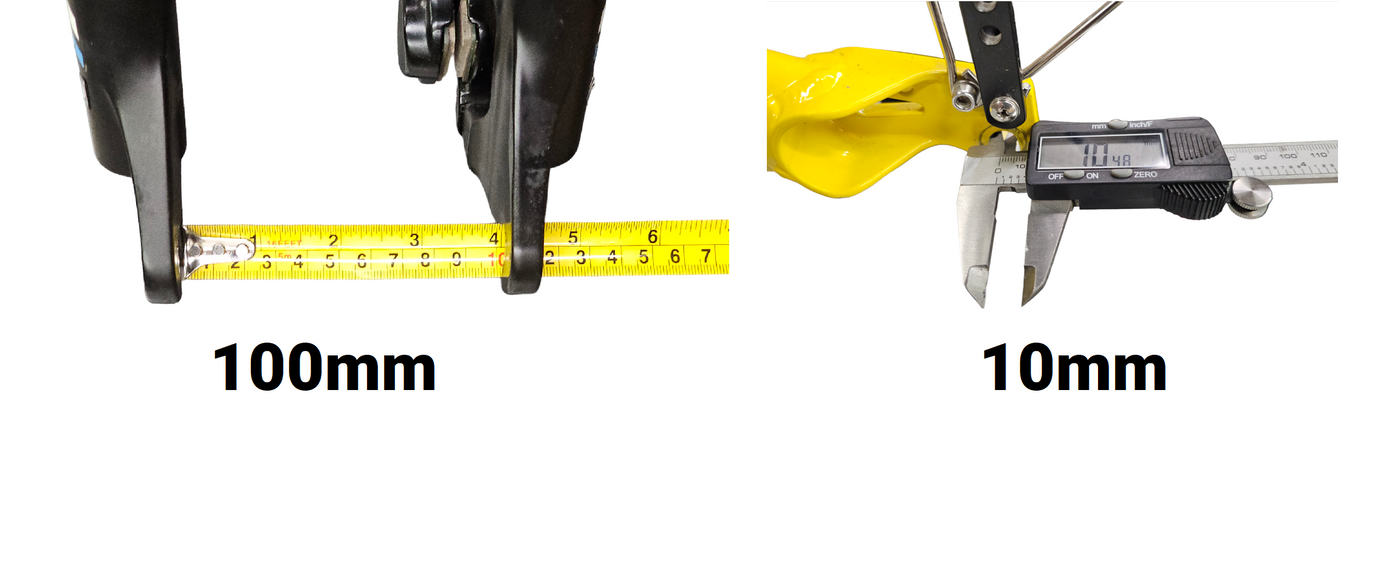

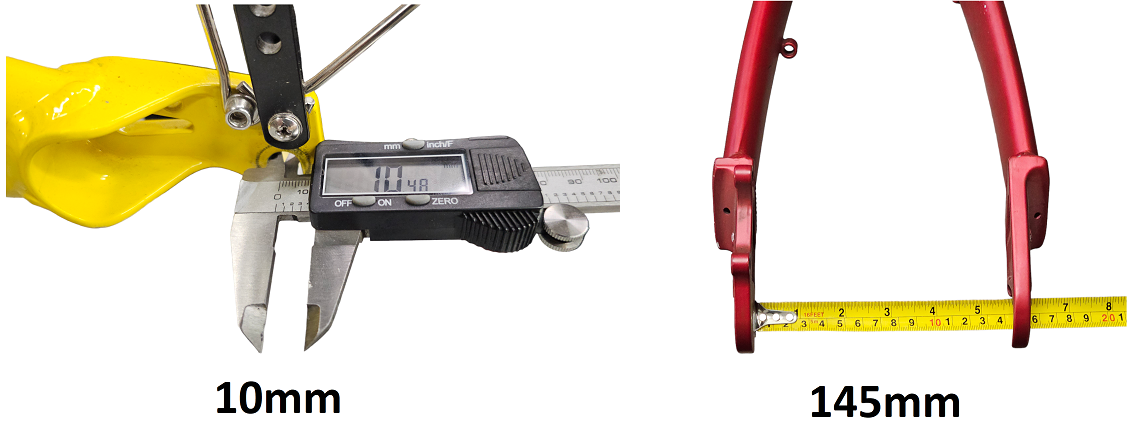

Front Hub

Measure the distance between front fork dropout. If it is around 100mm, ENVO Front Hub motor would fit.

Also check the dropout width, 10mm is the standard width.

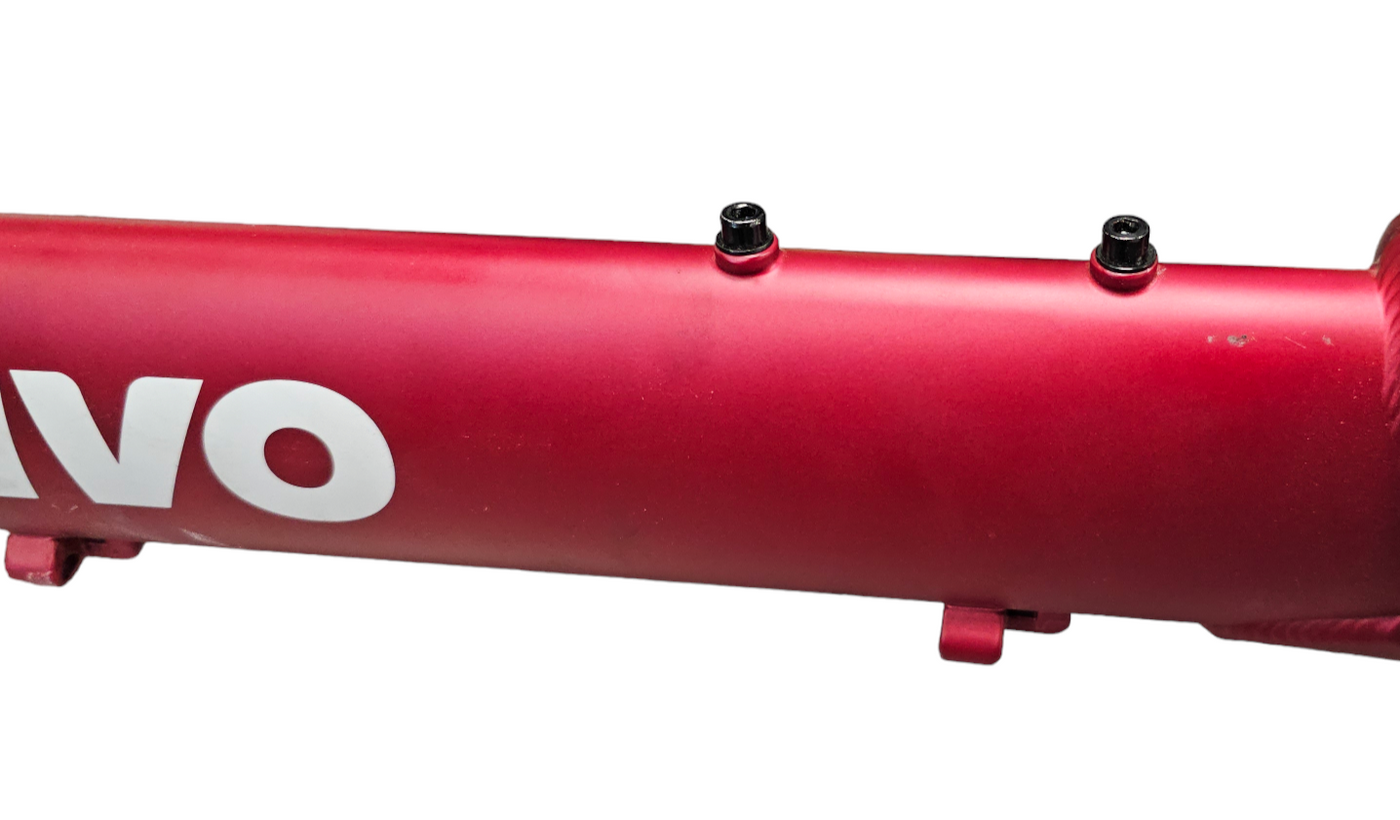

Bottle Cage Mount

Check your bike's frame for bottle cage mounts. If there are atleast 2 rivnuts you are good to go.

Why choose ENVO?

Customer Service

Have a question or need a helping hand? Our friendly customer service team is here for you! We have a team of experts available to answer your questions and provide support. Don't hesitate to reach out – we're happy to help!

Convert your favourite bike into an eBike!

Breathe new life into your beloved ride! Ever dream of cruising further and faster on your trusty steed? Converting your favorite bike to an e-bike is easier and more affordable than you think. Keep the classic frame you love and enjoy the exhilarating power of electric assist. Ride farther, conquer hills with ease, and rediscover the joy of cycling!

Perfect for special rides.

Enjoy cycling like never before with our selection of adult trikes, recumbent trikes, and adaptive bikes! Perfect for leisurely cruises, getting back on the road, or those who require extra stability, these trikes offer a comfortable and secure ride for everyone. Explore our diverse range and rediscover the joy of cycling.

Proudly Canadian

Discover the best in electric micromobility with ENVO, a Canadian company specializing in locally designed products providing you with convenience, affordability, and sustainability for all your needs.

  • Motor Specifications



    750W Nominal 1200W Max Power, 50km/h

    Front Hub Motor

    Available Rims

    27.5''



    48V 500W/750W Geared hub motor kitMotor weight 4kgMotor peak torque 100NmSuitable for utility or heavy duty bikesNot recommended for commuters or urban use

     Description:

    1200W of max power using 48V 25A controller, 50km/h, front hub motor, small size with simple structure, light weight and long life, super power, high efficiency, beautiful, high speed motor with gear, drive is very free and fluent, best choice for Li-ion battery on e-bike for rough road, higher weights and higher grade-ability.

    •  Motor Type: DC Brushless Geared Hub Motor
    • Motor Power: 750W
    • Voltage: 48V
    • Max Torque: 125Nm @25A
    • Efficiency ≥80%
    • 36 Spokes
    • Flange for disc brake
    • Waterproof connector
    • Axle=100mm, Diameter=177mm.
    • Weight=4kg
    • Phase angle 120 degree
    • Manufacturer: MXUS
    • Waterproof and protection grade: IP54
    • Noise level 55dB
    • CE, EN15194 certifications

    Material:

      • Wheel, A356 Aluminum
      • Magnet, 38SH
      • Wire(winding), QZ-3/155
      • Iron core, DW470
      • Bearing, C&U

    Rear Hub Motor

    Available Rims

    • 26''
    • 27.5''
    • 29''
    • 700C



    48V 500W/750W Rear Geared hub motor kitMotor weight 4kgMotor peak torque 100NmSuitable for utility or heavy duty bikesNot recommended for commuters or urban use



    Description:

    1200W of max power using 48V 25A controller, 50km/h, rear hub motor, small size with simple structure, light weight and long life, super power, high efficiency, beautiful, high speed motor with gear, drive is very free and fluent, best choice for Li-ion battery on e-bike for rough road, higher weights and higher grade-ability.

    • Only accepts cassettes
    •  Motor Type: DC Brushless Geared Hub Motor
    • Motor Power: 750W
    • Voltage: 48V
    • Max Torque: 125Nm @25A
    • Efficiency ≥80%
    • 36 Spokes
    • Flange for disc brake
    • Waterproof connector
    • Axle=135mm, Diameter=177mm.
    • Weight=4kg
    • Phase angle 120 degree
    • Manufacturer: MXUS
    • Waterproof and protection grade: IP54
    • Noise level 55dB
    • CE, EN15194 certifications
    Material:
    • Wheel, A356 Aluminum
    • Magnet, 38SH
    • Wire(winding), QZ-3/155
    • Iron core, DW470
    • Bearing, C&U

  • Battery Specifications

    Lizard style ENVO Li-Ion battery pack in stylish thin ABS case with auto connect socket, with charge indicator, security lock and accessories.

    Lizard Battery 48V 17.5Ah

    Lizard style down tube mounting Li-Ion pack in stylish thin ABS case with auto connect socket, with charge indicator, security lock and accessories.

    The Lizard battery is a battery you can mount on bike’s frame 2 water bottle bolt mount. This is the thinnest battery case for suspension frames or small size frames. Check the bicycle frame down tube geometry then select.  The battery can be locked to its support or un-lock and slide out to remove.

      • Li-Ion 48V  17.5Ah
      • Energy : 840Wh
      • Max Power: 1700W
      • Standard recharge time 8 hours

    Battery Pack Specification:

      • PVC covered 18650Cells and BMS pack
      • SANYO GA 3500
      • Charging Model CC/CV
      • Charge Temperature 0-45°C
      • Discharge Temperature -20-55°C
      • Charger Voltage: 54.6V
      • 4.5kg
      • Dimensions 370 x 110 x 90 mm



      Rack Battery 48V 12.8Ah



      Rack style Li-Ion pack in stylish thin alloy case with auto connect socket, with charge indicator, security lock and accessories.

      The rack battery is a battery you can mount on bike’s rack.  The battery can be locked to its support or un-lock and slide out to remove. The rack is not included. can be purchased here: https://ebikebc.com/product/rack-for-battery/

        • Li-Ion 48V  12.8Ah
        • Energy : 615Wh
        • Max Power: 1500W
        • Standard recharge time 7 hours

      Battery Pack Specification:

        • PVC covered 18650Cells and BMS pack
        • LG MH1 3200 mAh 10A Cells
        • Charging Model CC/CV
        • Charge Temperature 0-45°C
        • Discharge Temperature -20-55°C
        • Charger Voltage: 54.6V
        • 4.5kg
      • Dimensions 370 x 110 x 90 mm

    • Controller Specifications



      LCD3 48V 25A Controller System

        • LCD display and computer,
        • Motor Controller 48V 25A,
        • Thumb Throttle,
        • Pedal Assist Sensor,
        • Brake cut-off magnetic switches,
        • Rain proof Controller and tools bag,
        • Zip ties, cable shield and installation accessories

      Interface:

        • LCD3 meter provide you with a variety of functions such as vehicle controls and vehicle status digitized displays to meet the trip demands.
        • Pedal Assist System (PAS) optimized to simulate the torque sensor. This computing system provides Speed limit PAS or Torque limit PAS levels from 0 to 5.
        • Trip time display (with displays of a single trip time (TM) and total trip time (TTM));
        • Trip speed display (with displays of real-time speed (Km/H or MPH) and a single maximum speed (MXS) and a single average speed (AVS));
        • Trip distance display (with displays of a single trip distance (DST) and total trip distance (ODO));
        • Display of turned on handlebar;
        • Display of power-assist startup;
        • Power assistant ratio (or handlebar) gear (ASSIST) switch;
        • 6Km/H power assistant push function;
        • Cruise function (CRUISE);
        • Battery capacity indicator;
        • Real-time battery voltage (VOL) display;
        • Motor power and temperature (MOTOR) display;
        • Brake display;
        • Turn on backlighting and lights ;
        • Environment temperature display;
        • Data clearing;
        • Fault code display;
        • User parameter setting
        • 5' large screen
        • Rubber clamp spacer is provided for 3 handlebar bore sizes: 22.5mm, 25.4mm, 31.5mm
        • easy key button, easy control,
        • waterproof housing with good appearance

      Motor Controller:

        • Brushless Motor Controller
        • Voltage: 48V
        • Min Voltage: 42+-0.5V
        • Max Current: 25+-1A
        • Speed Set: 1-4.2V
        • Angle: 120
        • Brake Input: Low-Level
      Thumb Throttle:
        • Haul effect sensor, Analogue linear increasing torque
      Pedal Assist Sensor
        • 2 pieces 12 Magnet easy assemble Pedal Assist Sensor,
        • Just stick the sensor, no need to disassemble the crank.
        • this sensor is compatible with optimized PAS controlling systems and provide the best pedal assist performance, rapid response and torque sensor simulation.
      Brake cut-off magnetic switches
        • Just stick the magnet sensors, no need to disassemble the brake levers.
        • it cuts-off the motor when you brake
      Rain proof Controller and tools bag.

    • Assembly Instructions and User Manual



      English
